Wondering what type/brand of a wood stove I have.

[Evalasvegas]

Good morning,

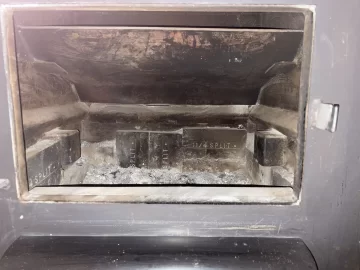

I've been in my house for about eight years, and have been using the wood stove every winter. Compared to other stove I have seen, this one is rather large. I have looked all over, inside and out, for a tag or stamp noting a Make or Model. However, I cannot find anything. Thus, I have come to you all to see if I have a standard wood stove or a custom made one.

Thanks in advance,



[begreen]

It might be custom made, though fancy. Is it connected to a full liner up the chimney or is there no connection and just a reliance on a tight seal at the surround? What is the trimon the front door for? Is there a window there? Where are the air controls?



[Eman85]

No idea on brand. I'd worry about the frt. hanging over your floor like that, I'm sure that's not approved.



[begreen]

Correct, there needs to be a proper hearth pad in front of the stove door.



[Evalasvegas]

It might be custom made, though fancy. Is it connected to a full liner up the chimney or is there no connection and just a reliance on a tight seal at the surround? What is the trimon the front door for? Is there a window there? Where are the air controls?

Relies on a tight seal. There is a gasket/fiber around the seal. The trim is a "antique" brass figure, of a man and woman sitting around a stove. No window. The air controls are knobs on the sides (one on each side).



[Evalasvegas]

No idea on brand. I'd worry about the frt. hanging over your floor like that, I'm sure that's not approved.

Noted.



[Evalasvegas]

Correct, there needs to be a proper hearth pad in front of the stove door.

Thanks for the advice.



[begreen]

Is it connected to a full liner up the chimney or is there no connection and just a reliance on a tight seal at the surround?

It looks nicely made. Can you post a straight front shot of the brass figures on the front of the stove? This might hold a clue.



[Evalasvegas]

Is it connected to a full liner up the chimney or is there no connection and just a reliance on a tight seal at the surround?

It looks nicely made. Can you post a straight front shot of the brass figures on the front of the stove? This might hold a clue.

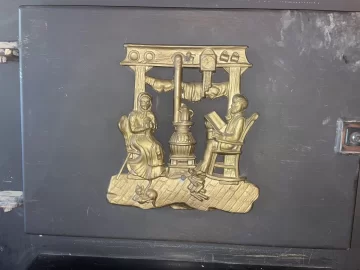

No connection to the liner/chimney, just the tight seal. Here is a pic of the "decoration" on the door.



[begreen]

I like it, that's charming. I ran a Google image search but it found nothing. What it did show was a lot of banks that had similar appliqués.

No connection to the liner/chimney, just the tight seal.

Unfortunately, this type of installation is no longer allowed. It's called a "slammer".



[Evalasvegas]

I like it, that's charming. I ran a Google image search but it found nothing. What it did show was a lot of banks that had similar appliqués.

Unfortunately, this type of installation is no longer allowed. It's called a "slammer".

Thank you and I will look into options for omitting the "slammer".



[mellow]

Thank you and I will look into options for omitting the "slammer".

More than likely that will require switching to a newer insert which will burn cleaner and longer.

.



[begreen]

Thank you and I will look into options for omitting the "slammer".

This will mean attaching a full stainless steel liner to it, after the chimney is fully cleaned.
