2010 Quadrafire Classic Bay 1200 wiring

[Twyla]

Can anyone help me with some wiring information?



[Ssyko]

ok I"ll bite, what ya looking for?



[Twyla]

ok I"ll bite, what ya looking for?

Lol...... So a couple days ago I took out the convention blower to clean it. Someone threw away my paper with what wires connect where



[Ssyko]

if you only removed 2 wires you can put them back either way.



[Twyla]

if you only removed 2 wires you can put them back either way.

There are three wires coming from the convention blower and three to the power supply ( had to be removed to take the back off to get the blower out)



[Ssyko]

can you post a pic..or what color wires on the stove side and colors of the blower wires



[Twyla]

can you post a pic..or what color wires on the stove side and colors of the blower wires

Yup, give me about 15 minutes to get home



[Ssyko]

my stove has a plug. but the red wire from stove went to brown on motor. black on the stove went to tan wire on blower then white went to white aka neutral

wire on



[Twyla]

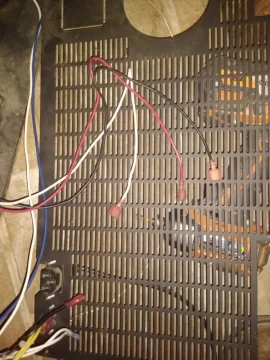

These come off the blower



[Twyla]

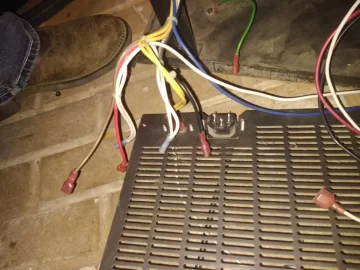

These are the ones that the blower connect to and ones that go to the power supply



[Ssyko]

follow my previous post for blower wires



[Twyla]

follow my previous post for blower wires

View attachment 250910

Thank you!
Stove still isn't feeding.... Do the lights on the main board indicated anything if something is wrong?
