For you technology experts can a three speed circ be set up to change speeds using a thermastast or zone valve?
3 Speed Circ ?
- Thread starter Bricks
- Start date
-
Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.
We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.
We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil. -
Super Cedar firestarters 30% discount Use code Hearth2024 Click here
- Status
Bricks said:
Yes, but not easily - that's not what they're designed for. Here's a link:
https://www.hearth.com/talk/threads/15270/
On that subject line, I have a Grundfoss 3-speed. It's set in on high, any big diff versus med or low? The circ is in my boiler room, about 100ft away to my tank and manifold in basement. High seems to work well. The hx's perform well. My installer and myself figures it would work the best. But...................

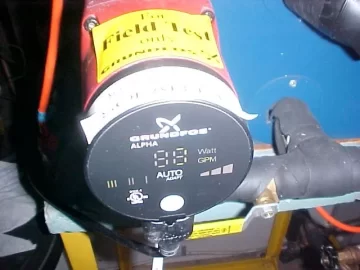

the new delta P or pressure differential circulators automatically adjust speed based on the system load. So as zone valves shut off they rev down vice versa as valves open or modulate. This Grundfos Alpha reads out GPM and Watts to show you where the pump is operating and how much flow it is moving.
