Attempt #1 at posting picture of piping.

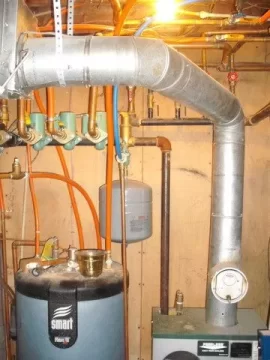

Holy s*$# I think it worked. :wow: This is a picture of my existing oil boiler and piping. Hope some of you can take a look at this and tell me about adding my Wood Gun and storage tank to this system. This is pressurized and I want to keep the system that way. If you look at where the 90 angle is on the main hot water feed above boiler I think I can just put a T fitting there and run pipe from wood boiler/storage tank and have them be paralell. The same basically with the return which is just to the right and above. That comes down to the bottom of oil boiler in front on right side. What I call a manifold might not be the correct term but basically have one that is fed from main hot water line on oil boiler and one that is fed from all return lines and goes to main return on boiler bottom right side. Just to the right of the smoke stack is a 90 angle on the main return line that leads to the bottom of the boiler. I believe I could just put a T fitting there and go on by to the wood boiler. What else do you guys need to know? I know the picture is not the best. Sorry.
The storage tank and wood boiler will be about 12 feet away on the other side of the hallway which is between existing boiler room and new wood boiler room. So about 8 feet to storage tank and 12 feet to wood boiler.
Holy s*$# I think it worked. :wow: This is a picture of my existing oil boiler and piping. Hope some of you can take a look at this and tell me about adding my Wood Gun and storage tank to this system. This is pressurized and I want to keep the system that way. If you look at where the 90 angle is on the main hot water feed above boiler I think I can just put a T fitting there and run pipe from wood boiler/storage tank and have them be paralell. The same basically with the return which is just to the right and above. That comes down to the bottom of oil boiler in front on right side. What I call a manifold might not be the correct term but basically have one that is fed from main hot water line on oil boiler and one that is fed from all return lines and goes to main return on boiler bottom right side. Just to the right of the smoke stack is a 90 angle on the main return line that leads to the bottom of the boiler. I believe I could just put a T fitting there and go on by to the wood boiler. What else do you guys need to know? I know the picture is not the best. Sorry.
The storage tank and wood boiler will be about 12 feet away on the other side of the hallway which is between existing boiler room and new wood boiler room. So about 8 feet to storage tank and 12 feet to wood boiler.
