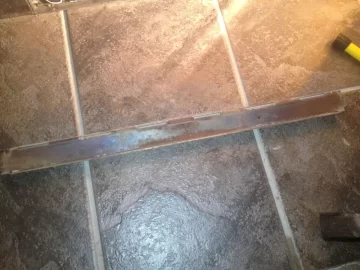

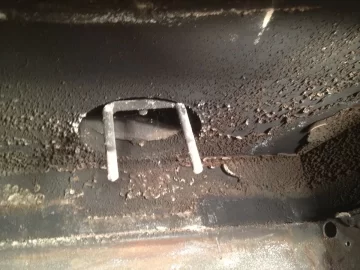

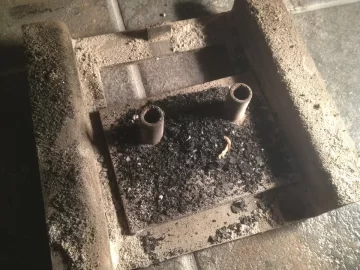

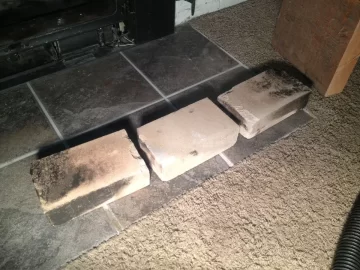

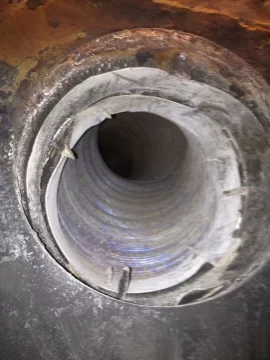

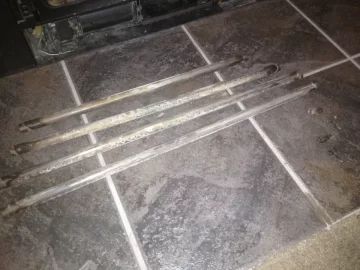

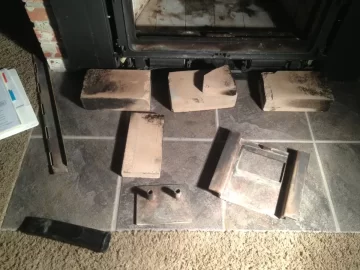

I finally got around to inspecting the baffle and cleaning the top part of my firebox. After 2 seasons, here is what I discovered. I also wanted to pull the baffle so I could clean the bottom 3 feet of my liner (interesting bend). First, I had to remove the burn tubes. After that, I had to pull the front baffle support plate. Following this, I had to slide out the top 3 front fire brick. After this, I was able to pull the baffle plate forward and get my hands on the bypass damper assembly and additional firebrick. I can't tell you how many times I had to run to the sink to wash my hands and or turn the shop vac on to clean as I worked. In terms of creosote, I thought what I found was not too much and was "soot" like. Through out this process, I noticed that the baffle plate has a slight "belly" in it and one of the firebrick that sits atop the baffle is cracked in half. I will be contacting Travis industries about this.
IMG_5175.jpg IMG_5177.jpg IMG_5178.jpg IMG_5179.jpg IMG_5180.jpg IMG_5181.jpg IMG_5185.jpg

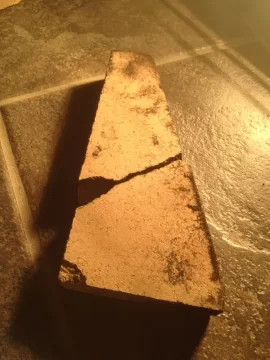

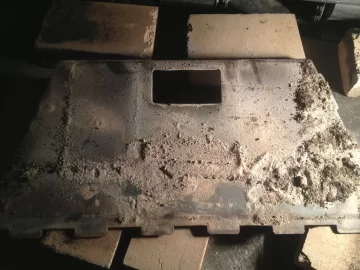

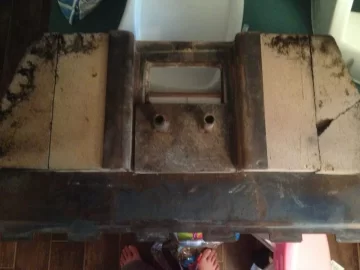

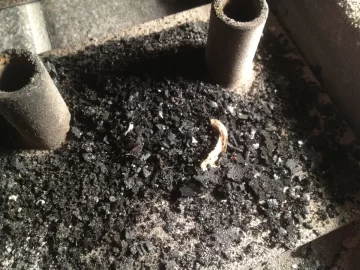

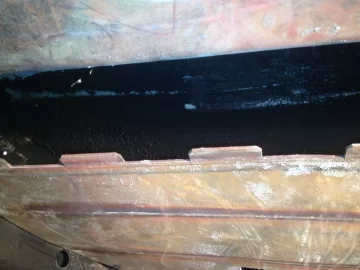

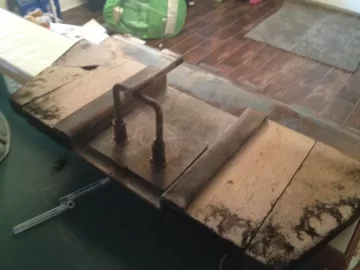

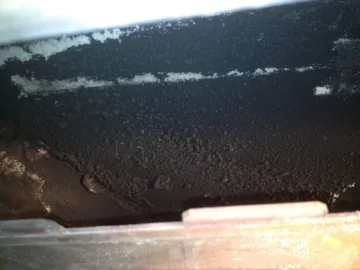

More pics. In the fourth pic, you can see the cracked firebrick. Pic 5 is top side of baffle...not bad. Pics 7 & 8 is the bypass damper assembly that sits atop the baffle. After all was pulled and cleaned, I ran one three foot section of the "soot eater" to clean my liner at the interesting bend.
IMG_5186.jpg IMG_5187.jpg IMG_5188.jpg IMG_5189.jpg IMG_5190.jpg IMG_5191.jpg IMG_5196.jpg IMG_5197.jpg IMG_5199.jpg

Looks good to me. If it bothers you, new bricks are around $2.50 at the local concrete yard.
