Hey folks,

This isn't necessarily hearth related, but it's something I thought some of you guys might find interesting nonetheless.

Disclaimer: In case some future blacksmith stumbles across this thread, I am going to start by saying this is not intended to be a tutorial. Just because my setup is legal in my town does not mean it will be allowed for you. Always consult your AHJ to determine their requirements prior to starting your build.

I closed on a house back in December with the intention of moving my shop into the detached "garage" (more on the scare quotes later). In my naivety, I thought, "I just need a chimney put in, how hard can that be?". :eyeroll: This was my first time moving everything indoors and for safety/insurance purposes I wanted to keep everything above board. At the end of the day, I'm glad I did. That being said, with it being such a unique request in my area it took about 5 months to find a company willing to do the installation, obtain a permit, get parts in and do the installation. Some of that time was due to CV19 related delays, but much of it was spent jumping through hoops with the town.

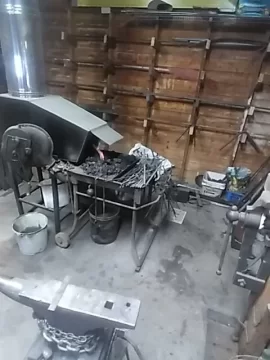

So, what is a coal forge, in a legal sense? In my town it is an unlisted solid fuel burning appliance. This means I was required to maintain a 36" clearance from the forge and hood/support frame to any combustibles. I fabricated side draft hood as well as the frame the whole stack sits on.

Unfortunately, to save some money, I see quite a few blacksmiths who use single wall and/or galvanized spiral duct for their chimney. For several reasons this is not allowed in residential applications near me. I have however seen 12" spiral used in a local school, but they have a much more involved exhaust system. Not having the code in front of me I can’t quote chapter and verse of NFPA 211 that gives the reasons, but suffice it say it’s not a smart move.

I went back and forth between going through the wall or straight up and out through the roof. I ended up going with a 10” SS DuraTech system going straight up and out. The stack is 14’ tall and to keep the smoke away from the neighbors the top of the cap is 7’ above the peak of the roof. It is quite impressive looking from the road.

I can already hear some of you saying, “You put an exposed coal fire in a garage? But NFPA 211 §13.2.4!”. I agree with you, and I think this is a stumbling block for many who try to install a solid fuel-burning appliance in such a structure. After the code office passed my permit application over to the fire marshal with a shrug of the shoulders not knowing how to handle a forge, I got a call from him. One of the additional requirements for me to be able to proceed with the installation was to submit, in writing, a letter to the town agreeing that, “Neither flammable liquids nor equipment such as vehicles, lawnmowers, weedwhackers, etc. which operate through the burning of fuel in an internal combustion engine are to be stored within the structure at any time while the solid fuel-burning appliance is also present.”. While I was on the phone with the fire marshal, he even said, “Well, I guess we can’t really call it a garage anymore.”. Nice guy. He was very understanding during the whole process. I also had to agree to a couple of other stipulations that they had, but they aren’t worth getting into here.

If anyone is interested, here’s a video of the first fire:
I’ve been using the forge for about 2 months now and the performance has been excellent. It was certainly worth the investment of time and money. Speaking of money… They must line this pipe with platinum or something, phew! That stuff is expensive! I probably could have done the installation myself, but with the amount I was spending on parts alone, I figured it’s best to let the pro’s handle it.

Anyway, thanks for reading. I'm happy to answer any other questions if you guys have them. I left out some of the details for the sake of brevity.

-Frazer

P.S. No that isn't a filter on the photos. I don't have a smartphone so the image quality is pretty bad.. It doesn't really help that my lens was dirty :cool:

P.P.S. Hopefully I posted in the right section. Feel free to move my post if necessary.

IMG_2021-07-24_15-49-58.jpeg IMG_2021-07-24_15-50-13.jpeg IMG_2021-07-24_15-56-11.jpeg IMG_2021-07-24_19-18-31.jpeg IMG_2021-07-24_19-20-50.jpeg

  • Like
Reactions: begreen

clancey

Minister of Fire
Feb 26, 2021
2,030
Colorado
Did not know anything about "BlackSmithing" or even what a forge was and so I went on u-tube to find out--what an eye opener for me to see--wow--talk about labor--wow....This is a art that is a lost art and these people built our nations.. I watched The Last blacksmith and really enjoyed it...Thanks for the start of knowledge for me in checking out your posting. mrs clancey


SpaceBus

Minister of Fire
Nov 18, 2018
6,436
Downeast Maine
I'd like to build a forced air charcoal forge myself, but that's a while off since I don't even have a workshop!


begreen

Mooderator
Staff member
Nov 18, 2005
91,301
South Puget Sound, WA
What sort of work will you be creating?
Looks like some heavy metal there. Cue Black Sabbath.


stoveliker

Minister of Fire
Nov 17, 2019
2,806
Long Island NY
Good for you doing everything right and legal!
Cool looking coal fire!


Frazer

New Member
Jul 26, 2021
4
Rochester, NY
Mrs Clancy, YouTube is a great thing, there are actually quite a few of us out there and the community seems to be growing. Most of the blacksmiths I have met are all great folks. I little dusty and of the "no-nonsense" variety, but good people overall.

Spacebus, psh, who needs a shop, my first setup was a weber grill lid, flipped upside-down, some black iron pipe, a hairdryer and an improvised anvil (piece of steel I found at the scrapyard). I think I got myself setup for $20-$30. It was a little (okay maybe a lot) janky, but it at least it was outside and let me decide whether this was something I wanted to pursue or not. Knowing what I know now I probably could have started for even less than that. It's taken me years to acquire all the toys -- *ahem*-- I mean tools I have now. You really don't need much to get started, but a little training goes a long way. Charcoal is nice, quite a few people use it very successfully, but IMHO the stuff you tend to find nowadays isn't fully pyrolyzed .. Lets off a lot of sparks (fire-fleas) if you give it too much air. If you can find it, bituminous coal or coke is the way to go. Just don't buy the expensive stuff online. I get 50# bags at $10/bag, fortunately coal is pretty cheap.

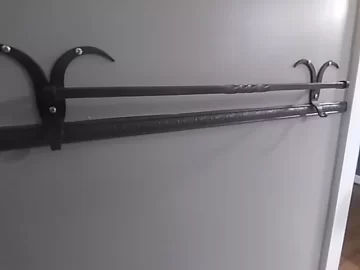

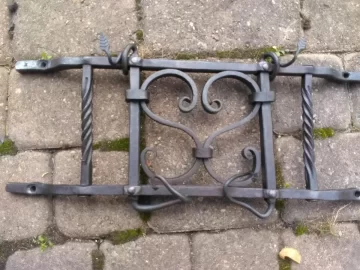

begreen, you'll have to pardon the photo dump... These are just a few things I've made somewhat recently; I don't mean to take up unnecessary bandwidth. What I make really depends on what I need or am asked to make. Generally speaking, I make a lot of tools. I always say, "if it's made of steel and of reasonable size/dimensions, I'll try to make it". I'd apologize for the mess in the shop, but an organized workspace is a sign of a lack of creativity... That's my story anyway and I'm sticking to it! ;) I was raised on Ozzy Osborne, Randy Rhoads was one of the all-time greats. However, my all time favorite band is tool. A tongue and cheek comment, but apt nonetheless.
