We have a rancher that had a two story addition one side,now it's like a split level. We want to put a wood stove on the end of the rancher.The rancher part is 40ft long till it hurts up th the 2 story addition.My question is how high does the chimney have to be? Does it need to be higher than the 2 story addition ,or is it far enough that it only has to clear the one story . And if it needs to clear the 2 story is it possible to secure a stack standing that tall?
Chimney placement questions
- Thread starter dahluwalia
- Start date
-
Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.
We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.
We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil. -
Super Cedar firestarters 30% discount Use code Hearth2024 Click here

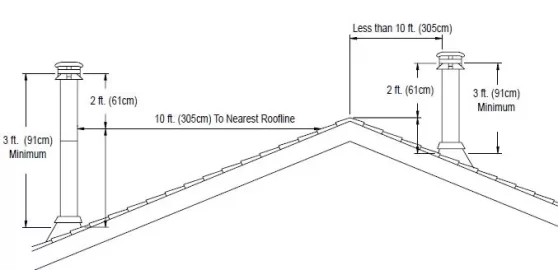

The 2 story addition sounds like it will be greater than 10ft and therefore too far away. The 10-3-2 rule is what applies to the new chimney.
![[Hearth.com] Chimney placement questions](https://www.hearth.com/talk/data/attachments/316/316265-303365b122c0a73c2f860409231e7db4.jpg?hash=MkKStXHGLt "[Hearth.com] Chimney placement questions")
However, putting the chimney on the 1 story end may create problems depending on the house and prevailing winds. If the prevailing winds blow up against the 2 story section they may create a positive pressure zone above the 1 story chimney that ruins draft. Another issue can happen if there is any air leakage in the new 2 story addition, it may pull air from the 1 story section and reverse draft.
www.woodheat.org
However, putting the chimney on the 1 story end may create problems depending on the house and prevailing winds. If the prevailing winds blow up against the 2 story section they may create a positive pressure zone above the 1 story chimney that ruins draft. Another issue can happen if there is any air leakage in the new 2 story addition, it may pull air from the 1 story section and reverse draft.
A non-commercial service in support of responsible home heating with wood - How Wind Affects Chimney Performance
The Wood Heat Organization was formed to support the public in the responsible use of wood energy in the home. We fulfill our mandate by providing reliable information, by conducting research into wood heating-related issues and by representing the public interest in discussions of policies that...
Thanks,I was thinking the second story would be far enough with the 10 ft rule but wasn't sure as it has to be inspected.But I surly i never thought for ones about a possible draft issue. Any way to test or fix such issue? This is the best and easier placement, after this things get complicated expensive and out of my hands
Pay attention to the prevailing winds. If they most blow against the 2 story side, that is helpful. Definitely plan on the stove having an outside air supply and try to give it a 15' flue.
