Draft position sensor

[realstihl]

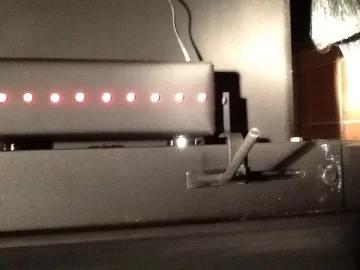

My son says I have too much time. Anyway I wanted a way to tell what position my draft control in. The sensor has 10 leds. It's nonlinear which means there is 3.5 inches of travel on the slide vs around 7 inches between first and last led. It's dark in the basement so this should work well.



[realstihl]

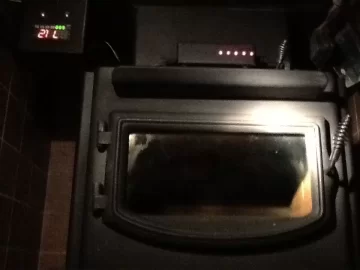

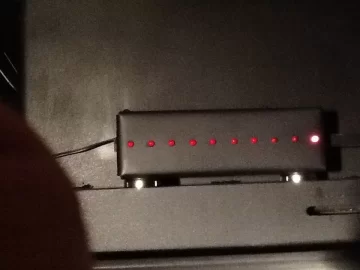

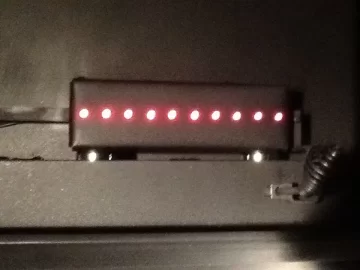

Here's some more pics. I think



[begreen]

That is very cool and quite handy for remote monitoring.



[cygnus]

Cool. Seems to me you have just the right amount of time.

Powered by batteries or is that a power cord coming off? Always wanted to do something on the stove with a TEG

How do you register the position of the air control in the circuit? Some kind of variable resistor? What IC did you use?



[CenterTree]

I agree with your son.



[Sprinter]

You may have too much time, but at least you're doing something with it... Nice job.
