As i continue to research and plan for my garage i have come to the point where i am trying to figure out how to insulate the slab. I have read that the epx foam board at 27 bucks a sheet for 2 inch is the way to go. But have also read that the 12 dollar sheets of eps foam will work just as good. The epx is a r-10 and the eps is a r-7.5 in 2 inch think sheets. Has anyone done this before and can tell me witch way to go? Im thinking i will need around 48 sheets so the $15 price difference will add up fast.
eps or epx foam under slab
- Thread starter curtis
- Start date
-
Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.
We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.
We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil.
- Status
Curtis we did a 9,000 sq ft church this past fall/winter. The only place we used 2" foam was around the edge of the slab down vertically about 20". The entire floor was done with 1". It heats like a dream.
By far the vast majority of heat loss from a slab is on the edge rather than the interior of the slab itself. Just think about this for a minute... The edge is going to see ground temperatures next to it that may be well below freezing while the ground underneath the interior of the slab only drops to maybe 50-60*. When you have temperature differentials that low in the slab to ground interface you don't need all that much insulation to stop the heat flow.
A local business asked me to give them a price on doing a 10,000 sq ft equipment repair garage for their logging operation. I priced it out like above and lost the job because someone came in and told them all they needed was bubble foil under the slab and nothing on the edge because there was so little area exposed. Long story short, after burning up a couple of the huge Centrals inside of 6 years they are now building their own boiler that will take logs in 8' lengths and there is a 4 foot wide strip of green grass all the way around the building even in the dead of winter.
Take care in insulating the edge and use some 2" there. The interior of the slab is not as critical.
By far the vast majority of heat loss from a slab is on the edge rather than the interior of the slab itself. Just think about this for a minute... The edge is going to see ground temperatures next to it that may be well below freezing while the ground underneath the interior of the slab only drops to maybe 50-60*. When you have temperature differentials that low in the slab to ground interface you don't need all that much insulation to stop the heat flow.
A local business asked me to give them a price on doing a 10,000 sq ft equipment repair garage for their logging operation. I priced it out like above and lost the job because someone came in and told them all they needed was bubble foil under the slab and nothing on the edge because there was so little area exposed. Long story short, after burning up a couple of the huge Centrals inside of 6 years they are now building their own boiler that will take logs in 8' lengths and there is a 4 foot wide strip of green grass all the way around the building even in the dead of winter.
Take care in insulating the edge and use some 2" there. The interior of the slab is not as critical.
XPS, expanded polystyrene, or blue board as most of us in the trade call it. The white "beadboard" does not have the same compression strength and water will penetrate it over time. Use the blueboard or whatever color it is in your area. As Heaterman pointed out once it's done it's done all you can change it the heat source, unless you like big jackhammers.
In my northern climate it's 2" everywhere in any residential slabs, which are relitivly small square footage, therefore not wide enough to justify the transition to thinner foam in the middle. Large slabs (over 40' wide) I'd consider thinner once your 8 or 10 feet in. And leave NO exposed concrete to the elements, the heatloss is HUGE! I use double 2" on the vertical perimiter of monolithic slab pours (my house included).
TS
In my northern climate it's 2" everywhere in any residential slabs, which are relitivly small square footage, therefore not wide enough to justify the transition to thinner foam in the middle. Large slabs (over 40' wide) I'd consider thinner once your 8 or 10 feet in. And leave NO exposed concrete to the elements, the heatloss is HUGE! I use double 2" on the vertical perimiter of monolithic slab pours (my house included).
TS
Taylor, how do you insulate a monolithic slab? I thought of doing that type of slab instead of a footing with block but wasn't sure how to go about insulating it.
My best friend is having a large house built on a lake in New Hampshire and after some words back and forth with his contractor he had to raise his voice in order to get him to lay vapor barrier. Contractor kept telling him it wasn't needed and they never install it.

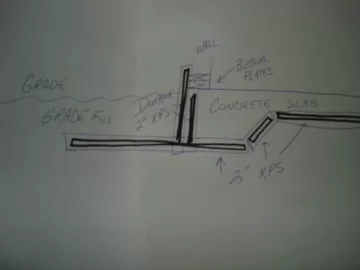

I insulate the whole thing, I drew a crude picture of how I've done it and not had any issues doing it this way. The thickened edge is 12-16" thick and goes into the slab 12" plenty of steel in all of this with the rebar bent into hooks tied to the thick edge lateral rebar as well. And as Fred said, I use poly under the whole thing, I like to tape the poly and overlap it at least a foot, does it do anything? Don't know but it's cheap insurance and a damp slab is no fun!
