Fabricating a manifold for my secondary loops.

Buzz Saw Posted By Buzz Saw, Sep 13, 2017 at 5:17 PM

  1. Buzz Saw

    Buzz Saw
    Feeling the Heat 2.
    NULL


    Jan 18, 2014
    486
    78
    Loc:
    Attica, Ohio

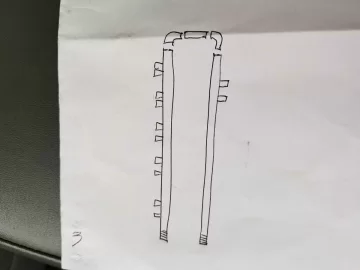

    I'm thinking about fabricating and welding my manifold for my secondary loops instead of using a bunch of tees and nipples.

    I would use a piece of 1-1/4" pipe and weld forged 1" connectors to the pipe. Then I would use forged 90* elbows for the turns. Each end of the manifold would be threaded so I could attach it the supply/return using unions.

    Before install I would pressure test at like 50lbs for a 24 hrs....or something like that.

    Anyone ever weld out manifold? Anyone see any reasons not to go this route? Only issue I can think of is the drilled hole & welded connector won't have as a smooth transition as a tee. Does that even matter?

    Edit: This is for an open system(Garn 2000)

    Thanks d4889df7b57f95238758cf4dab52aea4.jpg 9d85cf8ee994a1a0f30a89195197de84.jpg

    Sent from my SM-G950U using Tapatalk

  2. TCaldwell

    TCaldwell
    Minister of Fire 2.
    NULL


    Oct 26, 2007
    842
    79
    Loc:
    860-868-9014 h 203 948 0864 c nw corner ct.
    I'd guess you are a certified welder

  3. warno

    warno
    Minister of Fire 2.
    NULL


    Jan 3, 2015
    872
    233
    Loc:
    illinois



    If you trust your welding skills have at it. Just be sure to lock it down to a table that will hold it from warping. That many welds down the pipe will turn that thing into a banana. If this is your first project like this I'd be happy to give some pointers on set-up for the weld joints if you PM me.

  4. Buzz Saw

    Buzz Saw
    Feeling the Heat 2.
    NULL


    Jan 18, 2014
    486
    78
    Loc:
    Attica, Ohio
    I am a certified welder, however not in pipe. I've welded up enough things to follow proper procedure. If this was a pressure vessel I would get the cert for the application.

    I'll edit my original post to include that this is an open system. The only pressure the manifold will see if from the pump.

    Sent from my SM-G950U using Tapatalk

  5. Buzz Saw

    Buzz Saw
    Feeling the Heat 2.
    NULL


    Jan 18, 2014
    486
    78
    Loc:
    Attica, Ohio
    Your the guy I was thinking of. I knew there was someone who did a lot of fab work on their system.

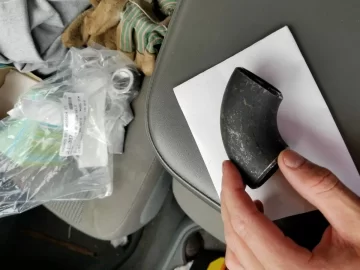

    My biggest issue is finding fittings. I want a long sweep 90* but can only locally find that short 90* in the pic.

    Sent from my SM-G950U using Tapatalk

  6. warno

    warno
    Minister of Fire 2.
    NULL


    Jan 3, 2015
    872
    233
    Loc:
    illinois
    What is your process of welding going to be? MIG, TIG, or stick?

    Supply house has long radius 1" 90s in stainless. Stainless can be welded to black but it's recommended you use stainless filler material.

    Here's the supply house fittings

    Click here

    Or there's 2 on thE bay right now in black steel

    Click here

  7. Buzz Saw

    Buzz Saw
    Feeling the Heat 2.
    NULL


    Jan 18, 2014
    486
    78
    Loc:
    Attica, Ohio
    I was planning GTAW.

    I never even thought to check EBay. I'll check it out.

    IIRC use 308L to weld stainless to mild?

    Sent from my SM-G950U using Tapatalk

  8. maple1

    maple1
    Minister of Fire 2.
    NULL


    Sep 15, 2011
    7,611
    1,329
    Loc:
    Nova Scotia
    Don't see where it would be an issue if one knew what they were doing.

    I can sweat copper, so that's how I went in places like this. Copper fittings are expensive though, no doubt about that.

  9. NateB

    NateB
    Burning Hunk 2.
    NULL


    Mar 5, 2013
    214
    64
    Loc:
    South Central Pennsylvania
    Have you looked at the Webstone Purge Tee? If not I would recommend them. The valve in between the tees does make it easier to fill the system. I would still use check valves, because I do get a little flow through my loops.

  10. taylorfarms

    taylorfarms
    Member 2.
    NULL


    Aug 1, 2015
    26
    2
    Loc:
    new boston, il
    if it is an open system I would think about stainless sch.10 pipe, should be fine for 0psi, we run up to a 100 psi through it in the sprayer

    as far as long radius bends, any electrical supplier should have a pipe bender that should be capable, most of my boiler system uses bent pipe that is all welded.

    if you need long weldable sweeps I usually get them from dultmeier sales, but their closest branch is in davenport, IA so shipping my be cost prohibitive, although they do have a good website, might be something to base ideas off of.
