Gas furnace question

[Oakwilt]

We recently installed a new furnace, the old unit worked but was undersized for the home, I put the old furnace in my garage with hopes of hooking it up this fall for heating the garage when working on projects this winter, here's the dumb question..... I have everything to get it fired up except I have no idea where the thermostat wires go on the furnace itself and can't find any info on internet except for diagrams on which color goes where, don't care about colors yet first have to know where the darn wires connect on the unit. It's gas not too old, has forced draft, luxaire 80,000



[DAKSY]

Can you post a pic of the terminal blocK on the unit?
Are the terminals labeled?



[Oakwilt]

Can you post a pic of the terminal blocK on the unit?
Are the terminals labeled?



[Oakwilt]



[Oakwilt]

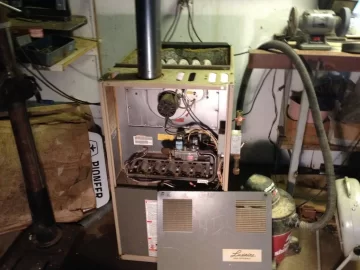

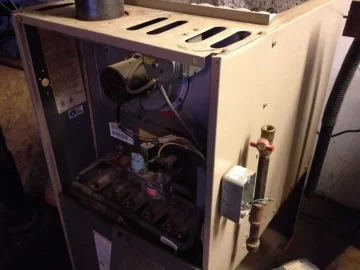

Thank for reply I can take more pics if needed see no labels on any terminals



[Oakwilt]

Those pics are too small I'll try again



[Oakwilt]



[DAKSY]

Hmm. Nothing inside the cover you've removed?



[Oakwilt]

Nothing



[Oakwilt]

It's nothing fancy, but I sure don't know where stat goes



[DAKSY]

How about this?

http://www.joinluxaire.com/products/residential/961/Low-Voltage-System-Wiring.aspx

I didn't open it, but it may help...



[cityboy172]

Open up the blower section, they're usually down there.



[Oakwilt]

Thanks but It didn't show where wires go but again thanks



[fespo]

Open up the bottom door . its on the main board in the lower section



[STIHLY DAN]

That would not be legal here. Wiring, w t0 w r to r g to g.



[Oakwilt]

Got it, never thought to look down below. As far as legal, were not done yet. Thanks
