Google SketchUp Model of Fireplace

[KevinM]

Does anyone know of a functional SketchUp model of a fireplace. By functional I mean:
a) not being and empty rectangular box
b) have an opening for a flue

I'm sure I can figure it out in a few hours but why re-invent the wheel.

Kevin.



[KevinM]

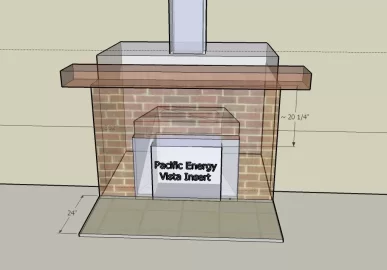

Well this is as far as I made it tonight. Don't have everything connected but it is getting there. The back left top corner is a bit triangulated to make the shape but I couldn't get it to keep the faces in one piece.

Kevin.



[jebatty]

Modern, efficient fireplace design was the work of Count Rumford of the late 1700's. Width, height, depth, slope, smoke shelf, damper, and chimney all are critically related to a properly functioning fireplace. Take a look at the following to get you started:

1) http://www.rumford.com/Rumford.html
2) http://www.fireplaceconstruction.com/
3) http://www.rumford.com/



[KevinM]

I will be using the model for diagrams for my permit for the installation.

As well I hope to get a better impression of how the flex liner will fit going from the insert and through the damper plate.

Kevin.
