Need help on how to attach dbl wall stove pipe to stove flue

REN Posted By REN, Oct 11, 2018 at 6:28 PM

  1. REN

    REN
    New Member 2.
    NULL


    Oct 11, 2018
    4
    0
    Loc:
    Ohio
    Hello hearth room,

    I need help attaching the black double wall stove pipe to the flue port on my wood stove. My model stove is Ashley Hearth Bay front Model: AW180.

    This model stove does not have a flue collar that stands proud like most stoves. The manual offers virtually no help, just says install pipe and secure to stove with three screws.

    The dbl wall stove pipe I bought was from menards and is Selkirk brand. But if I need to get different pipe that’s fine- I just don’t know how to secure/fit stove pipe to the stove.

    The selkirk stove adapter is much too large and just sits loose on the top of the stove. The regular pipe is a bit too large to fit into the port. But even if I did fit it in, I don’t know how I could secure it with theee screws and would assume smoke would poor out and/or get behind the first wall and into the second wall of the pipe.

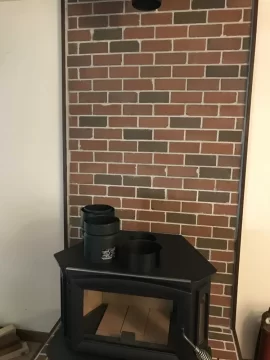

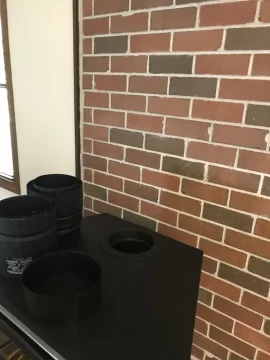

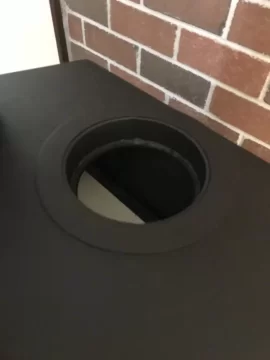

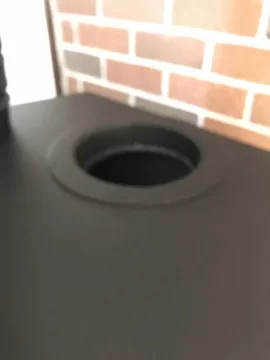

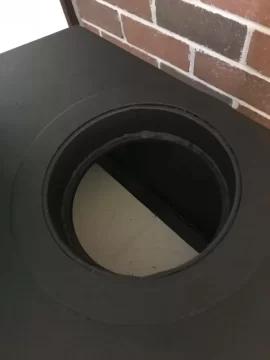

    I tried to attach a few photos. Hope that helps describe my situation.

    Any help or advice is much appreciated.

    Thanks,
    REN


    Attached Files:

  2. webby3650

    webby3650
    Master of Fire 2.
    NULL


    Sep 2, 2008
    9,409
    2,661
    Loc:
    Indiana
    You will just have to forget about securing the pipe to the stove unfortunately. Most manufacturers don’t seem to give a lot care about the connection with double wall. Especially Chinese stoves.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  3. REN

    REN
    New Member 2.
    NULL


    Oct 11, 2018
    4
    0
    Loc:
    Ohio
  4. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    74,250
    11,289
    Loc:
    South Puget Sound, WA
    Tiny firebox, where did you buy the stove? Is there a possibility of returning it? If not, what is the ID of the flue hole?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  5. Tech Guru

    Tech Guru
    Member 2.
    NULL


    Jul 17, 2015
    108
    28
    Loc:
    Ontario
    Depending on the Double Wall pipe you're using, many manufacturer's make specific adapter piece for use on Stoves that don't have a protruding Flue Collar. ICC Ultrablack has the UBSE - which states this as the main reason it even exists.

    http://icc-chimney.com/en/ultrablack

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    begreen likes this.
  6. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    74,250
    11,289
    Loc:
    South Puget Sound, WA

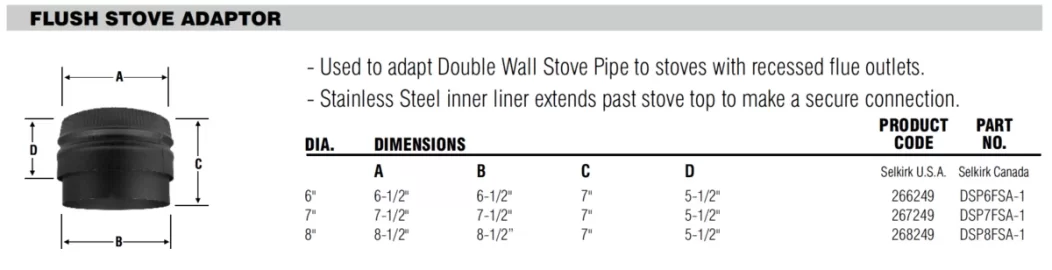

    Good tip. That is why I was asking about the stove flue ID. Selkirk also makes a flush flue adapter - 266249.

    Screen Shot 2018-10-12 at 11.44.56 AM.png

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Tech Guru likes this.
  7. REN

    REN
    New Member 2.
    NULL


    Oct 11, 2018
    4
    0
    Loc:
    Ohio
    Unfortunately, I can’t return it- bought end of season from Tractor supply last spring.

  8. REN

    REN
    New Member 2.
    NULL


    Oct 11, 2018
    4
    0
    Loc:
    Ohio
    Awesome! My retailer didn’t have that as an option but I just ordered one from a chimney supply and am having it overnighted so I can try to install it this weekend.

    Hopefully that’s what I need. I will check the exact ID measurement when I return to it.

    Thanks for the direction all!
