New Classic Edge install

[Longpond paperboy]

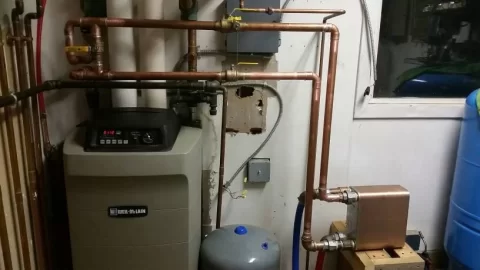

I am almost done with my boiler install. I connected the heat exchanger to the house boiler and had some questions. I have the Wood Boiler Supply in the bottom left of heat Exchanger. I have the House return in top right. Cross flow. Is that correct? The picture below shows the install. Left of boiler is the return.

Sent from my SAMSUNG-SM-G900A using Tapatalk



[Smokelessny]

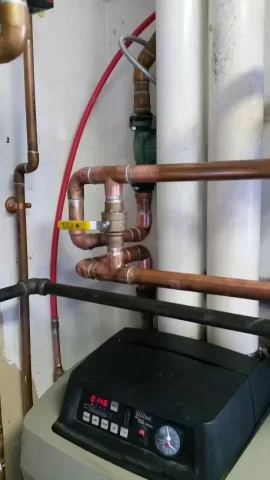

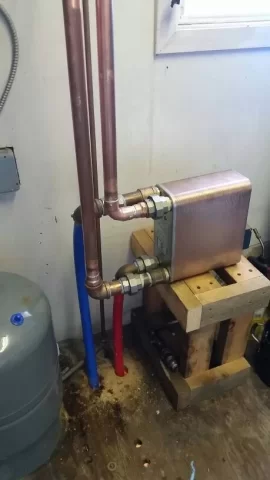

I am almost done with my boiler install. I connected the heat exchanger to the house boiler and had some questions. I have the Wood Boiler Supply in the bottom left of heat Exchanger. I have the House return in top right. Cross flow. Is that correct? The picture below shows the install. Left of boiler is the return.View attachment 183253View attachment 183254View attachment 183255

Sent from my SAMSUNG-SM-G900A using Tapatalk

LP you need to counter flow the heat exchanger. ⬆️⬇️
Do not flow in same direction. ⬆️⬆️
