Olympia insulated wall thimble cutting inner pipe length?

[94SS]

I don’t see a spec for inner pipe length. How do you decide which length to cut the inner pipe? 6 optional lengths the pipe can be cut at.



[94SS]

All parts up.



[begreen]

That's a good improvement.



[kkitty]

All parts up.

View attachment 302481 View attachment 302482

I have the same question - how does one decide the length to cut off the inner pipe at? I need to pass a tee snout through that inner pipe, it attaches to a flex liner on the chimney side and to single-wall pipe on the stove side. Thanks for any help you can give!



[bholler]

I have the same question - how does one decide the length to cut off the inner pipe at? I need to pass a tee snout through that inner pipe, it attaches to a flex liner on the chimney side and to single-wall pipe on the stove side. Thanks for any help you can give!

The inner pipe should be the snout



[kkitty]

The inner pipe should be the snout

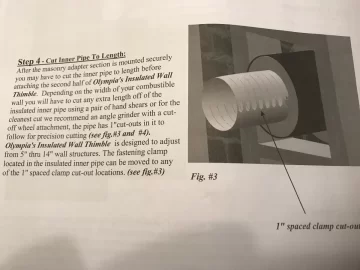

Whoa! As I understand it, inner pipe supplied with the thimble is insulated (according to the installation instructions, attached here) and there is no way to connect that inner pipe directly to the tee which is attached to the flex liner. So I'm thinking I need to attach the (uninsulated) snout to the tee and run it though the (insulated) inner pipe supplied with the thimble. But I don't know where to cut off that inner pipe on the stove side of the thimble.



[bholler]

Whoa! As I understand it, inner pipe supplied with the thimble is insulated (according to the installation instructions, attached here) and there is no way to connect that inner pipe directly to the tee which is attached to the flex liner. So I'm thinking I need to attach the (uninsulated) snout to the tee and run it though the (insulated) inner pipe supplied with the thimble. But I don't know where to cut off that inner pipe on the stove side of the thimble.

Is this a ventis thimble?



[kkitty]

Is this a ventis thimble?

No, it's the Olympia thimble that I attached the installation instructions for. Maybe I need to see it to understand how it goes together (it's on order). I ordered it with an option to connect to a tee and it's supposed to come with a long (22") snout.



[bholler]

Ventis and Olympia are the same thing. They have an insulated shell that you attach to the outer wall of the chimney. That is cut to length so it extends about 3" into the room. Then there is an inner stainless sleeve which is either a tee snout or a straight price of stainless pipe depending on whether you ordered one for a ss liner or one for a masonry liner. That is cut to the length required so it extends past the insulated part enough to attach your pipe.



[kkitty]

Ventis and Olympia are the same thing. They have an insulated shell that you attach to the outer wall of the chimney. That is cut to length so it extends about 3" into the room. Then there is an inner stainless sleeve which is either a tee snout or a straight price of stainless pipe depending on whether you ordered one for a ss liner or one for a masonry liner. That is cut to the length required so it extends past the insulated part enough to attach your pipe.

got it! thanks so much for your help.



[94SS]

got it! thanks so much for your help.

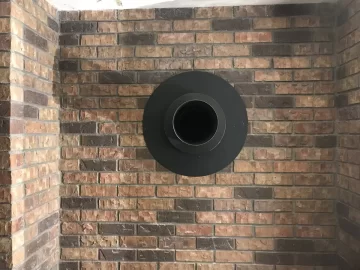

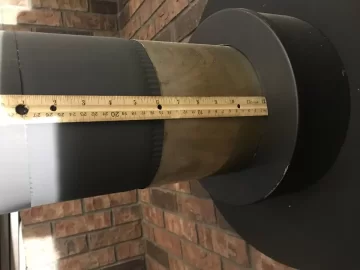

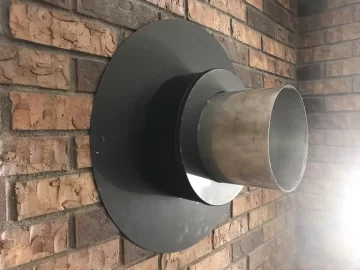

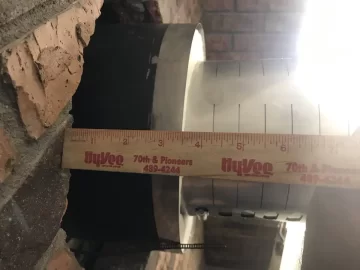

I used all the stainless ridged section. I would have cut it down based upon the length I needed to attach to the pipes from the stove. If it cosmetically bothered me I would have cut it shorter too. Minimum length of the thimble is 8 inches off the wall not the 5 inches it’s advertised.
