Quadra fire Sante fe 2005

[jcwilliams]

I had to pull everything apart to sand and paint. In the process of putting it back together I did t make note of where the wires were and what they went to.

I've looked over the wiring diagram a can't seem to get it right. Anyone have some pics or anything that might help.
Thanks

Sent from my SM-G935V using Tapatalk



[Former Farmer]

Do you have a copy of the owners manual? It should have a wiring diagram in it showing the color of the wires and to what they get connected to.

The one shown is not correct for your stove. This one shows a hopper switch, but I would think that is the only change to it.



[jcwilliams]

Yea I have the manual shows diagram close to those but the colors are not correct. Idk if I have the wrong diagram or someone has made wiring changes.
I'm kicking myself in the butt for not taking notes or pics. Ugh

Sent from my SM-G935V using Tapatalk



[kappel15]

Is your manual the one that came with the stove, or did you download one for a later year model? I have a manual for an 05 and an 06, and the colors are different. kap



[jcwilliams]

Is your manual the one that came with the stove, or did you download one for a later year model? I have a manual for an 05 and an 06, and the colors are different. kap

I'm not sure if it's the correct one or not. Could you upload your wiring diagram for me? Mines a 2005.

Sent from my SM-G935V using Tapatalk



[kappel15]

I would, but I don't know how to do that. kap



[Overfireinthehole]

Just plug them where it looks right, knock on wood and plug and pray.....



[Mike from Idaho]

Howdy all, just signed in to what appears to be a great forum. Just picked up a used 2005 quad and need to know if there is an "on off" switch that plugs into the bottom of the control panel. Trying to get this one going. I have power going to 2 pins on the control box but no lights and no fire, so I started looking around and found the plug on the bottom for what looks like a switch, one of the female inserts looked like it got shorted out... any help would help....Mike



[kappel15]

Pics would be great



[Mike from Idaho]

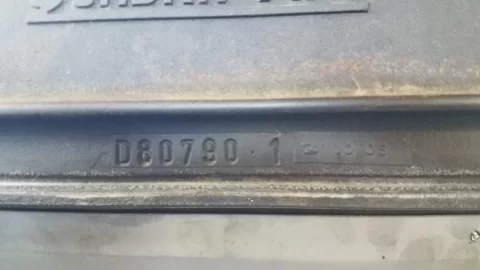

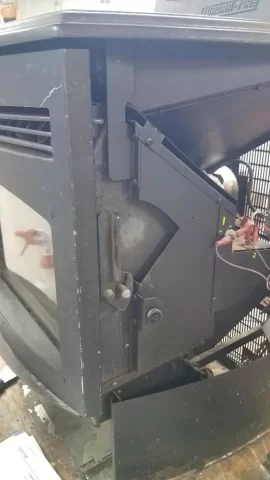

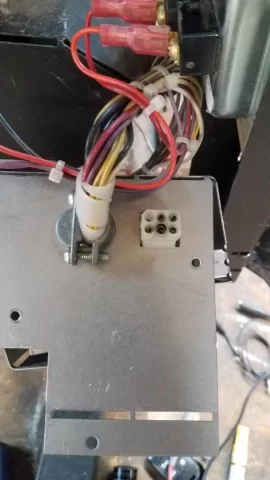

I should have known better... Here's a few of the female plug, the hinge style if that is needed for identification and the code with date...



[Mike from Idaho]

I started a new thread and will respond to that one. I will post the same photos... https://www.hearth.com/talk/threads/2005-quadra-fire-on-off-switch.179409/
