Replacing Auger Motor on Magnum Baby Countryside

brown352 Posted By brown352, Dec 4, 2017 at 4:33 PM

  1. brown352

    brown352
    Member 2.
    NULL


    Jan 18, 2014
    40
    0
    Loc:
    Cincinnati
    Hi all, we bought a new auger motor for the Magnum Baby Countryside, we can't get the old auger motor off of the auger.

    Suggestions welcome!!


    Thank you!

  2. Ssyko

    Ssyko
    Minister of Fire 2.
    NULL


    Nov 6, 2017
    1,243
    275
    Loc:
    Lorraine NY

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    brown352 likes this.
  3. brown352

    brown352
    Member 2.
    NULL


    Jan 18, 2014
    40
    0
    Loc:
    Cincinnati
    Thank you so much for the visual and the response. I don't see that.


    Attached Files:

  4. Ssyko

    Ssyko
    Minister of Fire 2.
    NULL


    Nov 6, 2017
    1,243
    275
    Loc:
    Lorraine NY

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  5. brown352

    brown352
    Member 2.
    NULL


    Jan 18, 2014
    40
    0
    Loc:
    Cincinnati

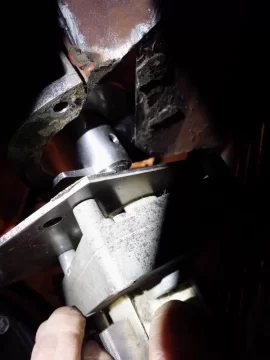

    Thank you. the area you circled had a bolt in it, that bolt was taken out completely.

  6. Ssyko

    Ssyko
    Minister of Fire 2.
    NULL


    Nov 6, 2017
    1,243
    275
    Loc:
    Lorraine NY
    Probably seized on the shaft, try some penetrating oil and tap the shaft with a wooden hammer handle to see if it free’s up. wiggle the motor around too.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    brown352 likes this.
  7. Watcher1

    Watcher1
    Member 2.
    NULL


    Sep 11, 2014
    117
    20
    Loc:
    Ironton WI
    Hope you got that off. while you are in there I would suggest you replace the bushing on the auger also. This helps keep the pellet fine dust from falling down and getting sucked into the room air fan and turned into burned black crap covering your house inside. JMO.

  8. brown352

    brown352
    Member 2.
    NULL


    Jan 18, 2014
    40
    0
    Loc:
    Cincinnati
    Thank you all so much. Finally got the motor off. Now, can someone tell me what wires go to what? I forgot to take a picture. :(

    The auger is now moving in the wrong direction, even if I cross the wires, it goes the wrong way.

  9. Ssyko

    Ssyko
    Minister of Fire 2.
    NULL


    Nov 6, 2017
    1,243
    275
    Loc:
    Lorraine NY

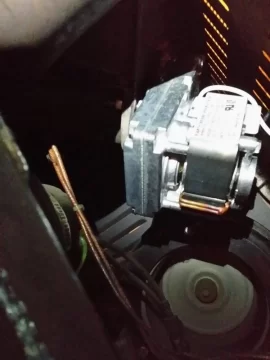

    Got the wrong rotation. Can you post a pic of the new motor, may be able to flip the coil pack and run the way you need it to run. Wire position doesn't matter

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  10. Ssyko

    Ssyko
    Minister of Fire 2.
    NULL


    Nov 6, 2017
    1,243
    275
    Loc:
    Lorraine NY

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Watcher1 likes this.
  11. brown352

    brown352
    Member 2.
    NULL


    Jan 18, 2014
    40
    0
    Loc:
    Cincinnati
    Yes, I looked at it the wrong way and got CW instead of CCW. :(


    Attached Files:

  12. brown352

    brown352
    Member 2.
    NULL


    Jan 18, 2014
    40
    0
    Loc:
    Cincinnati
  13. Ssyko

    Ssyko
    Minister of Fire 2.
    NULL


    Nov 6, 2017
    1,243
    275
    Loc:
    Lorraine NY
    I would recomend doing this operation on a table and not in the stove. There are some small washers you want to keep in the proper places.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  14. brown352

    brown352
    Member 2.
    NULL


    Jan 18, 2014
    40
    0
    Loc:
    Cincinnati
    Thank you so much for all your help!!

  15. Ssyko

    Ssyko
    Minister of Fire 2.
    NULL


    Nov 6, 2017
    1,243
    275
    Loc:
    Lorraine NY
    :) Let us know how you make out.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    brown352 likes this.
  16. brown352

    brown352
    Member 2.
    NULL


    Jan 18, 2014
    40
    0
    Loc:
    Cincinnati
    It worked perfectly! Thank you again so much for all your help. :)

  17. Ssyko

    Ssyko
    Minister of Fire 2.
    NULL


    Nov 6, 2017
    1,243
    275
    Loc:
    Lorraine NY
    Nice! :)

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
