Replacing the heating element in a glass top electric kitchen stove - not like the old days!

  • Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.

    We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.

    We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil.

Don2222

Minister of Fire
Hearth Supporter
Feb 1, 2010
9,138
Salem NH
Hello
One day while cooking supper there was a spark in the burner under the glass and poof, all the stove power went out! The 40 amp kitchen stove breaker tripped. After resetting the breaker the stove power came back on but the large front burner we used a lot, the element shorted and the middle half of the burner was out so only a few outer rings worked!
This is a Samsung NE58F9500SS and probably the hardest burner replacement you can do! So after finally getting the new burner in, 2 of the wire connectors are to small!
Can you believe that?
So I had to cut them off and use the insulated female spade lugs Like the ones used in the wood pellet stoves!! LOL
This is so complex, I took pics before I took it apart so I could get things back together like the burner hold down clip tab in the D slot of the hood down bracket!! Also pics of the before wiring help too! I would think in some cases it would be cheaper to throw the stove away?

Pic 1 - remove 4 Phillip head screws under control

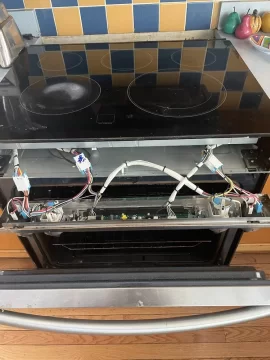

Pic 2 - remove 2 black screws that hold front of top down

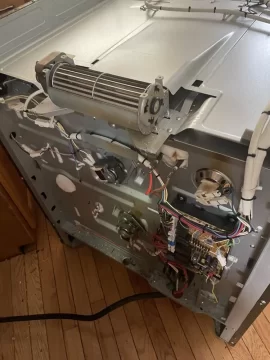

Pic 3 - remove 9 screws to remove back panel of stove to remove 2 screws that hold back of glass top.

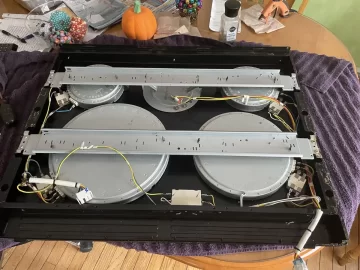

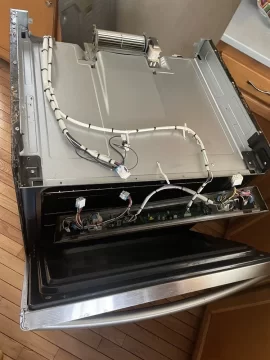

Pic 4 to 6 - remove top and flip it over and put upside down on a towel to avoid scratching. Then remove silver cover to expose burners!
Pic 7 & 8 - new burner
Pic 9 - Problem! The 2 male tabs in the forward section are smaller on the original burner so the stove wires do not clip on!

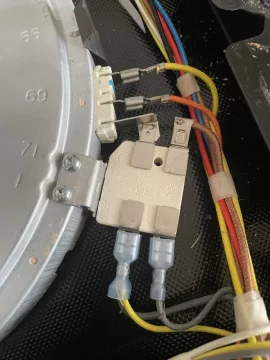

Pic 10 - cut of female connectors on stove harness, strip wires and crimp on new larger blue female spade connectors! Also clip the 3 other wires back on new burner.

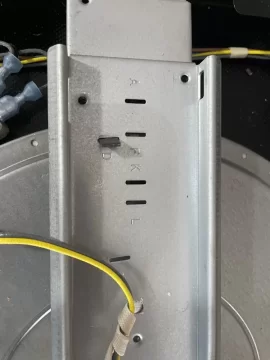

Pic 11 - Add burner hood down clips and re-install burner hood down bracket using a pic of how the hood down clips were attached to burner and which slots hold down clips were inserted into the corresponding slots on the hood down bracket

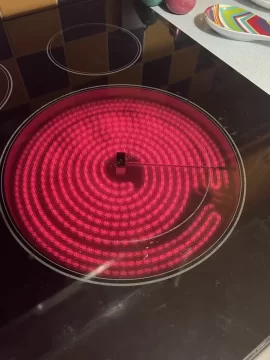

Pic 12 - turn on stove 40 amp circuit breaker and test new burner!
Anyone else have this issue??

FF7317A9-75A4-4584-A403-782CFCFD9EE2.jpeg 1F6DF412-4306-4945-ADCF-7762931BFFB4.jpeg 59836EAB-7CDE-4547-A277-2C3F36C0AB6A.jpeg 9FCC9991-070F-434C-9915-D15FC01E0C65.jpeg 67212922-2DB0-4250-A150-38CB9005234A.jpeg C1EC1211-F4A3-4458-8176-F6F2210440A4.jpeg 77B601C1-E6B6-4864-B408-A8E7DA15C06A.jpeg 3B59BE5B-CE44-4A07-AD21-95139B18696B.jpeg 5196A3A8-2173-41FD-BE26-A4801CB442DD.jpeg 5F2DFFE5-DC93-4D73-B173-D9EE56C6906F.jpeg 3CED4244-DF3F-48EC-A1AA-F868E7C1BB0C.jpeg FD4AA61E-156F-486E-BD3D-E06583755B6F.jpeg

Last edited:
  • Like
Reactions: semipro
@Don2222 Thanks for posting this. I've been wondering what it would take to replace the element in our stuff should it go out.
Could you share how much the new element cost?

@Don2222 Thanks for posting this. I've been wondering what it would take to replace the element in our stuff should it go out.
Could you share how much the new element cost?
About $150

  • Like
Reactions: semipro
Usually i just replace the stove..LOL.. i did not know it was that easy i thought for some reason you had to remove the glass. But then again i never really looked since usually by the time a burner goes the stove is 10 plus years anyway and usually time for a new. This year the dryer went and it was 15-20 years so we went through the whole house replacing all the appliances since they were all the same vintage..

Hi @Don2222, I just joined hearth.com because I found a really nice explanation of one question I have with a Kozy Heat Woodland style pellet stove. I couldn't post my question to your old thread, and I can't figure out how to send you a direct message. At any rate if you are interested in answering some simple questions about a stove you've already torn apart and fought with please let me know the right place to post or send me a note! Thanks, Mike Farrington - Bar Harbor ME

Hi @Don2222, I just joined hearth.com because I found a really nice explanation of one question I have with a Kozy Heat Woodland style pellet stove. I couldn't post my question to your old thread, and I can't figure out how to send you a direct message. At any rate if you are interested in answering some simple questions about a stove you've already torn apart and fought with please let me know the right place to post or send me a note! Thanks, Mike Farrington - Bar Harbor ME
Hi Mike
Just create a new post and ask your question and other Kozy experts can also chime in. :)
