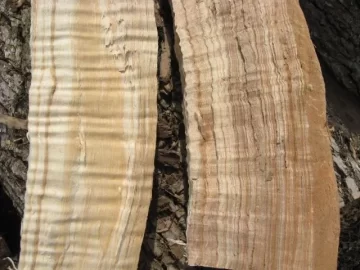

Wish I had it. Been busting up 3 ash trees that are 65+ year old yard birds. Had I known what some of it looked like inside I woulda saved some saw logs for quarter sawing boards outta.
![[Hearth.com] X-Ray vision](https://www.hearth.com/talk/data/attachments/136/136624-76d20931894b445b954de5d8f3f35d6a.jpg?hash=06CcXzvZpB "[Hearth.com] X-Ray vision")
X-Ray vision
- Thread starter Butcher
- Start date
-
Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.
We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.
We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil. -
Super Cedar firestarters 30% discount Use code Hearth2024 Click here
- Status
Michael Golden
Feeling the Heat
tigeroak
Feeling the Heat
Butcher all woods have some quarter cuts in them BUT since I have been making furniture, stripping and refinishing furniture I have not ever seen quarter sawed ash in my life. Maybe I haven't seen the right board since 1972. Neat looking wood anyway.
Paulywalnut
Minister of Fire
What you are seeing is Ray Fleck Or Medullary or Mudulla Ray ( all the same thing )
From web wood

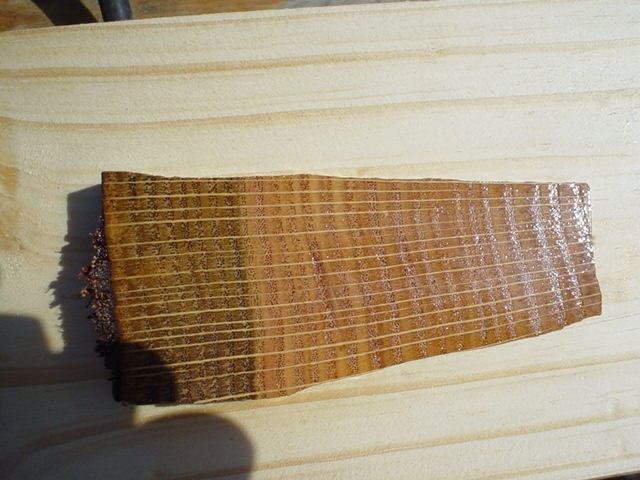

Ray fleck is caused by the presence of large rays in the wood. The ray cells run radially, so they are not special on flat sawn lumber. In radially or quartersawn lumber, they are sawn parallel to their length, so they create an interesting pattern. It is obvious only in lumber with large rays.
You can see the lines in the end of a log, and the thicker, longer, and straighter will make the best qsawn lumber. The photo is of a red oak. The lumber has rays as long as 6 inches in the boards. I look for this in logs and look for logs over 18 inches dib for the most part. Sycamore, oaks, cherry, dogwood are a few that make good rays, along with beech and others. Reading the log is important and you want to saw even with the pith to keep the rays down the face of the boards.
![[Hearth.com] X-Ray vision](/talk/proxy.php?image=http%3A%2F%2Fwww.woodweb.com%2Fknowledge_base_images%2Fzp%2Freading_a_log_for_ray_fleck.jpg&hash=6adbd3b1b3e8ad4588b7b74d5531c842 "[Hearth.com] X-Ray vision")
- See more at: http://www.woodweb.com/knowledge_base/Reading_a_Log_for_Ray_Fleck.html#sthash.DTblzcRH.dpuf
Most wood has it to some degree the log must be Quarter sawn to show the ray
Birds eye maple and tiger stripe maple are some Cherry has a very beautiful ray but hard to find
After making custom hand crafted furniture for the last 20 years I have seen most of it and seek it out.
From web wood
Ray fleck is caused by the presence of large rays in the wood. The ray cells run radially, so they are not special on flat sawn lumber. In radially or quartersawn lumber, they are sawn parallel to their length, so they create an interesting pattern. It is obvious only in lumber with large rays.
You can see the lines in the end of a log, and the thicker, longer, and straighter will make the best qsawn lumber. The photo is of a red oak. The lumber has rays as long as 6 inches in the boards. I look for this in logs and look for logs over 18 inches dib for the most part. Sycamore, oaks, cherry, dogwood are a few that make good rays, along with beech and others. Reading the log is important and you want to saw even with the pith to keep the rays down the face of the boards.
![[Hearth.com] X-Ray vision](http://www.woodweb.com/knowledge_base_images/zp/reading_a_log_for_ray_fleck.jpg "[Hearth.com] X-Ray vision")
- See more at: http://www.woodweb.com/knowledge_base/Reading_a_Log_for_Ray_Fleck.html#sthash.DTblzcRH.dpufMost wood has it to some degree the log must be Quarter sawn to show the ray
Birds eye maple and tiger stripe maple are some Cherry has a very beautiful ray but hard to find
After making custom hand crafted furniture for the last 20 years I have seen most of it and seek it out.
the knife makers use stabilized wood. basically a resin epoxy impregnation under high pressure. You wood is nice but of little value to a custom knife maker as is.

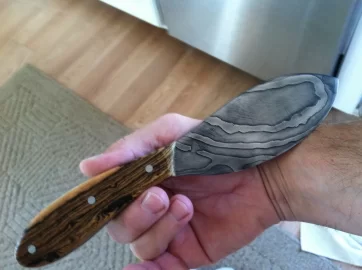

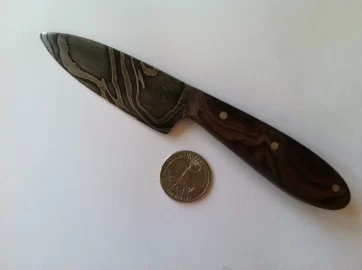

They are called knife scales, I've bought them off eBay, some are epoxy impregnated, most are not.. I use them for other purposes that don't require the durability of the epoxy. The only thing that limits the use of beautiful wood is the imagination.
![[Hearth.com] X-Ray vision](/talk/data/attachments/136/136756-14a662628561a53112cf613d82995c2b.jpg?hash=uw31KHDd1V)
![[Hearth.com] X-Ray vision](/talk/data/attachments/136/136757-1ce53eaceae789a274b46846d3bb9725.jpg?hash=cdWwK5JM8f)
Shawn Curry
Member
That's some nice looking stuff. I think "curly" ash like that is so rare, because ash tends to grow very straight and narrow.
I've seen a lot of nice character in the firewood falling from my axe; makes me cringe a little bit sometimes, but then I try to I think about how warm I'm going to be this winter.
I have a bunch of logs saved already for lumber - I'll be swimming in the stuff soon enough.
I've seen a lot of nice character in the firewood falling from my axe; makes me cringe a little bit sometimes, but then I try to I think about how warm I'm going to be this winter.
I have a bunch of logs saved already for lumber - I'll be swimming in the stuff soon enough.
Craby
New Member
What makes the wood rippled like this?
Is it that the tree at some point started leaning, and the side under compression grows with this pattern?
Everyone I ask has no clue what makes wood do this.
Is it that the tree at some point started leaning, and the side under compression grows with this pattern?
Everyone I ask has no clue what makes wood do this.
I think it comes from the areas of a tree where there is a bend. So yes the concave side of the lean.
