I was asked to share some details on how I did mine. unfortunately its already built and in the hole, but here are some models of how mine was done. there will be a picture of it finished at the end once I get home to take it. Any questions or concerns let me know.
-
Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.
We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.
We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil. -
Super Cedar firestarters 30% discount Use code Hearth2024 Click here
- Status

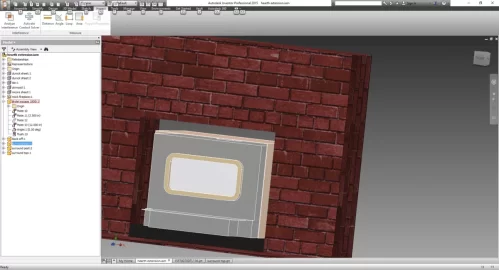

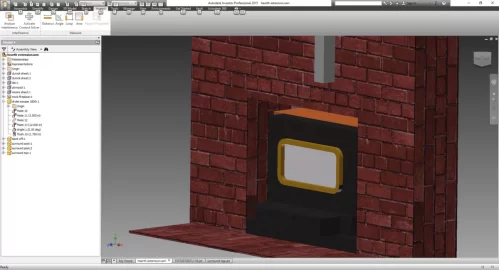

what were starting with. drolet escape 1800i. has correct outside dimensions. door's modeled a little janky. heat jacket in orange.
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185919-62b4c3e44ea8704c44de749264cab8a2.jpg?hash=-n_uRkNAmm "[Hearth.com] Custom surround for insert set into fireplace")
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185920-95107273a741a4954c6b943f5bc53f1a.jpg?hash=yloTsEC8k0 "[Hearth.com] Custom surround for insert set into fireplace")
Last edited by a moderator:
bent sheet metal side post. reversible for both sides. if your insert is centered you can make them identical. better off to measure both sides tho.
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185921-878ca00722a01fbfc8deec6784a44fd6.jpg?hash=65GJDliKnH "[Hearth.com] Custom surround for insert set into fireplace")

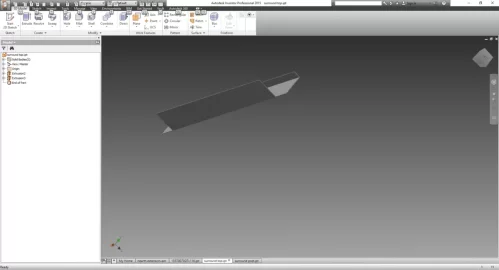

bent sheet metal top.
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185922-3cf8a3b350aee43d1aeedb3bd8e48b1e.jpg?hash=deJlIpzWkH "[Hearth.com] Custom surround for insert set into fireplace")
another view of the top.

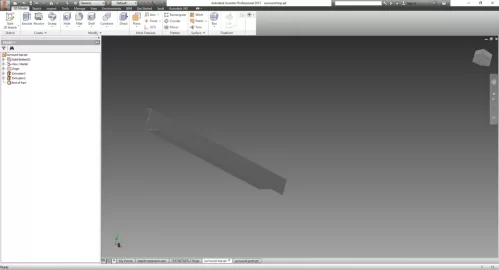

![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185923-b80e1bf4a32c9aa3f6ef044f1ab63c80.jpg?hash=boGfKUPdVZ "[Hearth.com] Custom surround for insert set into fireplace")
bent sheet metal top.
another view of the top.
Last edited by a moderator:
how it goes together. you can paint it ahead of time but there will probably be touch up work needed.
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185925-59bbbf7a66dd0282bfd215d9b353fdb1.jpg?hash=CcfRhzpzkw "[Hearth.com] Custom surround for insert set into fireplace")

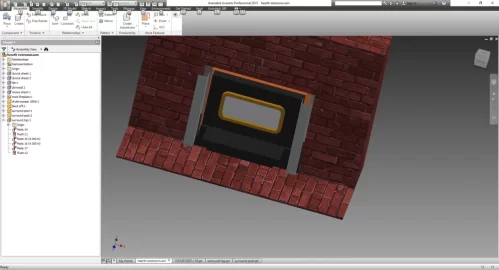

install 2 side posts first. when you bend these don't go quite to 90. the idea is it springs itself in between the heat jacket and masonry. if done correctly they hold themselves in place or close. also both sides can be the same length. I offset mine. on leg is 3" the other is 1" I had to clear a masonry piece you probably wont have. picture everything in this install sliding straight in from the front.
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185924-4b4ed9da44e27b7b85068ebc6ecddb6a.jpg?hash=yHbHoGprKy "[Hearth.com] Custom surround for insert set into fireplace")

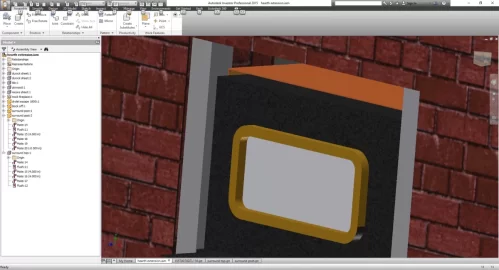

notice how it springs in between the masonry and heat jacket when installed. this is the idea for all three pieces. if you can make the two legs the same length go for it so the side posts dont want to cock sideways on you. I could not do this for my install(clearance). notice there is no interruption of forced air. Drolet's surround mounts to a panel that is between the heat jacket and stove mounted on one bolt. seems like the surround was an after-thought almost.
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185926-2ab0018796649522032b0aa163d02608.jpg?hash=2M5qW3U-V_ "[Hearth.com] Custom surround for insert set into fireplace")

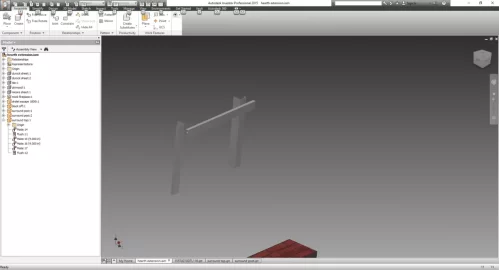

top ready to slide straight in. springs the same similar to the sides but is different as explained below. see where it will overlap the sides this is where you will rivet it.
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185927-88c71a1e4df692cd69aad0e5b2855e21.jpg?hash=uNQNFX2hBg "[Hearth.com] Custom surround for insert set into fireplace")

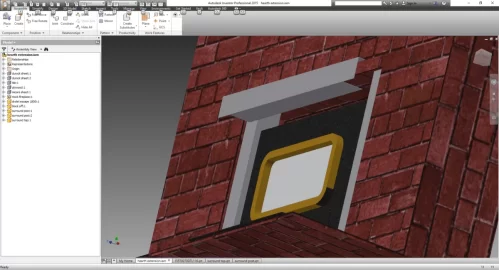

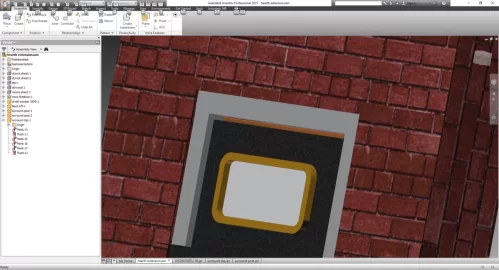

in place. on the drolets and other sbi stoves theres a lip in the front on the heat jacket bent 90° up so you will either have to test fit the top and trim to butt up to the lip or just make it so it springs against the top of the lip (what I did).
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185928-e46721a452d0380448938df731fbca0f.jpg?hash=3QpZRlhpJL "[Hearth.com] Custom surround for insert set into fireplace")

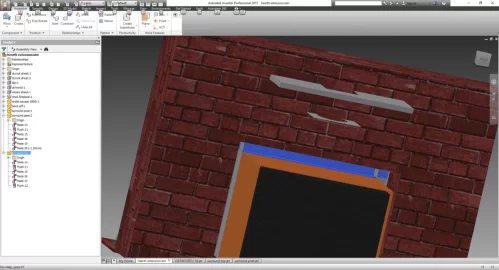

rear view. orange is heat jacket.
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185930-e7bae71316cc8f906354ea21a651f47a.jpg?hash=wStDyP8MT3 "[Hearth.com] Custom surround for insert set into fireplace")
I put two rivets in the top left and top right corners. once riveted its pretty solid but you can kind of move it if you want in order to square it to the insert or brick or whatever. just remember when you're making your parts that you do not want this thing to fall perfectly into place. you want to have to bend and tweak it and trim it some for that perfect fit. I also just painted mine after it was installed but I also have 4 windows within 10 ft of it. you'll probably have to touch up no matter what due to that perfect fit. hang some plastic sheeting and open a window. it takes three times as long to protect your things as it does to paint. maybe find a different way to paint it. what I did worked well for me.
I'll get a pic of the real deal uploaded tomorrow. Hope this helps get somebody wheels turning.
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185931-d4d4816b75c43b0f2054ecf6957a1914.jpg?hash=lFieduHn3W "[Hearth.com] Custom surround for insert set into fireplace")

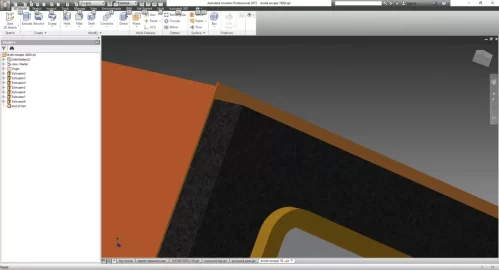

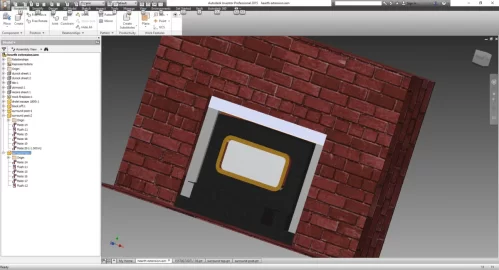

top lip I was talking about.
![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/185/185932-13d2d5c809b38e439c8ec07159da2ad5.jpg?hash=yaaTVeRC0B "[Hearth.com] Custom surround for insert set into fireplace")
install 2 side posts first. when you bend these don't go quite to 90. the idea is it springs itself in between the heat jacket and masonry. if done correctly they hold themselves in place or close. also both sides can be the same length. I offset mine. on leg is 3" the other is 1" I had to clear a masonry piece you probably wont have. picture everything in this install sliding straight in from the front.
notice how it springs in between the masonry and heat jacket when installed. this is the idea for all three pieces. if you can make the two legs the same length go for it so the side posts dont want to cock sideways on you. I could not do this for my install(clearance). notice there is no interruption of forced air. Drolet's surround mounts to a panel that is between the heat jacket and stove mounted on one bolt. seems like the surround was an after-thought almost.
top ready to slide straight in. springs the same similar to the sides but is different as explained below. see where it will overlap the sides this is where you will rivet it.
in place. on the drolets and other sbi stoves theres a lip in the front on the heat jacket bent 90° up so you will either have to test fit the top and trim to butt up to the lip or just make it so it springs against the top of the lip (what I did).
rear view. orange is heat jacket.
I put two rivets in the top left and top right corners. once riveted its pretty solid but you can kind of move it if you want in order to square it to the insert or brick or whatever. just remember when you're making your parts that you do not want this thing to fall perfectly into place. you want to have to bend and tweak it and trim it some for that perfect fit. I also just painted mine after it was installed but I also have 4 windows within 10 ft of it. you'll probably have to touch up no matter what due to that perfect fit. hang some plastic sheeting and open a window. it takes three times as long to protect your things as it does to paint. maybe find a different way to paint it. what I did worked well for me.
I'll get a pic of the real deal uploaded tomorrow. Hope this helps get somebody wheels turning.
top lip I was talking about.
Last edited by a moderator:

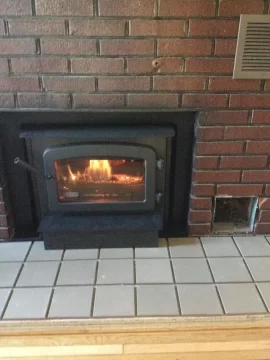

![[Hearth.com] Custom surround for insert set into fireplace](https://www.hearth.com/talk/data/attachments/186/186527-0e22de12389b0a790ede18a5586476ea.jpg?hash=1dOuM-M22a "[Hearth.com] Custom surround for insert set into fireplace")
That looks really good! I bought the same stove last year with the giant sized surround as a kit on sale.
I wanted to do something similar to mine but my wife kept insisting i was crazy because it was all done and working.
It looks way better than the giant face i have i might copy you!
I wanted to do something similar to mine but my wife kept insisting i was crazy because it was all done and working.
It looks way better than the giant face i have i might copy you!
do it. big surround they sell woulda covered my grey side vent things or been right up to them. woulda looked goofy.
Nice, next step would be to put some river rock over those vents
That would drive me more nuts than the surround.
That would drive me more nuts than the surround.I actually don't mind the vents with the covers on. do you have a picture of the river rock thing you're talking about though? I'm struggling with visualization of that.
@FuzzyOne 's install is a good start.
https://www.hearth.com/talk/threads/remodeled-my-fireplace-insert.157331/
oh you mean the whole face. that does look nice. This is just my first home though and I plan on upgrading in the next few years so I don't want to put too much more into it than I already have. maybe on the next one.
