Fixing a broken or corroded speaker terminal almost like OEM

Don2222 Posted By Don2222, Aug 8, 2018 at 8:10 PM

  1. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    8,252
    535
    Loc:
    Salem NH
    Hello
    Just had a mishap and the almost new speaker fell the wrong way. The Banana jack on the back of the Dual LU53PW speaker broke!

    So final cost was $12 for the banana jack plate but if you wanted a lower budget and easier fix, just drill a hole under the banana jacks on the speaker and bypass the jacks and just run a wire thru the hole and tape it to the ones inside.

    Has anyone else done this??

    Pic 1 - Indoor outdoor speaker
    Pic 2 - broken black negative banana jack connector.
    Pic 3 - Gently pry off grill starting in upper right corner using a pick probe
    Pic 4 - Remove 6 Phillip head screws and remove from speaker mounting panel with speakers atteched
    Pic 5 - Remove nut that holds old banana jack
    Pic 6 - cut black potting compound to remove connector wire and lug

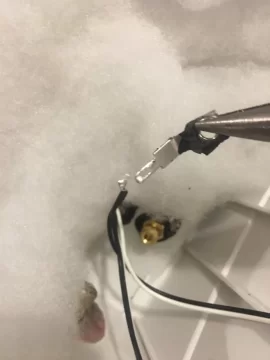

    Pic 7-8 Remove lug and desolder wire from it.

    Search words
    fixing dual speaker jack Corrosion or break


    Attached Files:

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  2. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    8,252
    535
    Loc:
    Salem NH
    More Pics
    Pic 9 - wire desoldered from lug
    Pic 10 - new banana jack from Home Depot
    Pic 11 - remove correct color bananka jack (black in this case.
    Pic 12 - drill 3/8 hole in speaker cabinet to accept new Banana jack - Start with smaller bits and work up to prevent gouging
    Pic 13 - insert new banana jack and tighten with holding but then insert wire in hole and put cap on and tighten cap with screw drive
    Pic 14 - test with 9 volt battery
    Pic 15 - Screw in speaker board and insert grill gently
    All done & tested!


    Attached Files:

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  3. Don2222

    Don2222
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    8,252
    535
    Loc:
    Salem NH
    Hello
    I really like this 9 volt speaker test trick!
