Identity of this Soapstone stove for me? Hearthstone Harvest

[gpcollen1]

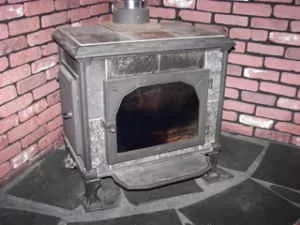

Just looking for some info on the make/model so I know 'something' prior to looking at it. Only asking $600 so I figure it probably has a few years on it.

Any other wear and tear to look for tips besides the normal cracks and warpage?



[yukiginger]

I sure wish Hearthstone would put some info. with images on their website about their "classic" models, as these things keep popping up.

It's definitely a Hearthstone. I am no expert, but their early models were large stoves (I gather this because I've never seen a really old small one) and the models were Hearthstone I, Hearthstone II and Hearthstone III. Most of these had double front doors, however. The one pictured has a single door which means it could be an early Mansfield. The Mansfield was until very recently the largest in the Hearthstone line, having replaced the aforementioned I, II and III.

If you can verify that it is a Mansfield without major damage that is a very good asking price.

MarkG



[Todd]

Looks like the eary Heritage model. I believe the Hearthstone I and II models were cats?



[gpcollen1]

I sure wish Hearthstone would put some info. with images on their website about their "classic" models, as these things keep popping up.

MarkG

I agree. Most of us folks do not mind searching when you can actually come up with some answers. Some manufacturers do a great job with this.



[Highbeam]

Would be a bugger to use the side load door which I believe is an extremely useful feature. That stove burns so clean that you don't even need a chimney.

Maybe it was just staged there.



[gpcollen1]

Funny - Double wall pipe comes with it so I think they took it down already.



[gpcollen1]

Just an FYI - this is supposedly a Hearthstone Harvest - about 10 years old. I did a few searches trying to get more info but nothing. He has the manual so I will find out when I get there.



[yukiginger]

I've heard of the model. The style looks somewhat like the current Heritage, so perhaps it's the predecessor. You could email Hearthstone in advance about the general design and parts availabilty in case you get there and it's somewhat "needy."

[email protected]



MarkG



[thechimneysweep]

It sure looks like a Harvest. If so, it's at least 13 years old: Hearthstone discontinued it in 1995. You can read more info about this abandoned child right here on the forum at https://www.hearth.com/talk/threads/18119/



[STOVEGUY11]

Model: Harvest "Mod" #8402
Production Dates: 1989 - July 1992
Serial #: 000376-001001
Note: Color must be specified for cast iron parts which are available in enamel.
Key Part # Description
3 1421-51 Front Bottom Stone 2 3/4" x 8 1/2"
4 1421-52 Front Top Stone 3 3/4" x 8 1/2"
5 1421-53 Front Corner Stone 9 1/2" x 3 19/32"
6 1421-54 Left Side Top Stones 4" x 6 11/16"
7 1421-55 Left Side Bottom Stones 2 3/4" x 6 11/16"
8 1421-56 Right Side Stones 6 11/16" x 9 1/2"
9 1421-57 Top Center Stone 8 1/32" x 9 1/2"
10 1421-58 Top Stones Left/Right 8 1/32" x 15 5/8"
11 1421-59 Left Side Vertical Stone 12" x 1 1/4"
13 94-58422 Ash Latch Assembly
Includes:
Ash Pan Handle
Ash Pan Latch
3/16" x 1" Spirol Pin
Ash Pan Shaft
14 94-58420 Side Door Latch Assembly
Includes:
Side Door Handle
Side Door Latch
3/16" x 1" Spirol Pin
15 2421-211 Firebox Exit Guard
16 94-58421 Front Door Latch Assembly
Includes:
Front Door Handle
5/16" x 3/8" Screw
17 2421-219RS Front Door
18 2421-221RE Front Door Outer Frame
19 2010-510 Side Door
20 2421-230RR Side Door Interior Frame
21 2421-239 Primary Air Intake Tube
22 2421-242 Primary Air Manifold
6/2/2003 Harvest Mod 8402.xls
23 94-58430 Damper Assembly
24 2421-250 Reverse Flue Cover Plate
25 2421-273 T-Handle
26 2510-303 Bottom Foot
27 2421-316 Glass Retention Frame
31 2421-341 Andiron
33 2421-343 Bottom Casting
34 2421-344RI Side Door Exterior Frame
35 2421-345 Top Casting
36 2421-347 Front Door Inner Frame
37 2421-348 Chamber Back
38 2421-349 Ash Grate Top
39 2421-350 Ash Grate Base
40 2421-351 Ash Lip
41 2421-352 Ash Grate Handle
42 2010-900 Flue Collar
43 2421-354 Back Panel
44 2010-300 Corner Posts
46 94-58490 Catalytic Tray Assembly
Includes:
Ceramic Board #3
Ceramic Board #4
12" x 25" x 1/4" Ceramic Blanket
Harvest Tray Cap
Harvest Combustor Tray
47 N/A Catalytic Combustor
48 94-58405 Glass Replacement Kit
Includes:
Front Door Glass
Gasket: Tape 3/4"x 5' Adhesive Backed
59 3900-122 1/16" Brass Rod
80 94-58491 Combustor Tray Housing
81 94-58489 Rear Cover Assembly
Includes:
Rear Cover Support Gasket
Bi-metalic Coil
Rear Cover
(3) Rear Cover Bracket
Combustor Anchor Bracket
Plenum
Valve
(9) Rivet 1/8" x 1/8"
(7) Rivet 1/8" x 1/4"
6/2/2003 Harvest Mod 8402.xls
Ceramic Board #10
Ceramic Board #11
(2) Ceramic Board #12
Ceramic Board #13
82 5100-2295 Chamber Baffle
95 5400-2215 Air Wash Control
96 5400-2318 Front Latch Keeper
99 5400-2241 Primary Air Cover
100 94-58423 Damper Handle Assembly (cast)
Includes:
Harvest Damper Rod
3/16" x1" Spirol Pin
103 94-58400 Primary Air Control Assembly
Includes:
Harvest Primary Air Control Arm
Harvest Primary Air Manual Lever
Harvest Primary Air Plate
8-32 Nut
1/4-20 x 1/4" Machine Screw
8-32 x 3/4" Machine Screw
Throttle Stop
3/16" Door Click Bearing
5mm x 14.5mm Inconnel Spring
106 94-58456 Ash Drawer Assembly
Includes:
Harvest Ash Pan Latch
Harvest Ash Pan Door
Harvest Ash Door Handle
(1.88') Gasket: Rope 3/8" Adhesive Backed
(2) 1/4-20 Lock Nut
3/16" x 1" Spirol Pin
(2) 1/4-20 x 1" Machine Screw
5/16-18 x 1/4" Set Screw
Handle Crank
Ash Pan Shaft
107 5920-2289 Rear Shield
108 5400-2018 Firebox Exit Guard Cover (Stainless Steel)
94-58401 Gasket Kit
94-58402 Rear Cover Gasket Kit
Includes:
Ceramic Blanket 12" x 25" x 1/4"
Gasket Glue
6/2/2003 Harvest Mod 8402.xls



[Jags]

Whoa, Stoveguy, Now thats what I call "going above and beyond".



[STOVEGUY11]

I've got a Cd-rom with all the Hearthstone Stove blow ups.



[gpcollen1]

yeah, thanks for that. I did not realize they had a cat back then.
