    Hi all,

    Thanks for everyone's advice on here regarding installing the liner. Still have some adjustments to make thanks to bholler. I want to make sure I have everything to properly install the insulated liner to the stove.

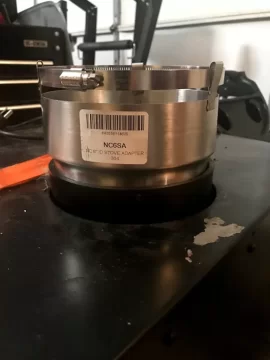

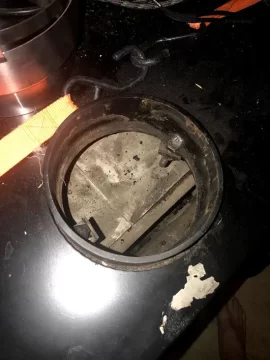

    Below are some pics of the coupler I received in the kit from rockford chimney supply and the stove. So how does all this fit together? The coupler "necked" down slips into the stove until it hits the bolts inside that hold the removable flue collar. The other end will not fit over the insulated section. It probably would fit if I peel the outer wall and insulation off. I do have a section of liner that I can experiment on. Advice on the proper way to install this? Do I need extra parts? Thanks!


    Attached Files:

  2. bholler

    bholler
    Chimney sweep 2.
    NULL

    Staff Member

    Jan 14, 2014
    17,954
    4,154
    Loc:
    central pa
    Remove the insulation. The bare liner should slip into that stovetop adapter.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  3. webby3650

    webby3650
    Master of Fire 2.
    NULL


    Sep 2, 2008
    10,115
    2,971
    Loc:
    Indiana
    You want to trim some of the stovetop adaptor so it can either sit down flush with the top of the collar, or notch around the bolts so it can sit down farther. Just make sure the adaptor doesn’t protrude below the stovetop. Are you positive a straight adaptor will work? We rarely get by without using an elbow on the stovetop. It happens, but not all that often.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    bholler likes this.
  4. bholler

    bholler
    Chimney sweep 2.
    NULL

    Staff Member

    Jan 14, 2014
    17,954
    4,154
    Loc:
    central pa
    I second what webby said about the elbow. It is rare we can use a straight.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  5. jpcjguy

    jpcjguy
    Member 2.
    NULL


    Jul 1, 2015
    56
    5
    Loc:
    richmond, va
    Thanks for info everyone! I am not sure I need an elbow. My opening is 29" tall and I measured inside to the top of the fire brick and it is 39".

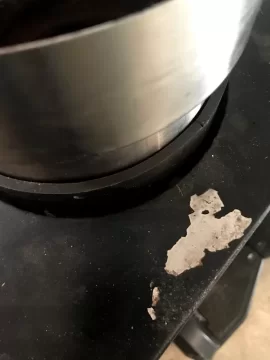

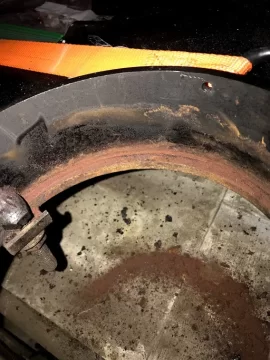

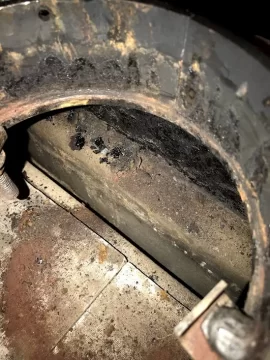

    I measured the adapter on the stove and it is 24" tall and that is with it not seated because of the bolts inside. Once seated, it is probably about 23" tall. I was inspecting the collar to stove area where a gasket is supposed to go. I scraped away some remnants of gasket material and it looks like a good seal still - but should I put a new one in or leave it alone? Attached are some pics. I did a quick search and found this gasket that matches the part number - is this superwool any good? https://www.amazon.com/dp/B078C9CDDX/?tag=hearthamazon-20

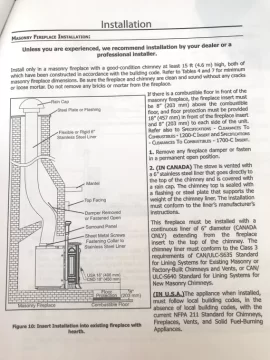

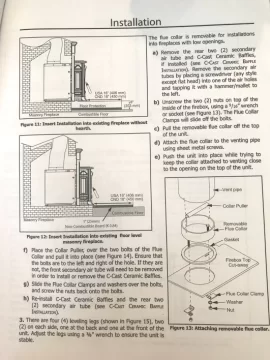

    Regarding the adapter, it just slides into the collar? After I notch it will sit flush on the collar see picture adapter1.jpg in 1st post but there will not be an actual "seal", is that acceptable? The instructions say to just use sheet metal screws to attach the pipe to the collar - should I skip the adapter and just put the pipe (after I strip the outer wall and the insulation) into the collar directly?


    Attached Files:

  6. jpcjguy

    jpcjguy
    Member 2.
    NULL


    Jul 1, 2015
    56
    5
    Loc:
    richmond, va
  7. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,246
    12,538
    Loc:
    South Puget Sound, WA
    Use the adapter to insert and attach the liner to the flue collar. That will provide a much more substantial thickness of metal to attach to. Are you concerned about a gap and if so, how large a gap will there be? If there is a thin gap it can be filled with stove cement.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    webby3650 likes this.
  8. Ctwoodtick

    Ctwoodtick
    Minister of Fire 2.
    NULL


    Jun 5, 2015
    1,024
    400
    Loc:
    Southeast CT
    Did you mean “use adapter to insert and attach the liner to the adapter”?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  9. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,246
    12,538
    Loc:
    South Puget Sound, WA
    The adapter goes between the insert and the liner. It provides a clamp on one end for fastening to the liner and a stainless sleeve on its other end to insert into the flue collar.


    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  10. jpcjguy

    jpcjguy
    Member 2.
    NULL


    Jul 1, 2015
    56
    5
    Loc:
    richmond, va

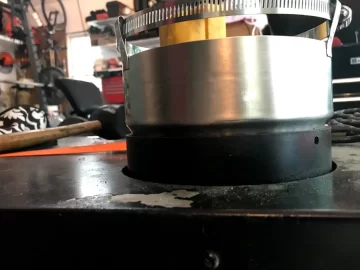

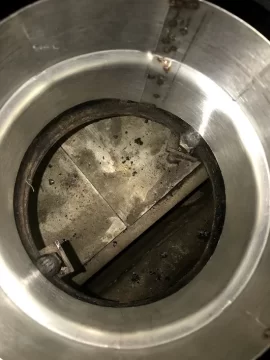

    Thanks for the feedback - so here is the adapter in the flue collar and I have pressed against the other side. The gap is minimal, but regardless I should use some stove cement in addition to the sheet metal screws?


    Attached Files:

  11. bholler

    bholler
    Chimney sweep 2.
    NULL

    Staff Member

    Jan 14, 2014
    17,954
    4,154
    Loc:
    central pa
    Cut the adapter so it seats all the way down and you won't need anything.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    begreen and webby3650 like this.
  12. jpcjguy

    jpcjguy
    Member 2.
    NULL


    Jul 1, 2015
    56
    5
    Loc:
    richmond, va
  13. jpcjguy

    jpcjguy
    Member 2.
    NULL


    Jul 1, 2015
    56
    5
    Loc:
    richmond, va

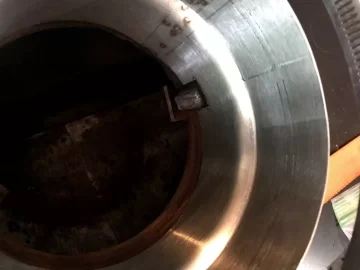

    So I am coming back to this. I have cut the adapter so it fits over the screws. It still does not seat all the way but I think it is good.

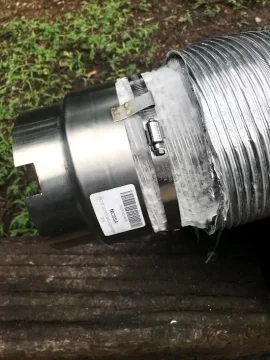

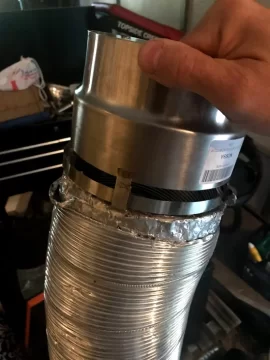

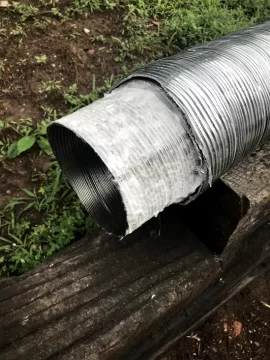

    I also had some extra liner so I peeled back the outer layer and the insulation and test fit the adapter. On the actual liner, I will cut the outer liner just above the screw band. Do I need to do anything with the little bit of insulation left on the liner? Cover it, remove every trace, or just leave it?

    Thanks!


    Attached Files:

  14. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,246
    12,538
    Loc:
    South Puget Sound, WA
    Just leave it.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  15. jpcjguy

    jpcjguy
    Member 2.
    NULL


    Jul 1, 2015
    56
    5
    Loc:
    richmond, va
    Thanks! So now to figure out how to muscle this 409 pound monster into the house and up onto the hearth which is a foot off the floor.

  16. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,246
    12,538
    Loc:
    South Puget Sound, WA
    Put wheels on the beast. Ratchet strap it to an appliance dolly so that it becomes one with it. Then it should be pretty easy to roll in place. 3 guys should be able to lift it onto the hearth.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  17. jpcjguy

    jpcjguy
    Member 2.
    NULL


    Jul 1, 2015
    56
    5
    Loc:
    richmond, va
    That is what I am planning.. Using ramp into the house and have it on a furniture dolly. Then lift it in place with 3 of us. I have some 1/2" PVC I have cut into 28" lengths that we can use to roll it into the fireplace (Egyptian style!)

  18. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,246
    12,538
    Loc:
    South Puget Sound, WA
    If you have a sheet of metal, lay that on the hearth. Then the insert will slide right in, without scratching the hearth.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  19. jpcjguy

    jpcjguy
    Member 2.
    NULL


    Jul 1, 2015
    56
    5
    Loc:
    richmond, va
  20. jpcjguy

    jpcjguy
    Member 2.
    NULL


    Jul 1, 2015
    56
    5
    Loc:
    richmond, va

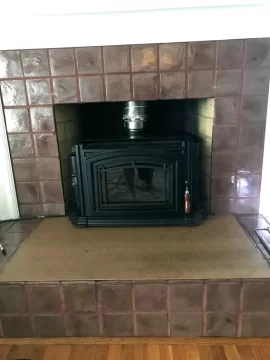

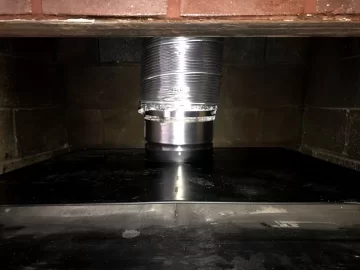

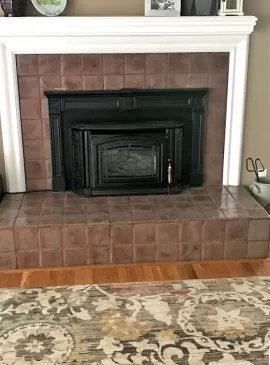

    Got it in place! That was not fun. There is not a lot of "up" movement in the pipe to get it seated as I slid the unit in.


    Attached Files:

  21. jpcjguy

    jpcjguy
    Member 2.
    NULL


    Jul 1, 2015
    56
    5
    Loc:
    richmond, va
  22. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,246
    12,538
    Loc:
    South Puget Sound, WA
    Looks great!
