Need help assembling stove

[Agiancarli]

Hi,

I recently came in possession of a wood stove. Plate on rear of stove reads, “China Metal Products Co., LTD. Mode: CM115A-T. ICBO No. 3468

It came in pieces and I am trying to assemble the stove. Out side box assembly is pretty straight forward. Having trouble figuring out how the internal pieces go together. Any help would be greatly appreciated. I can post pics if someone could help me. Thanks, Anthony.



[Jan Pijpelink]

Can you send us a picture? Did you buy it your self? On Line? If so, forward us the link to the website, so we might be able to help.



[begreen]

Pictures of the stove in its current state of assembly and of the interior of the stove will help. Did it come with any documentation?



[Agiancarli]

Hi Jan and begreen,

Thank you for your replies. Sorry for late response. Long day at work.

I picked this stove up on craigslist. It came with no documentation. Just the info plate on its rear. See previous post.

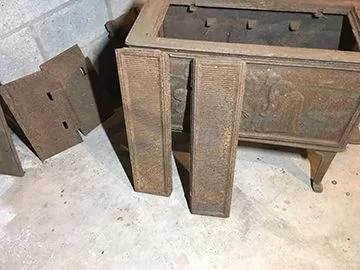

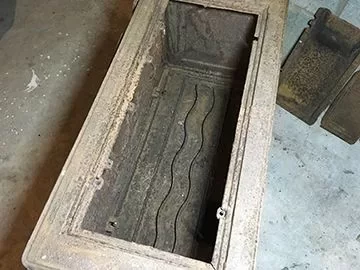

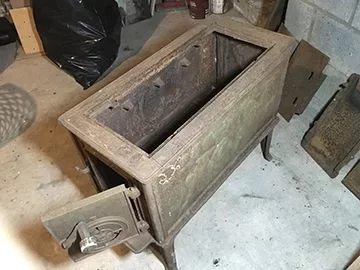

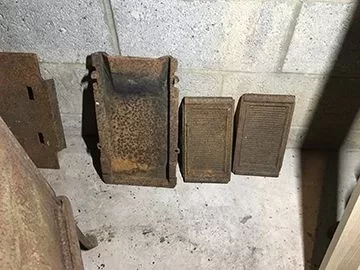

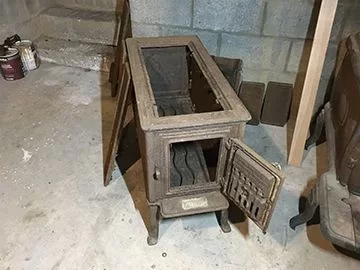

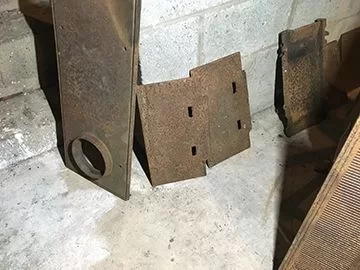

I have uploaded pics of the front and side of the stove along with photos of the internal pieces.

I have tried to search the web for an instruction manual or guides, but to no avail.

Thank you both for your help.

Anthony



[DAKSY]

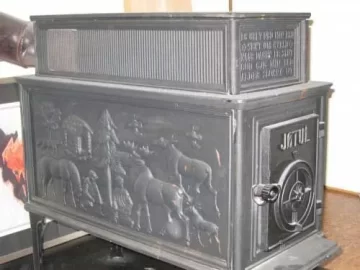

Looks like a Jotul Black Bear knock off. Some of those parts you labelled as inside,
are actually the upper body parts...See the Black Bear Image below...



[Jan Pijpelink]

Where in NJ are you? We have quite some members in NJ, including me, and some might offer some help. Have you removed all the rust already?

As @DAKSY said, most likely a knock off. Maybe a Scandia. You might want to search www on drawings and parts, to find out which part goes where.



[begreen]

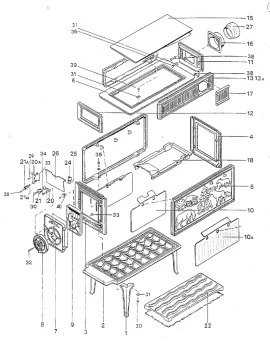

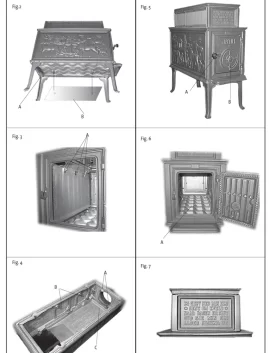

Yes, it's a knock-off of a Jotul F118. Here are some pics and diagrams for that stove. Put in the side burn plates first, then seat the baffle on top of them.
