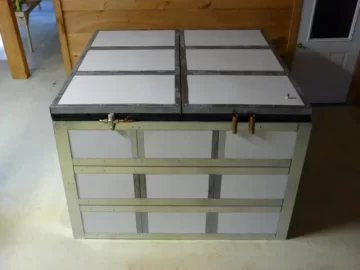

    Just wanted to post a photo of a new tank that our company is producing. This is an 800 gallon tank. It has 4.5" polyiso walls with a 4" cover and a 3" base.
    The liner is 180F continuous proprietary polymer liner that can tolerate 200F intermittently.
    Our heat exchangers are copper. The DHW unit has a Sparco antiscald valve on it. It is on the left side of the enclosed photo. The space heat exchanger is on the right side and is rated for 100K at a 20 degree delta T.

    We are just starting up and will be in full production within a month. Our first shipment is for a major wood gasifier company here in the Northeast.
    We will be selling through them.

    The product is called Heat Bank and is made in Maine.
    We will be offering other sizes within a month.

    Will be posting more soon.
