Out with the Old in with the New. Froling Install.

huffdawg Posted By huffdawg, Jul 13, 2016 at 8:04 PM

  1. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    Froling install as it happens image.jpeg

    velvetfoot likes this.
  2. BoiledOver

    BoiledOver
    Feeling the Heat 2.
    NULL


    Apr 14, 2013
    393
    140
    Loc:
    Right Here
    Nice upgrade, congrats to you. Did the EKO 40 fail and how long did you run it?

  3. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    The EKO never failed but had lots of issues I got sick of dealing with.

    - Doors seals were a pita.. always replacing and repairing.
    - Doors were orientated opposite to what worked best for my boiler room configuration.
    - fan very seldom shut off after burning a load.
    -Controller went kaput
    -Fan capacitor went kaput.
    -refractory bricks prone to cracking into pieces.
    - not conducive to loading while burning.
    -bypass damper always made me nervous .. especially when wife or kids were operating.. (forgetting to shut)

    Also the froling will have more output .. will give me a little more punch in the coldest spells and efficiency should be better .

  4. maple1

    maple1
    Minister of Fire 2.
    NULL


    Sep 15, 2011
    7,302
    1,260
    Loc:
    Nova Scotia
    Looking forward to the rest of this story!

  5. Ashful

    Ashful
    Minister of Fire 2.
    NULL


    Mar 7, 2012
    10,178
    4,272
    Loc:
    Philadelphia
    Watching...


    Sent from my iPhone using Tapatalk

  6. velvetfoot

    velvetfoot
    Minister of Fire 2.
    NULL


    Dec 5, 2005
    9,633
    755
    Loc:
    Sand Lake, NY
    You know you want one!

  7. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    Sorry for the delay.. after all the smoke damage I decided to clean up and repaint, also tidy up some wiring.

  8. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    74b284a0ee061bc849ac7f3707f4562a.jpg . Lifting the boiler up to get the pallet out , next trick getting it into the boiler room.

    Chris Hoskin likes this.
  9. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada

    Removed the old 4 way esbe valve and install an opped circ. pump . Will also be repiping the supply to the shop floor heating . Its the second pipe from the top of the buffer tank on the left. I will plumb it to the next valve down on the left which was the return and adding another penetration below that for the new return. Hopefully I will get a little better stratification.

    Huff

  10. lotawood

    lotawood
    Member 2.
    NULL


    Dec 11, 2011
    69
    1
    Loc:
    montana
    Nice choice of boiler.

    I think it is not recommended to have your pump electrical switch panel below the pump, like you have in the rear pump.

  11. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    Those arnt switches they are outlets . They are not hot anymore .. They were for the previous boiler. The froling is 240. I'll prolly convert that heater to the 240 power source.

  12. warno

    warno
    Minister of Fire 2.
    NULL


    Jan 3, 2015
    842
    225
    Loc:
    illinois
    I might be wrong but I think lotawood was talking about the electrical box on the pump housing itself. I think the electrical orientation always lands the box either on the top or side of the pump motor.

  13. maple1

    maple1
    Minister of Fire 2.
    NULL


    Sep 15, 2011
    7,302
    1,260
    Loc:
    Nova Scotia
    Thinking you may be right.

  14. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    I just fitted those pumps together to fit the copper pipe, its not permanent the one on the right I stole from shop floor loop. But thanx for the heads up.:)

  15. lotawood

    lotawood
    Member 2.
    NULL


    Dec 11, 2011
    69
    1
    Loc:
    montana
    I didn't even notice the outlets.

    I remembered from the instructions that came with the Grundfos pumps recommended not orienting the electrical connection panel, where the three speed switch is located, underneath the pump. It just looks like the rearward pump has that panel below the pipeline. I assumed that was to prevent water from dripping down into the electrical connections, if it ever leaks.

    The front (left) pump looks like the switch/electrical is above the pipeline.

  16. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    f41b7aa384bda7f76976e54a1ae558b6.jpg moving the froling into the boiler room. I have a 2 tonne floor jack lifting from the front.

    hobbyheater likes this.
  17. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    41c3f22c59788633b9f03eb79bb9f08a.jpg fee8d8cc96cd18281a6b5a5112ee197a.jpg In position

    hobbyheater likes this.
  18. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    e6ea37405adeb3e99ac1eb3cc1017ff5.jpg can any froling owners tell me if these turbs are orientated properly in the actuator mechanism properly?
    The instructions are a little vague.

  19. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    ef5883b2d46c91ddb00916048dcae728.jpg installing exterior cladding

    hobbyheater likes this.
  20. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada

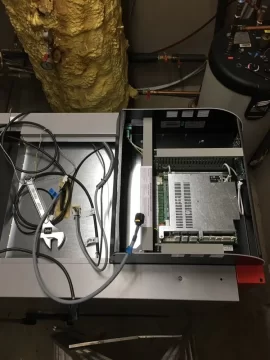

    Running cables through trays and terminating connections a396e098ba702f5324dd76bcad8fb5b7.jpg

    hobbyheater likes this.
  21. velvetfoot

    velvetfoot
    Minister of Fire 2.
    NULL


    Dec 5, 2005
    9,633
    755
    Loc:
    Sand Lake, NY
    I imagine you had to take the cladding off to get it through the door or something, but it's also nice that it didn't get dinged up while moving.

  22. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    None of the cladding was on . Pretty much the whole thing had to be assembled.. But it would not have fit through the door with the cladding on.. Definitely a lot of attention to detail went into it all, from the cable trays, strain reliefs, pin connectors, to door design and latching method .

  23. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada

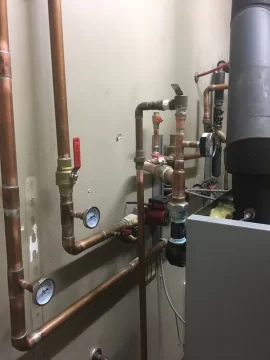

    Done the near boiler plumbing in Copper.. (very time consuming) pretty much ready for the inaugural fire. 24e12eeb665dd17f4099dafd5b6c65e6.jpg ba00620beef6f7c8661b397abc1e38d4.jpg 582a950607d15849f7ecf3964fc4cf2f.jpg a4a65c98c6b96d2e3aaa60113ec5fe9f.jpg ff67076b36833bf0efd234463d4d1a09.jpg

    velvetfoot likes this.
  24. velvetfoot

    velvetfoot
    Minister of Fire 2.
    NULL


    Dec 5, 2005
    9,633
    755
    Loc:
    Sand Lake, NY
    How much will the Froling control things vs, the Vesta? The Froling has some capabilities in this area, no?

  25. huffdawg

    huffdawg
    Minister of Fire 2.
    NULL


    Oct 3, 2009
    1,406
    104
    Loc:
    British Columbia Canada
    The froling will modulate the boiler pump. It will tell you what size a fire to light according to the temps in the buffer tank. That feature prolly not used in my case as I have a 1000 gals of storage as well as 150 gal buffer.. the Vesta will control pretty much everything else
