2broke2ride

Burning Hunk
Dec 23, 2014
221
Townsend MA

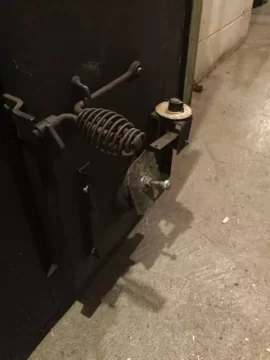

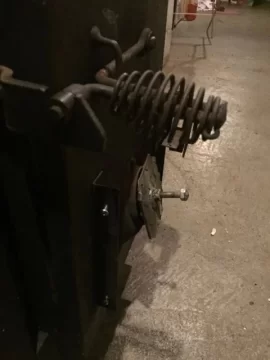

Well, after struggling with this thermostatic draft control on the Shenandoah R77 all last year and the last two months this year accompanied with a chimney fire for Christmas last year I finally reached my breaking point. I removed the flap and welded in a cross bar with a piece of threaded rod to make a screw in/out draft control that stays where I set it instead of damping itself down and turning into a creosote factory.
Tell me what you all think.
e5cd71386afa7dfa2d61a0de84d6f01e.jpg 933b144ddb6472dd361fad3887638637.jpg
