jpellet

New Member
Mar 12, 2022
2
Vermont

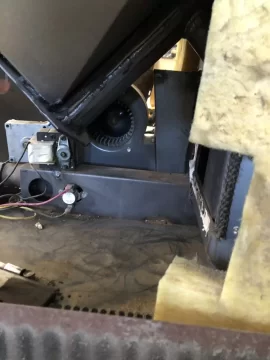

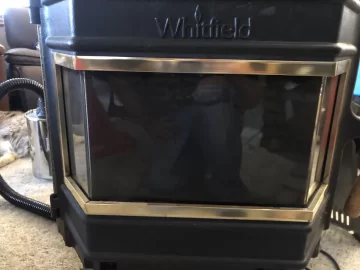

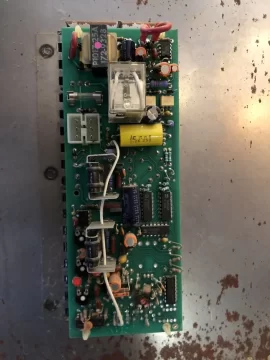

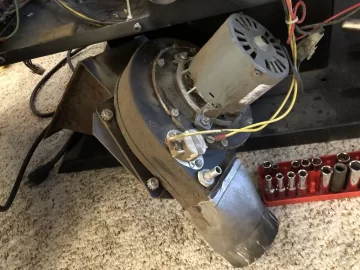

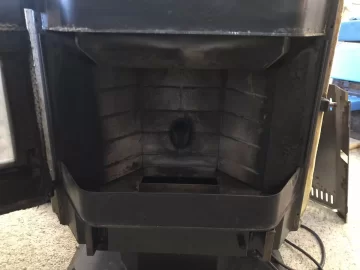

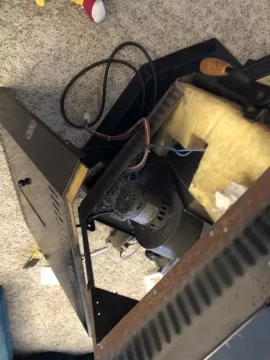

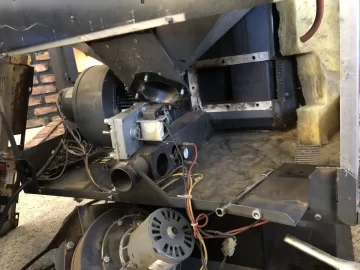

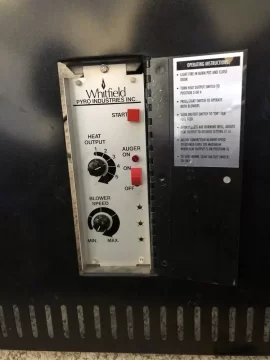

Hey fellow pellet heads. I am looking for a board schematic for my advantage one. I wanted to play with the the calibration potentiometers that aren’t labeled. Also, anyone know where to find my serial number? I wouldn’t even know my model if the wiring schematic hadn’t fallen out! Attaching pics of rebuild if interested.
59C67E4B-9B4A-4851-BB66-219C28463029.jpeg 6F215FDD-4837-45C6-8B80-A949E589B179.jpeg ABE81106-AAEC-4604-A666-556A234D1F0D.jpeg 6FDEB1DC-D92E-4F71-B1FA-56A46BAEF797.jpeg 8EB97FC9-4E7B-4121-B8AE-F0CD56F51B54.jpeg 745C3785-E802-4EEC-92BE-26D4C4DFE5D1.jpeg 6AB7F7F3-9CBB-4C81-BE7C-FCAF1F62B42C.jpeg 0C888DC6-E45C-4D63-B8CC-E00440BBC073.jpeg

Many Whitfield customers express confusion on how to find their stove model number, especially with the Advantage models. The best way is to refer the stove safety label found inside the hopper lid or sometimes on the back of the stove. The serial number is proceeded by “WH-“. Locate the date of manufacture which is also notated on the safety label for accurate identification.

Many Whitfield customers express confusion on how to find their stove model number, especially with the Advantage models. The best way is to refer the stove safety label found inside the hopper lid or sometimes on the back of the stove. The serial number is proceeded by “WH-“. Locate the date of manufacture which is also notated on the safety label for accurate identification.
Thanks Bob, got it!

  • Like
Reactions: Mt Bob
