Whitfield control board question
- Thread starter rafmt
- Start date
-
Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.
We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.
We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil. -
Super Cedar firestarters 30% discount Use code Hearth2024 Click here
Lake Girl
Moderator
This should help you ... just double check you have the right schematics as there are multiple stoves in this file.
http://www.hearthtools.com/parts/whitfield_wire_diagrams.pdf
http://www.hearthtools.com/parts/whitfield_wire_diagrams.pdf
Lake Girl
Moderator
![[Hearth.com] Whitfield control board question](https://www.hearth.com/talk/data/attachments/194/194993-989a7f619f2fd97693f8065e3b22ceca.jpg?hash=TjKbbD74h- "[Hearth.com] Whitfield control board question")
![[Hearth.com] Whitfield control board question](https://www.hearth.com/talk/data/attachments/194/194994-3d5076e9773f8e256ab525fee9741124.jpg?hash=-mjnyeYY5h "[Hearth.com] Whitfield control board question")

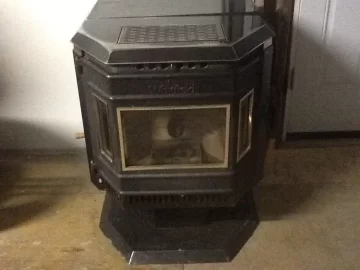

Pics....

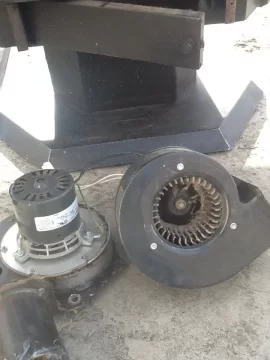

I bought another used stove that the owner said the room air blower was shutting off. Both motors and windings were very dirty with dust and hair. Cleaned and oiled both motors, replaced door gasket and a very good cleaning. Runs like it should now. These old stoves are excellent. A great thanks to this forum. The knowledge and people here on this site are incredible.
Lake Girl
Moderator
DneprDave
Minister of Fire
My two stoves were in pieces when I bought them, they came with a box of both kinds of control boards .They are interchangeable.
