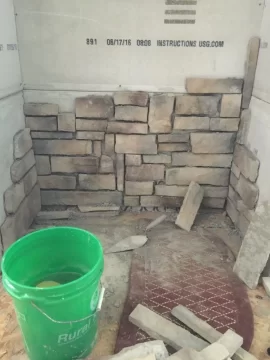

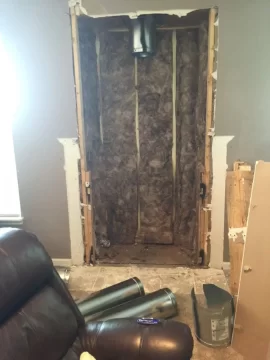

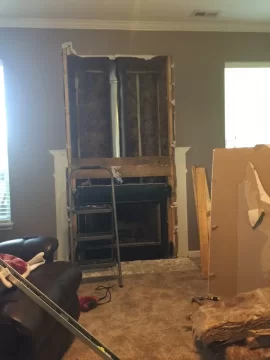

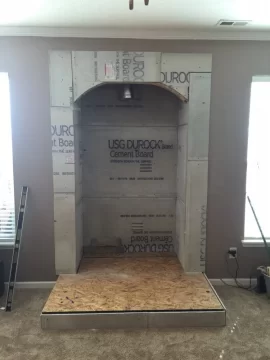

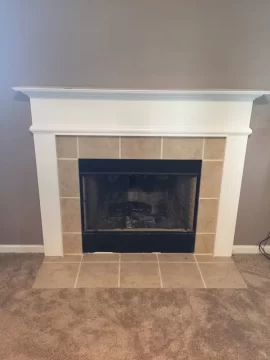

After a lot of reading on this forum and months of shopping I pulled the trigger on a wood stove. I started off this project with a heatilator wood fireplace that cost me more electricity than it provided heat. We are completely electric where I live and my electric bills are pretty high year round. It also sucks losing power and relying on a kerosene heater to heat the house. My house is a newer construction two story that is about 2400 sq feet. My wife looked at pictures of installs and really liked the idea of having an alcove. I had no desire to build one so I priced it out. They wanted about $6,000 to do what I knew I was capeable of so I did it myself. The idea of putting something that generated that much heat in to a hole was also concerning to me. I got with the wood stove installer and he told me what would be safe as far as clearances so i built it much bigger and told him not to place it all the way in to the back of the alcove. The stove will be installed on Monday so the pics of the project are of the past few weeks. The stove that is being installed is a Jotul Oslo.

IMG_1099.JPG IMG_1102.JPG IMG_1100.JPG IMG_1110.JPG IMG_1112.JPG IMG_1228.JPG

Last edited by a moderator:

mol1jb

Feeling the Heat
Jan 8, 2014
379
Central IL
That is some great looking stone work. What an upgrade!


Rearscreen

Minister of Fire
Dec 21, 2014
743
Vermont
Wow what a difference, very nice design. Now that the wife knows you can do that, look out for the next project they inevitably whip up.


begreen

Mooderator
Staff member
Nov 18, 2005
89,518
South Puget Sound, WA
Nice project. The Oslo is fairly wide and a side loader needing 16" clear on the left side. Will its clearance requirements be met? (16" + 28" + 14") or will it sit mostly out on the hearth?


briand7878

Member
Oct 1, 2016
9
Indiana
Nice project. The Oslo is fairly wide and a side loader needing 16" clear on the left side. Will its clearance requirements be met? (16" + 28" + 14") or will it sit mostly out on the hearth?

Thank you all, it will sit quite a way out on to the hearth but I don't think the side door will be useable. I'm not to concerned about the door however, I mainly bought it because I really like the looks of the front. The opening is now only 48 inches wide.

Last edited by a moderator:

begreen

Mooderator
Staff member
Nov 18, 2005
89,518
South Puget Sound, WA
Are the alcove side walls ventilated? That's required for the side clearance reduction from 14" to 6".


briand7878

Member
Oct 1, 2016
9
Indiana
Are the alcove side walls ventilated? That's required for the side clearance reduction from 14" to 6".


Well..... no .... I Just looked at that. My installer told me to do exactly what I did and said I only needed six inches on each side. I actually have enough room to set the stove up front with just the pipe going in to the alcove not needing any clearance on the sides. When I removed the old fireplace there was a dryer vent connected to the outside chase that connects to the fireplace. That vent is still there but not the one inch gap. With that being said doesn't that only apply if the ceiling is roughly 41" high making it an alcove?


begreen

Mooderator
Staff member
Nov 18, 2005
89,518
South Puget Sound, WA
The dealer is incorrect. The clearance reduction requires an NFPA wall shielding system with an opening top and bottom so that air can freely convect behind the wall shield. This is not a condition of ceiling height. Were metal studs used throughout the construction of the alcove including the front corners of the opening? Are the wall cavities insulated or are the spaces between studs open? Will the installation be inspected?

Jotul manual instructions for alcove installation:
1. The stove must be installed with listed double walled pipe.

2. In a protected alcove installation both side walls and rear wall
must be protected per NFPA 211 or CAN/CSA-B365. The wall
protection must be elevated 1”(24.5mm) from the floor and
at least 1” (24,5mm)off the combustible wall to allow for an
air-flow
.

Last edited:

briand7878

Member
Oct 1, 2016
9
Indiana

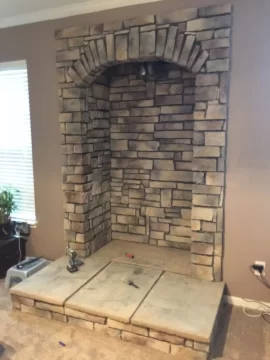

Well the first stove that was brought out was completely rusted. The installer took it back to the store and had another one to me in just a couple of days. I'm happy with the new one and can't wait for winter.

IMG_1268.JPG IMG_1269.JPG

Last edited by a moderator:
  • Like
Reactions: firefighterjake

mol1jb

Feeling the Heat
Jan 8, 2014
379
Central IL
Boy that is handsome.


briand7878

Member
Oct 1, 2016
9
Indiana
Thanks you. I purchased the stone at Menards and it was called Santa Fe ledgestone. Make sure you use type N cement to bond it. I initially had trouble getting it to bond and switched cement. I held each piece up with a drywall screw. When it dried I removed the screw.


kennyp2339

Minister of Fire
Feb 16, 2014
5,927
07462
Looks nice but you are risking burning your house down, clearances are not met to combustible walls, ie the wood studs holding the cement board and the fiberglass insulation behind the cement board. No good man
Look up pyrolysis, because that's what's going to be happening behind your walls

  • Like
Reactions: Squisher

briand7878

Member
Oct 1, 2016
9
Indiana
Looks nice but your risking burning your house down, clearances are not met to combustible walls, ie the wood studs holding the cement board and the fiberglass insulation behind the cement board. No good man
Look up pyrolysis, because that's what's going to be happening behind your walls


I'm only three inches shy of clearance on each side and I had our fire chief look at it. He said it would never get hot enough to be a problem. The highest the temp has climbed to us 135 at the surface with an I r thermometer. I was however concerned and may move it forward. I have plenty of room to move it and still have my 18 inches up front.


begreen

Mooderator
Staff member
Nov 18, 2005
89,518
South Puget Sound, WA
Watch it in winter when heating full bore 24/7. Our Castine's clearances were several inches over the minimum and I was surprised at the wall temps. They were still legal, but in the 160s after long hot burning.


kennyp2339

Minister of Fire
Feb 16, 2014
5,927
07462
Hmmmm, what does the manual say? The pics didn't elude to side shields on the stove that reduce clearance. Bro I'm not trying to give you a hard time, it's all about safety here, and I'm a fire fighter also

  • Like
Reactions: Squisher
