Connecting a Jotul F400 to a Selkirk 6" DSP Double wall stove pipe

TDurdin

New Member
Feb 15, 2018
22
Kingston, NY
Hello, I am new to this forum and new to woodstoves. I am currently installing a Jotul F400 (Single door) woodstove that I purchased used. I am planning to run Selkirk/Metalbestos stove and chimney pipe (already purchased) straight up through the living room ceiling, into a closet, and then out the 2nd floor roof.

My current obstacle is connecting the 6" stove outlet collar to the 6" DSP stove pipe. I have the 6" DSP telescoping pipe and it looks like I need to use an adapter as the female end of the stovepipe is not wide enough to fit over the stove outlet collar.

My question is what Selkirk stove adapter works best with the Jotul F400? or is there another option that works better?

Selkirk adapter options:

Stove Adapter DSP6SA-1. Looks to be the standard adapter. My concern is the dimensions are the same as the stovepipe that does not fit.
Flush Stove Adapter DSPF6SA-1. Used for stoves with recessed outlets. This looks like it might fit over the stove outlet collar but I do not want to purchase it if it doesn't fit.

I appreciate any input, thoughts, and ideas.

Thank you
TDurdin


begreen

Mooderator
Staff member
Nov 18, 2005
85,063
South Puget Sound, WA

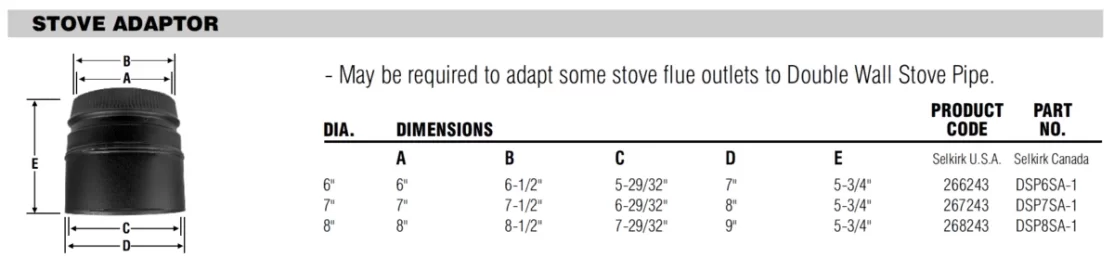

The Selkirk stove adapter is larger in diameter than the stove pipe. DSP pipe is 6.5" OD. The Stove Adapter DSP6SA-1 is 7" OD.
Screen Shot 2018-02-15 at 12.45.29 PM.png


TDurdin

New Member
Feb 15, 2018
22
Kingston, NY
Yes, you are right! Thank you.


begreen

Mooderator
Staff member
Nov 18, 2005
85,063
South Puget Sound, WA
Good deal. Keep us posted on your progress. The chimney pipe in the closet will need to be chased (enclosed) with a firestop at the closet ceiling + an attic insulation shield up above.


TDurdin

New Member
Feb 15, 2018
22
Kingston, NY
Good deal. Keep us posted on your progress. The chimney pipe in the closet will need to be chased (enclosed) with a firestop at the closet ceiling + an attic insulation shield up above.
Ok so I have made some progress but I have a couple questions.

I have not heard of a firestop before...If this is needed I will install it but I have not seen it yet in the Selkirk installation guide.

Also...as long as the double insulated stove pipe (in the closet) is clear of combustibles by 2 inches and any insulation areas are boxed off it will meet code correct?

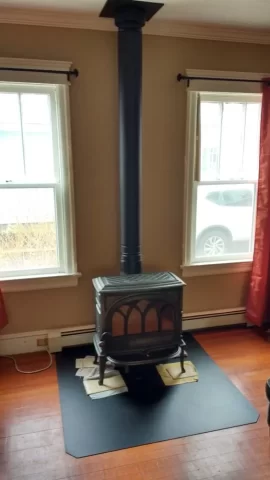

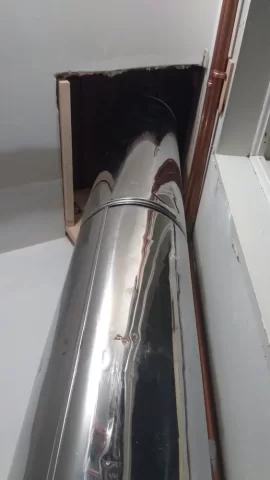

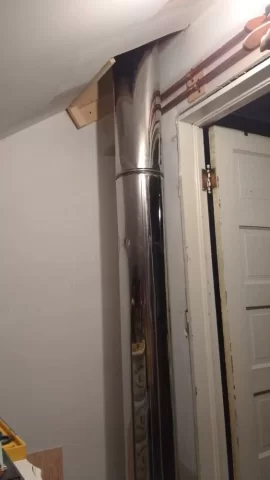

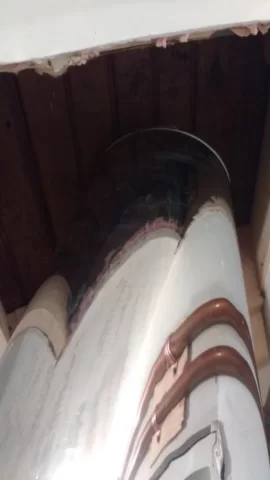

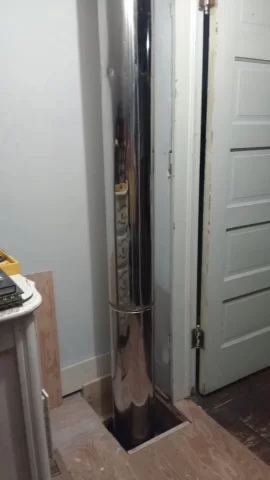

I have attached pictures. All stove/chimney pipe in the pictures are just dry fit at this point.


Attachments

begreen

Mooderator
Staff member
Nov 18, 2005
85,063
South Puget Sound, WA

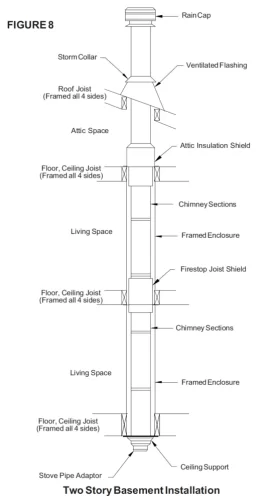

This illustration is from Selkirk's Supervent Pro installation guide. Note the firestop and joist shield at the floor penetration.
Screen Shot 2018-03-16 at 11.29.45 AM.png

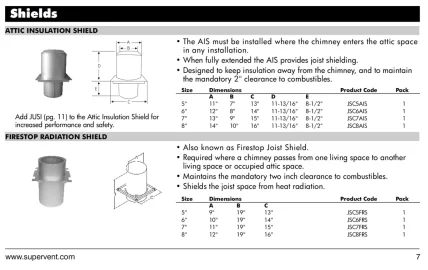

These are the parts for shielding.
Screen Shot 2018-03-16 at 11.35.22 AM.png


TDurdin

New Member
Feb 15, 2018
22
Kingston, NY
Ok, so it looks I just need the firestop at the closest floor (2nd floor). The next chimney goes through the roof next.


begreen

Mooderator
Staff member
Nov 18, 2005
85,063
South Puget Sound, WA
Is there a knee wall space or gap above the closet ceiling before the roof? It looks like it, but this is hard to tell from the picture.


TDurdin

New Member
Feb 15, 2018
22
Kingston, NY
Here is the layout


Last edited by a moderator:

TDurdin

New Member
Feb 15, 2018
22
Kingston, NY
I have installed an attic insulation shield between the 1st and 2nd floor. Next I am planning to frame a box around the chimney.

Couple questions?

1. How far does the attic insulation shield need to be from any combustible?

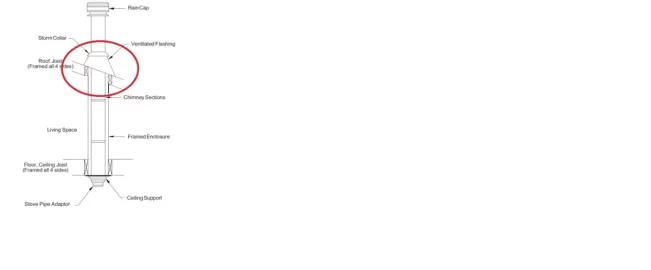

2. Do I need a firestop going thru the roof of the second floor? (see pictures)

2472.jpg IMG_20180303_172031866.jpg


begreen

Mooderator
Staff member
Nov 18, 2005
85,063
South Puget Sound, WA
Sorry, I missed your posting #9. That is a different type of install. The ceiling support box is the fire stop. There is no harm with installing the attic insulation shield over it, but it is not necessary. To answer question #1, there is no clearance needed from the attic insulation shield. The shield enforces the 2" clearance requirement for the chimney pipe. A firestop at the roof is not required if there is no possibility of insulation being blown in between the ceiling joists. If there is a possibility then due to the slope of the roof, a bit of custom work on the shield would be required.


TDurdin

New Member
Feb 15, 2018
22
Kingston, NY
No problem. I appreciate all your help. Looks like I am good shape then. I will frame a box around the chimney and finish the external portion.

Thanks.


Cast Iron

Feeling the Heat
Mar 16, 2018
254
Vermont
The Selkirk adapter above is double walled. The crimped end fits inside the outer telescoping pipe for the right fit .


TDurdin

New Member
Feb 15, 2018
22
Kingston, NY
Another question...when framing and finishing the walls surrounding the chimney pipe (insuring the 2inch clearance is met) is there a preferred wall material to finish with? sheetrock? plywood? other?

I had to remove some drywall to reroute some wiring and instead of putting up sheet rock again I would probably like to use plywood as it is cleaner.

Any thoughts?


T-roy_

Burning Hunk
Dec 30, 2015
182
Central Minnesota
You can use whatever you wish, as long as clearances are met.

  • Like
Reactions: TDurdin

begreen

Mooderator
Staff member
Nov 18, 2005
85,063
South Puget Sound, WA
If the choice of materials is arbitrary I'd probably use a lightweight cement board.


Cast Iron

Feeling the Heat
Mar 16, 2018
254
Vermont
1/2" cement board with ceramic spacers is ideal for wall protection....and safe as BeGreen says.
Ours are painted w hi temp black paint. The edges need to be filled just for looks since they are rough.
Cheap and to spec.

  • Like
Reactions: TDurdin

TDurdin

New Member
Feb 15, 2018
22
Kingston, NY

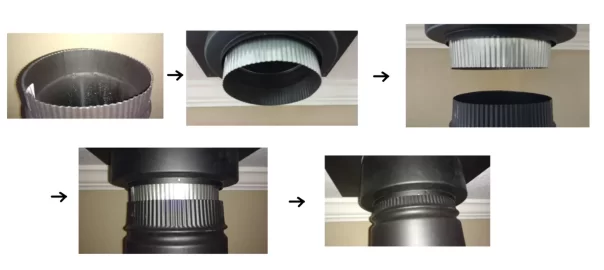

On another note...when connecting my 6-inch DSP Telescoping Double wall stove pipe to the 6-inch finish support (FSP) and the chimney pipe adapter...does the top of the DSP stove pipe fit between the bottom of the 6-inch pipe adapter and the finish support (FSP)?

My concern is that the DSP stove pipe is not fitting inside the pipe adapter thus possibly allowing for smoke to exit this joint.

Please see the picture below.

Last edited:

TDurdin

New Member
Feb 15, 2018
22
Kingston, NY

Does this look correct?


begreen

Mooderator
Staff member
Nov 18, 2005
85,063
South Puget Sound, WA
Yes, then it gets the finishing band.
