Help!! Horrible back drafting furnace

Hunter130 Posted By Hunter130, Jan 4, 2018 at 5:35 PM

  1. maple1

    maple1
    Minister of Fire 2.
    NULL


    Sep 15, 2011
    8,408
    1,578
    Loc:
    Nova Scotia
    And, as also quite often happens - a 'by the way' slip of the tongue a few posts after the OP reveals the issue in loud living color.

    :)

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Fred61, Marshy and brenndatomu like this.
  2. Marshy

    Marshy
    Minister of Fire 2.
    NULL


    Dec 29, 2016
    741
    214
    Loc:
    NY
    The part that goes through the exterior wall of the house. It is the horizontal connection to the chimney that is permanently fixed to the chimney.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  3. Lawson111

    Lawson111
    Member 2.
    NULL


    Sep 2, 2015
    61
    4
    Loc:
    Upstate NY
    Yea put that clean out cap back in. Is it a door or a plug type at the bottom of the tee that connects to the thimble( the piece that goes threw the wall) if it’s a plug/cap type that goes in the bottom of the tee mine has fell out before if I don’t tap it I’m will a hammer a little. There also should be little brackets that swing over when the plug is in that won’t allow it to fall out all the way. Well my Selkirk setup is this way not sure what brand chimney you have.

  4. Lawson111

    Lawson111
    Member 2.
    NULL


    Sep 2, 2015
    61
    4
    Loc:
    Upstate NY
    I am actually going to get some inside stove pipe to change my interior set up. I to have pretty much the same setup you have where it 90s out of the stove goes vertical for about a foot then another 90 and about 2feet of horizontal pipe. After reading everyone’s comments on the horizontal runs I’m going to eliminate one of the 90s and 45 it right at my thimble and run the pipe from the 90 that comes out of the stove at a angle. Hopefully this helps my draft and creosote buildup out. I have a little issue with draft and creosote buildup in the spring and fall when it’s a little warmer out.

  5. Hunter130

    Hunter130
    New Member 2.
    NULL


    Jan 4, 2018
    27
    0
    Loc:
    Ohio

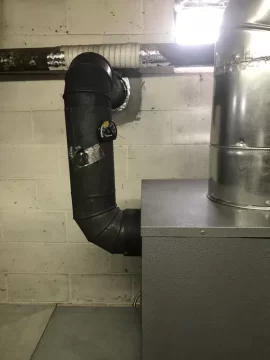

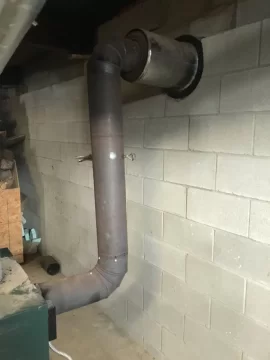

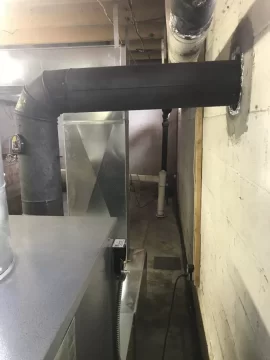

    Here is interior pipe in question


    Attached Files:

  6. cumminstinkerer

    cumminstinkerer
    Member 2.
    NULL


    Feb 2, 2016
    56
    11
    Loc:
    central iowa
    Hunter130, not to be to critical but looking at the picture it looks like your thimble is either dead level or possibly reverse sloping, you really need to get the exit end ramped up as Marshy said a minimum of 1/4" per foot of run. More is always better of course, and like I posted earlier the only way you can really do that is to hog the hole in the block wall out and the cement it back around the pipe once you get it set where you need it.

  7. maple1

    maple1
    Minister of Fire 2.
    NULL


    Sep 15, 2011
    8,408
    1,578
    Loc:
    Nova Scotia
    That's a bit different than what I had pictured in my head from the description. Not sure you can change that setup much without moving the furnace, or shortening up that section of insulated stuff. I would likely try to work a T in there at the bottom, using one end of it for a cleanout - would make keeping things clean easier at least. Like, maybe, a T right off the furnace (pointing up & down with clean out cap on the bottom), then work in two 45's to replace the top 90. Sections of pipe in between to make things fit together.

    Is that key damper closed though? Or partly? Hard to tell in the pic.

    A pic of the cleanout & area would also likely be useful.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  8. Marshy

    Marshy
    Minister of Fire 2.
    NULL


    Dec 29, 2016
    741
    214
    Loc:
    NY
    The pipe between the stove and the thimble appears to be single wall black stove pipe. Your elbows are adjustible.

    I would try this immediately:

    Put the adjustable elbow on the outlet of the stove and put the other on the thimble. Adjust them so they align and connect them with a straight run of pipe. You may need to cut a straight section to fit to length.

    You can buy single wall black stove pipe at nearly any hardware store. You will also need a good pair of tin shears.

    The gasses will have enough velocity to over come the restriction of the thimble even if it doesn't have the proper slope of 1/4" per foot.

    I would reuse the straight section you have in the middle, just ditch the straight section of oujt the backnof the stove and you'll need to add length to the middle. Simple.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Highbeam likes this.
  9. Lawson111

    Lawson111
    Member 2.
    NULL


    Sep 2, 2015
    61
    4
    Loc:
    Upstate NY
    Very similar to my setup and I honestly only have issues on warmer windy days. I am going to try and eliminate the horizontal run when it warms up around here and I can shut the stove off. But I would fix your cleanout issue and go from there first before you change all that. Doesn’t seem like you have a lot of options without a lot of work.


    Attached Files:

  10. sportbikerider78

    sportbikerider78
    Minister of Fire 2.
    NULL


    Jun 23, 2014
    2,280
    916
    Loc:
    Syracuse, NY
    Doesn't seem like that much work to me to completely change that setup. Working with black pipe is crazy easy...and so is motar'ing that pipe back in place when he is done.

    6 beer job...max. :)

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Highbeam and Lawson111 like this.
  11. cumminstinkerer

    cumminstinkerer
    Member 2.
    NULL


    Feb 2, 2016
    56
    11
    Loc:
    central iowa
    agreed sportbikerider78, six beers, a hammer, a chisel, some mud, and a trowel all done

  12. Hunter130

    Hunter130
    New Member 2.
    NULL


    Jan 4, 2018
    27
    0
    Loc:
    Ohio
    Thanks everyone for the help. I just picked up a cap for the clean out tee... upon cleaning I found that the interior single wall pipe was fairly dirty, the rest of the chimney was near spotless. As of now my therory is that the clean out was pushing cold air in resulting in a somewhat bottle up of smoke, resulting in creosote buildup in the interior single wall pipe. Also, I always run the key dampener wide open.

  13. maple1

    maple1
    Minister of Fire 2.
    NULL


    Sep 15, 2011
    8,408
    1,578
    Loc:
    Nova Scotia
    Seems to me this cleanout situation is still kind of fuzzy to us - a pic would help.

    Running with an open cleanout would mean that the top of the chimney is pulling all its draft up through the cleanout. Meaning that the stove isn't seeing any draft. And that whatever smoke is making it into the chimney is being turned to creosote pretty quick. A double whammy.

    I don't think you really need to do anything to the stove pipe that is there, if you simply get the cleanout blocked. If I am understanding the situation correctly. And I still might not be.

    EDIT: I would likely change it up though, just to make it easier to clean, if nothing else, adding a cleanout T at the bottom. Also from an above suggestion - if going to the store to get some new pipe, I would get new adjustable 90's also. I never have any luck trying to adjust those things after they have seen some use. Sometimes even when new they sometimes don't want to adjust the way you want.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    brenndatomu likes this.
  14. Lawson111

    Lawson111
    Member 2.
    NULL


    Sep 2, 2015
    61
    4
    Loc:
    Upstate NY
    X2 on the new adjustable elbows. I just had to buy some to change my setup. Like maple1 stated after they get dirty there darn near impossible to adjust them.

  15. Hunter130

    Hunter130
    New Member 2.
    NULL


    Jan 4, 2018
    27
    0
    Loc:
    Ohio
    Okay got my clean out cap and of course it doesn't fit It is for dura tech pipe and mine is dura plus. I can't even find dura plus caps alone online? One problem after another

  16. brenndatomu

    brenndatomu
    Minister of Fire 2.
    NULL


    Aug 21, 2013
    3,178
    936
    Loc:
    NE Ohio
    What happened to the old cap? They don't just blow away normally...

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Highbeam, maple1 and Marshy like this.
  17. Marshy

    Marshy
    Minister of Fire 2.
    NULL


    Dec 29, 2016
    741
    214
    Loc:
    NY
    My experience with the elbows has been the opposite. Maybe because my stoves are pre-EPA and keep them clean. If anything they losen up and need replacing after 3 years or so.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  18. Marshy

    Marshy
    Minister of Fire 2.
    NULL


    Dec 29, 2016
    741
    214
    Loc:
    NY
    Why people de code to install their chimney connector pipe like that baffles me. Thst horizontal run kills your draft. Its so easy, put the adjustable elbow at the wall and one on the back of the stove connect with a straight section of pipe. No double 90's and 3'of horizontal run. Sheeze. LoL

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  19. maple1

    maple1
    Minister of Fire 2.
    NULL


    Sep 15, 2011
    8,408
    1,578
    Loc:
    Nova Scotia
    Might come down to the quality of what's at your local store. We have basically the cheapest crappiest stuff here. I got one once that I couldn't budge at all, thought it was welded together. Must have been all pinched closed tight when it was put together. The stainless ones that were used when my boiler was originally installed in 1996 were great even 17 years later.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  20. Lawson111

    Lawson111
    Member 2.
    NULL


    Sep 2, 2015
    61
    4
    Loc:
    Upstate NY
    It was my first wood stove and I set it up the same way my father had his and he never had an issues... but his chimney was also 30ft tall. I got the stuff to change it just got to wait until I can shut the stove off and change it. High of -10 here tomorrow :(

    Marshy likes this.
  21. Hunter130

    Hunter130
    New Member 2.
    NULL


    Jan 4, 2018
    27
    0
    Loc:
    Ohio
    I'm not sure what happen to the old cap, I purchased the house 2 years ago and there has not been one since I've purchased the house

  22. Fred61

    Fred61
    Minister of Fire 2.
    NULL


    Nov 26, 2008
    2,347
    457
    Loc:
    Southeastern Vt.
    They started installing thimbles with a slight angle toward the chimney back in the 70's when air tight stoves started to become popular in order for the dripping creosote to stay within the chimney and not flow out into the living space. A correctly built chimney should have no problem overcoming any loss of draft. It's not in there at so much of an angle so that the smoke has to go down. Some old time masons refused to do it because their fathers' told them that smoke had to go up.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  23. Fred61

    Fred61
    Minister of Fire 2.
    NULL


    Nov 26, 2008
    2,347
    457
    Loc:
    Southeastern Vt.
    That's your problem:p

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  24. Hunter130

    Hunter130
    New Member 2.
    NULL


    Jan 4, 2018
    27
    0
    Loc:
    Ohio
    Alrighty guys, here's the verdict, I took apart the chimney, cleaned it very throughly, then added a redneck cap to the clean out T. The cap I bought (tractor supply crimped 6" cap) was slightly larger than my duraplus piping. Soo, I removed the cap from the crimped piece; and got it wedged up in there with a piece of steel; so I'm sure it's not 100% sealed up but is better.. now, I started the fire, had a small amount of smoke come out while starting (it was expected due to extreme cold) then once fire got started, it seemed to be all good to go. However, once I got a full load of wood in the furnace, it started smoking out the door again when you open it. Not just a light smoke but a kind of blow it in you're face. Still better than before, but not 100% yet

  25. jatoxico

    jatoxico
    Minister of Fire 2.
    NULL


    Aug 8, 2011
    3,687
    1,149
    Loc:
    Long Island NY
    Aside from sealing up the clean out well since you have a basement install it may help to do some air sealing upstairs especially in the attic. Got a leaky set of attic stairs?


    Search/Google stack effect.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
