High Temp shut-off snap disc source?

[midfielder]

Anyone know of a good source for a 250 deg. high-temp shut off switch? Looking for a 60T25.

Thanks in advance.



[slvrblkk]

Is this what you are looking for?

http://heiligkuh.com/bbandp/index.php/cPath/22_26/osCsid/a9cda308a4a950f1881d27a651b402f3


BTW...they are in the next town over from me...I know the site looks a bit sketchy but I order stuff from them and it comes quickly.



[midfielder]

Kinda, only not a high/low temp snap for the combustion fan housing - this one's the overheat sensor. Has auto-reset and a manual reset button:
(broken image removed)



[SmokeyTheBear]

Call these folks (broken link removed to http://surpluscityliquidators.com/view_product/151640////LIMIT_CONTROL) there are several versions of the 60T25 you need the rest of the numbers to get a proper match on reset type and action temperature.

They may have what you are looking for cheap.

You can also call Grainger and see if they can cross reference it to one they carry.



[midfielder]

Yeah thanks, I saw that site. Those are the ones, but they have a $20 min. order and want $15 to ship; I'd have to buy 4 of them. Might do it if I can't find a single for a decent price somewhere...



[smwilliamson]

Whites and Rogers or Thermodisc



[Don2222]

Hello

These are not the cheapest, just one of the best!

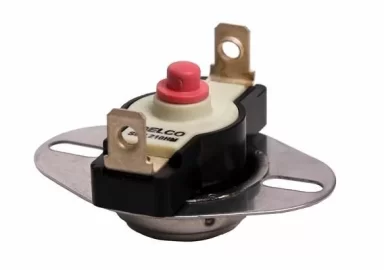

250 Degree High Limit Switches for US Stoves and other stoves
SES-L250M at $27.80 each.

Air Stream Mount - Most common - $27.80
(broken link removed to http://catalog.selcoproducts.com/item/al-products-disc-thermostats-3-4-disc-manual-reset/-disc-manual-reset-3-4-disc-airstream-open-on-rise/se-l250m?&bc=0|1319)
Surface mount - $27.80
(broken link removed to http://catalog.selcoproducts.com/item/all-categories/c-manual-reset-3-4-disc-surface-mount-open-on-rise/ses-l250hm?plpver=1001&categid=100&prodid=1320&origin=keyword)

You can call my buddy Marissa
Marissa Gioglio
Manager, Customer Service/Inside Sales
Ph: 775.674.5100 ext 143
Fx: 775.674.5111
TF: 800.257.3526
www.selcoproducts.com

Address: 8780 Technology Way
Reno, NV 89521 USA
Specifications (broken link removed to http://catalog.selcoproducts.com/item/al-products-disc-thermostats-3-4-disc-manual-reset/-disc-manual-reset-3-4-disc-airstream-open-on-rise/se-l250m?&plpver=1001&assetid=g1032)

Description
(broken image removed) These SPST snap action thermostats have a factory calibrated, thermally and electrically insulated bimetal disc to open a circuit. The contacts may be manually reset after the control has cooled approximately 30% below the open calibration.
(broken image removed)
Open ºF
(broken image removed) 250 ± 14
(broken image removed)
Mounting
(broken image removed) Airstream
(broken image removed)
Electrical Ratings
(broken image removed) 120VAC, 240VAC, 25 Amps, 60Hz, Resistive
120VAC, 10FLA, 60LRA, 60Hz, Inductive
240VAC, 5FLA, 30LRA, 60Hz, Inductive
5,000 Cycles
(broken image removed)
Dielectric Strength
(broken image removed) 1500VAC/1 minute
(broken image removed)
Approvals
Viewable Under Downloads
(broken image removed) C-UL Recognized File No. E145478(S), XAPX8
UL Recognized File No. E145478(S), XAPX2
(broken image removed)
Value Added Options
(broken image removed) (broken link removed to http://www.selcoproducts.com/value_added.php)

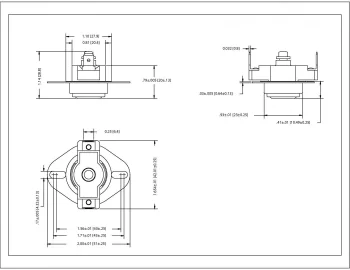

AIR Stream Mounting in Pics Below - Click to enlarge
