ID an old stove

[CoachMurph]

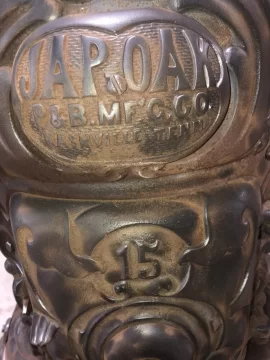

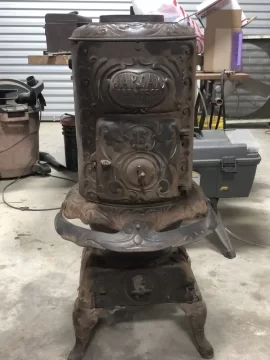

Picked this up at an Estate Sale yesterday for $15. Pretty complete other than missing one back leg and another that is broken. Maybe missing something on top. Sellers were thinking early 1900’s. Found some info on manufacturer (P&B-Nashville, TN), but can’t find any that say JAP OAK on them. Just like to find out all I can!

Thanks,
Murph



[begreen]

Phillips & Buttorff was a well-known foundry. The company was incorporated in 1881 and made an extensive line of products including stoves.
http://files.usgwarchives.net/tn/davidson/bios/buttorff19nbs.txt
You might be able to find out more on this model from antique stove companies and forums.
https://gingercreekstoves.wordpress.com/2010/11/13/welcome-to-ginger-creek-antique-stoves/



[CoachMurph]

Phillips & Buttorff was a well-known foundry. The company was incorporated in 1881 and made an extensive line of products including stoves.
http://files.usgwarchives.net/tn/davidson/bios/buttorff19nbs.txt
You might be able to find out more on this model from antique stove companies and forums.
https://gingercreekstoves.wordpress.com/2010/11/13/welcome-to-ginger-creek-antique-stoves/

Thank you!



[clancey]

That's a interesting looking stove---why did they not use windows for these stoves instead of all metal so that they could see the flame...When was glass invented anyway--anybody know....Nice different stove coachmurph and hope you can fix it up if that's what you want to do...Thanks for posting....Gee begreen you sure know a lot about different types of stoves...I like all those bears,,,clancey



[CoachMurph]

That's a interesting looking stove---why did they not use windows for these stoves instead of all metal so that they could see the flame...When was glass invented anyway--anybody know....Nice different stove coachmurph and hope you can fix it up if that's what you want to do...Thanks for posting....Gee begreen you sure know a lot about different types of stoves...I like all those bears,,,clancey

Thanks Clancey! I plan to fix it up to some extent and then decide what to do with it. I sure like it. Lot prettier than the old brown square one I put in my shop!



[bholler]

That's a interesting looking stove---why did they not use windows for these stoves instead of all metal so that they could see the flame...When was glass invented anyway--anybody know....Nice different stove coachmurph and hope you can fix it up if that's what you want to do...Thanks for posting....Gee begreen you sure know a lot about different types of stoves...I like all those bears,,,clancey

At that point the only thing they had that would hold up was mica sheets. The glass in today's stoves isn't glass it is ceramic.



[clancey]

Thanks that surprised me about being ceramic--who would think that? Thanks..clancey



[gzecc]

I think the ceramic "glass" we are familiar with came from research from the space shuttle program.



[clancey]

That's neat they had a shuttle rocket come down --I believe--at 3am in the Gulf of Mexico tonight and have not listened to the news to hear if they made the landing okay with the four people inside.. Better than a rocket stove but Rocket Science..lol thanks clancey



[CoachMurph]

I’m assuming there was something on top originally?



[CoachMurph]

Also how do you tell if it was wood or coal powered? If coal, can I burn wood in it?



[begreen]

It looks like there was a decorative top or pivoting trivet top at one point.
The air feed and grate system are clues to what it was designed to burn. If it has a riddling or sifting grate then it was designed for coal. A coal stove will also have the primary air feed under the grate to feed air to the bottom of the coal bed. If this stove has a simple, fixed slatted grate then it may have been set up for wood.

I'm taking a guess here, but the Jap name may refer to the stove finish. This stove looks like it may have had a black finish originally. Japanning was a popular metal finish in the late Victorian era circa 1900.



[CoachMurph]

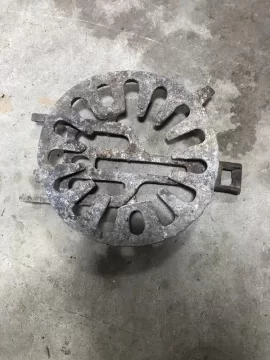

Here’s the grate It’s 2 part Handle on the right side pulls the bottom piece back and forth



[bholler]

Here’s the grate It’s 2 part Handle on the right side pulls the bottom piece back and forth
View attachment 278389

That is a coal stove



[CoachMurph]

That is a coal stove

Thanks bud
