Looking for info on this Hearthstone III

[Kstone87]

Hi found this old wood stove don’t know much about it , looks like there is supposed firebrick underneath the stones on the top? I have one piece of fire brick . I started a fire in it outside and it was smoking out of the top of the stove where the soapstones are. Any help would be very much appreciated Thank you



[begreen]

The bypass might have been closed? It will need some 6" pipe stuck in the flue outlet to provide a semblance of draft.



[Kstone87]

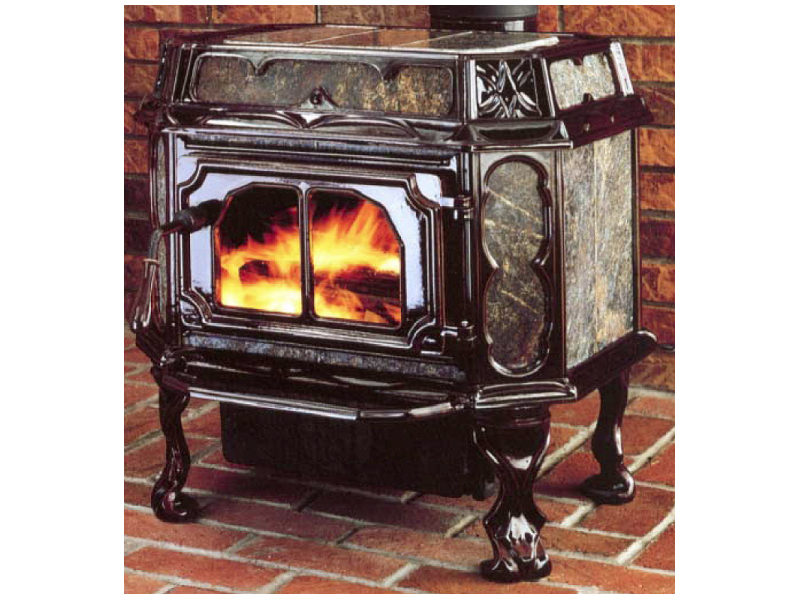

I found this pic in this site somewhere looks like I must be missing a fire brick or something inside ?



[begreen]

There is a baffle for the stove that appears be missing. I don't think it is sold anymore. If so, it might need to be fabricated. Here is a link to the manual and parts list.

Hearthstone III

Stove History Production Run Dates Serial Numbers Notes Start Rev. 0.1 1984 Electronic air control Implemented comprehensive warranty Rev. 0.1 1985 Manual air control Rev. 0.2 […]

hearthstonetech.com
