Quadra-Fire Classic Bay CB 1200 Ash Pan does not slide in or pull out easily! Very hard to do!

[Don2222]

Hello
This Aladdin Quadrafire CB1200 is tough but it is a good learning stove! LOL
The nice large ash pan was just way to hard to pull out and push back in!
2 reasons why!
1. The bottom was bowed out. - banged that back in with a rubber hammer!
2. Now it slides in easily except the last 1/4” is way to hard! The ash pan opening on the right side was 1/8” lass than on the left side!! A Harbor Freight Hydraulic Frame Repair Kit might be the tool of choice but that costs a few dollars.

4 Ton Portable Hydraulic Equipment Kit

Amazing deals on this 4T Portable Hydraulic Body Repair Kit at Harbor Freight. Quality tools & low prices.

www.harborfreight.com

What about a Hydraulic floor Jack?
I had to take the wheels of and I just got it in there on the right side!
Just a few cranks and I could here a big squeak of the metal straightening back into form!
Has anyone else seen this problem??
It worked!!

Pic 1 - Ash pan not going in all the way
Pic 2 - Left side shows room to push the ash pan in.

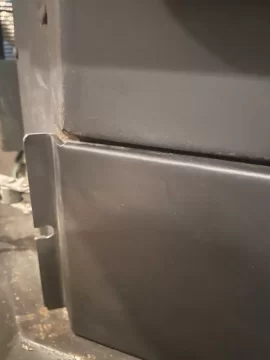

Pic 3 - shows no room to easily slide the ash pan in. The clasps can pull it in when latched but then it is very hard to pull the ash pan out after it is unlatched!
Pic 4 - No front wheels Red Neck Frame Straightener!

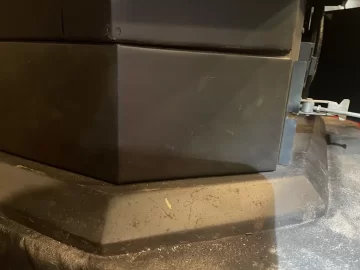

Pic 5 - Right side has room now and the whole ash pan slides in easily!!



[Don2222]

Hello

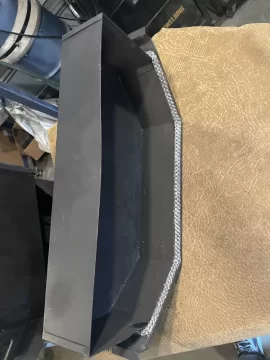

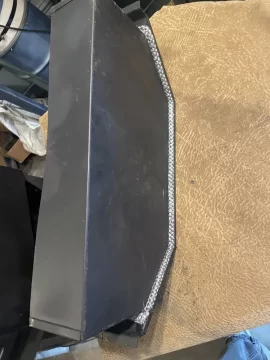

Still I was a little skeptical of this kind of fix to the frame for the ash pan. Therefore I left the ash pan out all night and tried it again this morning. Sure enough it slide right in. Now I replaced the broken brittle foam gasket with a nice 1/2” graphite impregnated round rope gasket for a really good seal!!

Here are some other fixes to the CB1200
URL unfurl="true"]https://www.hearth.com/talk/threads/aladdin-quadrafire-fixing-the-center-baffle-in-the-fire-box.198786/[/URL]
Warped center baffle

Aladdin Quadrafire Classic Bay Fire Box Center Baffle warped around pellet drop chute.

Hello Has anyone seen this? I got a bottle of Map Gas and my hammer and just started heating and beating! It worked! Before you could Not see the edges of the pellet drop chute. But now you can! Now it looks like it should!! $10 fix !! Map Gas from ACE hardware for 5300 Deg F...

www.hearth.com

Broken heat exchanger tube

Weld broke on the Aladdin & heat exchanger tube fell in with smoke came pouring out! Now what?

Hello Is this trash or treasure? This is a 2/1997 Quadra-Fire serial # 350513 The heat exchanger tubes are solid steel and in good shape. However the weld on the 1st tube on the left in the right bank broke so the tube fell into the heat box on top of the fire box where the heat from the fire...

www.hearth.com

Difference between the Aladdin and HHT CB1200s

What is the difference between an Aladdin CB1200 and a Quadrafire / HHT CB1200 ??

Hello The Aladdin is actually called a Quadra-Fire 1200 and has the control box under the hopper on the right side and no carry slots in the back panel The Quadrafire / HHT called the Quadrafire Classic Bay CB1200 has the control box in the hopper on the right side and 2 carry slots in the back...

www.hearth.com

Cleaning & painting the CB1200 Air Wash Brackets

Quadrafire CB 1200 Classic Bay Air Wash?

Hello Not much info on this, but the CB1200B owner’s manual page 34 under step 1 Replacing Center glass states: “Do Not Let Air Wash Spacers fall down from the top frame when removing and replacing the glass.” This Rev B owners manual was published Sept 1, 2008 so that maybe only for stoves...

www.hearth.com
