Quadra-Fire Classic Bay CB 1200 Ash Pan does not slide in or pull out easily! Very hard to do!

  • Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.

    We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.

    We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil.

Don2222

Minister of Fire
Feb 1, 2010
9,110
Salem NH
Hello
This Aladdin Quadrafire CB1200 is tough but it is a good learning stove! LOL
The nice large ash pan was just way to hard to pull out and push back in!
2 reasons why!
1. The bottom was bowed out. - banged that back in with a rubber hammer!

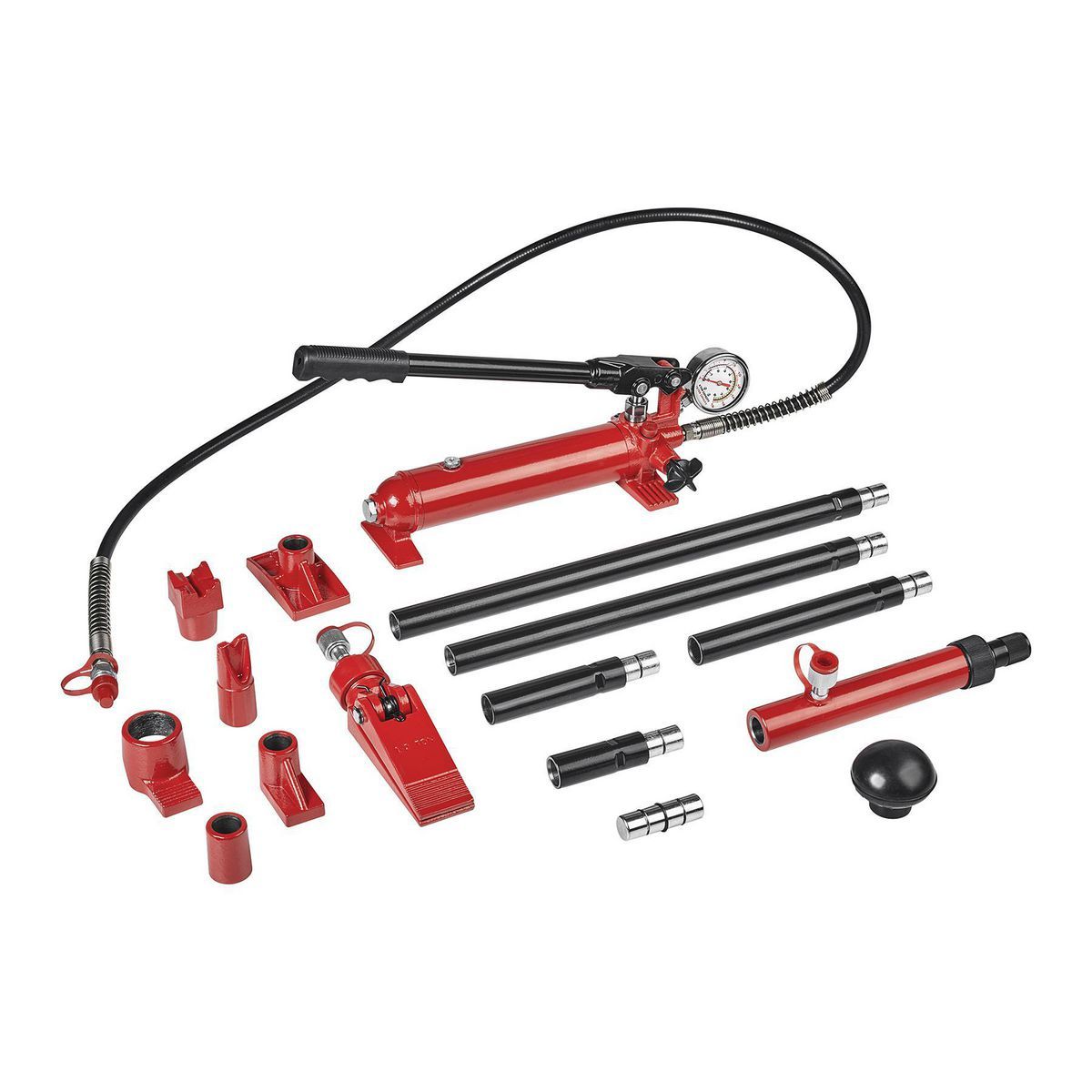

2. Now it slides in easily except the last 1/4” is way to hard! The ash pan opening on the right side was 1/8” lass than on the left side!! A Harbor Freight Hydraulic Frame Repair Kit might be the tool of choice but that costs a few dollars.
What about a Hydraulic floor Jack?
I had to take the wheels of and I just got it in there on the right side!
Just a few cranks and I could here a big squeak of the metal straightening back into form!
Has anyone else seen this problem??
It worked!!

Pic 1 - Ash pan not going in all the way
Pic 2 - Left side shows room to push the ash pan in.
Pic 3 - shows no room to easily slide the ash pan in. The clasps can pull it in when latched but then it is very hard to pull the ash pan out after it is unlatched!
Pic 4 - No front wheels Red Neck Frame Straightener!
Pic 5 - Right side has room now and the whole ash pan slides in easily!!

155C2DE9-E32B-4AC3-B085-B5C2A0101517.jpeg 1B3312AC-7C04-430C-8F48-E7829E8C3A48.jpeg DCBF88C6-2F9D-4D7C-BD10-9944ABFFAB5F.jpeg E5CE37CC-9EEC-4D5B-A79A-E60A3001564D.jpeg A56ECC86-979D-472E-9FD7-C63954233E23.jpeg

Hello
Still I was a little skeptical of this kind of fix to the frame for the ash pan. Therefore I left the ash pan out all night and tried it again this morning. Sure enough it slide right in. Now I replaced the broken brittle foam gasket with a nice 1/2” graphite impregnated round rope gasket for a really good seal!!

Here are some other fixes to the CB1200
URL unfurl="true"]https://www.hearth.com/talk/threads/aladdin-quadrafire-fixing-the-center-baffle-in-the-fire-box.198786/[/URL]
Warped center baffle
Broken heat exchanger tube
Difference between the Aladdin and HHT CB1200s
Cleaning & painting the CB1200 Air Wash Brackets
