Size of spade connectors for the englander 25pvdc

[Doylee4693]

They appear to be the red connectors, bought the spade conncetors and a spare auger motor. Went to bench test the new motor and realized my red spade connectors were much to small. Anyone know what size spade connectors to buy? Are all the connectors in the stove use the same size spade connections? Also want to have a jump wire ready for either of the vaccum switches



[Doylee4693]

Hmmm, well I emailed the company and they said it was the red connectors 18-22 awg. Weird because that size is much to small to fit this motor i purchased which is a direct replacement



[Nitro-Fish]

If I'm not mistaking, the red connectors come in two sizes, a .83 or .25 (I believe the .83 is considered a "mini"?), make sure you have the right ones.



[Doylee4693]

If I'm not mistaking, the red connectors come in two sizes, a .83 or .25 (I believe the .83 is considered a "mini"?), make sure you have the right ones.

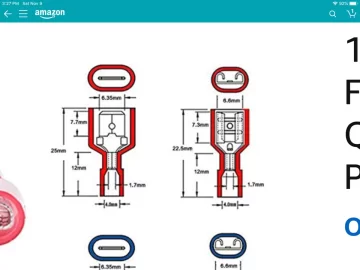

Ok here’s a link to the ones I purchased.. too small is it? Thanks Baomain Red Female/Male Insulated Spade Wire Connector Electrical Crimp Terminal 22-16 AWG 2.8 x 0.5mm 100 Pack Amazon product ASIN B01MYTWTE2



[Ssyko]

these are what i get

71M-250-32-NL 3M Electronic Specialty | Mouser

71M-250-32-NL 3M Electronic Specialty Terminals 22-18 .250 MLE DISC datasheet, inventory, & pricing.

www.mouser.com

71F-250-32-NL 3M Electronic Specialty | Mouser

71F-250-32-NL 3M Electronic Specialty Terminals 22-18 .250 FML DISC datasheet, inventory, & pricing.

www.mouser.com



[Doylee4693]

Awesome thanks man, apparently those ones I purchased were to small. Can you confirm these connectors will work. Thanks bud, stay warm. Fyi im looking for a more affordable option like buying a whole 100 pack of males and females. Doesnt the depot carry these dang things? Lolol



[JRemington]

The .250, 18 to 22. I bought some today to make test cables.



[Doylee4693]

The .250, 18 to 22. I bought some today to make test cables.

Man the measurments of mm and inches are messing with my simple brain. Can someone just confirm the picture I posted is the needed quick disconnects so I have a better idea?I always thought red,blue,and yellow were standard one size, now im seeing all different sizes.



[Ssyko]

To small, wire size? Or spade size? You gotta know the wire guage on the replacement motor

Ok here’s a link to the ones I purchased.. too small is it? Thanks Baomain Red Female/Male Insulated Spade Wire Connector Electrical Crimp Terminal 22-16 AWG 2.8 x 0.5mm 100 Pack Amazon product ASIN B01MYTWTE2



[Doylee4693]

Hey bud heres a link to the motor I bought. Its a direct replacement for our stove. Im just looking to make a few jumper wires and also I have a extention cord cut to provide a power source to what part im testing. That link you provided is expensive for just a few connectors and shipping... i can prolly get them at the local depot, but I need to know which one to buy. A link to one from the depot would be steller. Thanks for any help friends! https://pellethead.com/product/engl...or-1-rpm-counter-clockwise-gleason-avery-oem/



[JRemington]

Take the motor with you to Home Depot and check the connector right there.



[Ssyko]

PM me your address bud i'll send ya some



[Doylee4693]

PM me your address bud i'll send ya some

Awe man thats above and beyond. I appreciate you man, i’ll pm you now.
