superior wrt4826wh new to me planning and install

  • Active since 1995, Hearth.com is THE place on the internet for free information and advice about wood stoves, pellet stoves and other energy saving equipment.

    We strive to provide opinions, articles, discussions and history related to Hearth Products and in a more general sense, energy issues.

    We promote the EFFICIENT, RESPONSIBLE, CLEAN and SAFE use of all fuels, whether renewable or fossil.

WillZig

New Member
Nov 13, 2021
8
South jersey

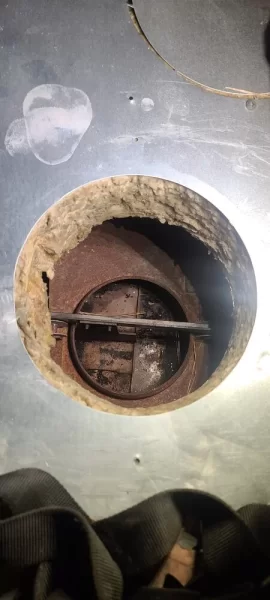

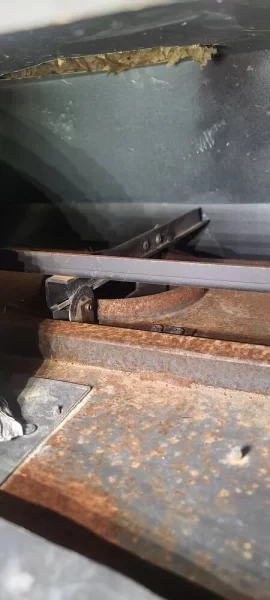

Hello I have just aquired a used superior wrt4826wh. I have read over the instruction manual but when in comes to the chimney starter collar/ adapter the instructions are pretty vague. When I look down inside the top of the unit I can see the outside shell with a 4 inch knock out on the back. The baffle / catalysts bypass has a slide bar that moves when you pull a knob. For the life of me nothing I find looks like it would hook up properly. I am beginning to think I am missing a part. I am going to go with a stainless triple wall 7" pipe straight run, fire stop, roof flashing . To 3 wall brackets and 1 roof. Connecting to the fire place is my only issue.

20211113_183708.jpg 20211113_183727.jpg


john26

Minister of Fire
Oct 27, 2008
705
Wildwood MO
In the owners manual Page 22 figure 30 shows the chimney adapter for this unit

  • Like
Reactions: WillZig

begreen

Mooderator
Staff member
Nov 18, 2005
91,319
South Puget Sound, WA

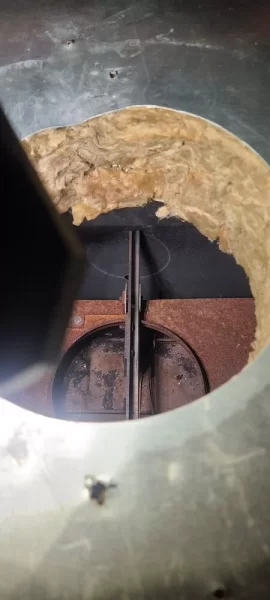

I can see what looks like screw holes where the old chimney pipe adapter was removed.

  • Like
Reactions: WillZig

WillZig

New Member
Nov 13, 2021
8
South jersey
In the owners manual Page 22 figure 30 shows the chimney adapter for this unit
I appreciate that I looked it up and nothing shows up listing . I am guessing it will have to have a slot in it for the bypass bar to go through. I can't find a picture of one installed. I was hoping maybe someone had a photo of a similar setup. I got the unit for free so getting the old part off them is not a option.


WillZig

New Member
Nov 13, 2021
8
South jersey
I can see what looks like screw holes where the old chimney pipe adapter was removed.
Yes unfortunately I can't see it or find one. I don't like the idea of a slot for the bypass if that is what they did. Always had wood stoves pretty straight forward installs and hook ups.


begreen

Mooderator
Staff member
Nov 18, 2005
91,319
South Puget Sound, WA

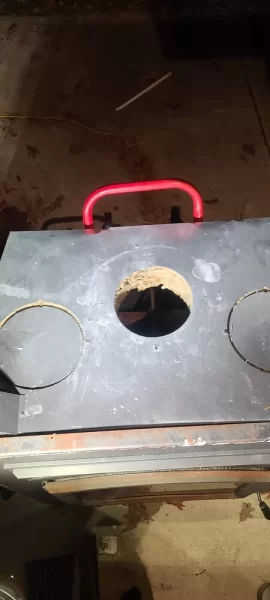

If the hole is 4" it is not the flue outlet. Can you post a picture of the whole top of the fireplace?


WillZig

New Member
Nov 13, 2021
8
South jersey

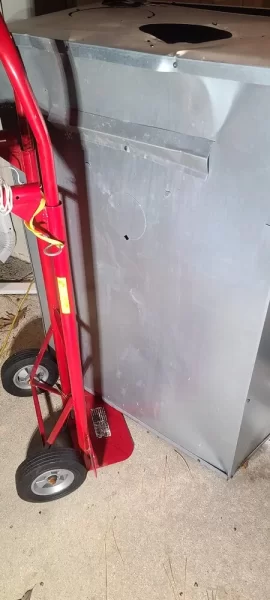

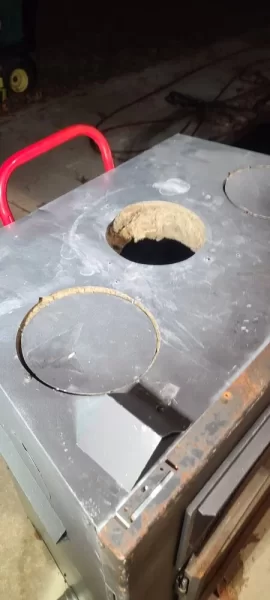

It is a 7" hole up top 4" on the back side just through sheet metal with no insolation. I believe the 4" could be for a vent but I am not using that. I just don't understand any connection design I would be comfortable with in my home. I can't find any photos of chimney connection looking at the top of fire box and adapter connections with this type of set up.


begreen

Mooderator
Staff member
Nov 18, 2005
91,319
South Puget Sound, WA
It looks like a factory start collar was removed and that this start collar had a stainless sleeve that went down past the insulation. I haven't had any luck finding this part. Has this fireplace ever been used? It's a bit rusty but it looks like new inside.


WillZig

New Member
Nov 13, 2021
8
South jersey
It looks like a factory start collar was removed and that this start collar had a stainless sleeve that went down past the insulation. Has this fireplace ever been used. It's a bit rusty but it looks like new.
Yes he said about one season but got a pellet insert because he didn't want to cut wood. I am going to clean it up and order a cat for it if I can find the adapter. So if that starter collar went past the insulation did it connect to the top of the cast iron fire box or hovered inside over top? I have never seen a zc hooked up but that rod in the middle baffles me. The sheet metal inside is clean with no soot.


begreen

Mooderator
Staff member
Nov 18, 2005
91,319
South Puget Sound, WA
The lack of any soot is puzzling. This fireplace is made by BIS. It's called the Panorama. I've searched for a while and haven't found the proper part.


WillZig

New Member
Nov 13, 2021
8
South jersey
The lack of any soot is puzzling. This fireplace is made by BIS. It's called the Panorama. I've searched for a while and haven't found the proper part.

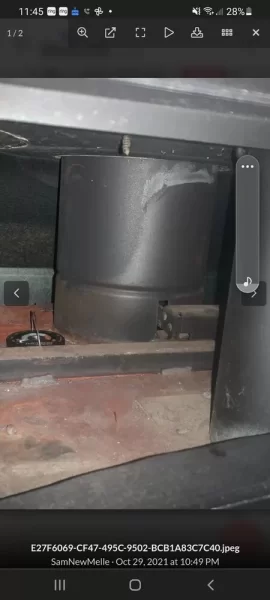

Thank you that helped . I think I will be able to find what I need. A different person on here posted this picture.
