Whitfield advantage ii-t

Ashman85 Posted By Ashman85, Feb 7, 2019 at 6:44 PM

  1. Ashman85

    Ashman85
    New Member 2.
    NULL


    Feb 7, 2019
    2
    0
    Loc:
    Delaware
    What should the voltage be going to exhaust motor. I got 120 to blower and like 88 volts to exhaust. I've checked over and over wire diagram. Thanks

  2. Ashman85

    Ashman85
    New Member 2.
    NULL


    Feb 7, 2019
    2
    0
    Loc:
    Delaware
  3. Stovensen

    Stovensen
    Minister of Fire 2.
    NULL


    Feb 1, 2010
    504
    111
    Loc:
    Denmark, EU

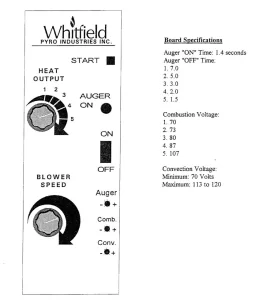

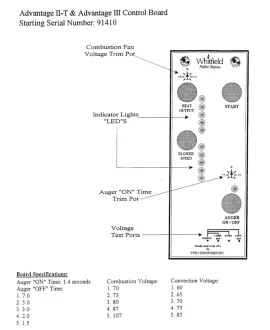

    Voltages for two diff. versions of the control board:

    Rotary board specs.jpg Touch pad board specs.jpg

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Ssyko likes this.
