Who here Makes Their Own Firewood related stuff?

Jags Posted By Jags, Feb 13, 2014 at 9:59 AM

Thread Status:
Not open for further replies.
  1. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,998
    6,558
    Loc:
    Northern IL
    In honor of not hi-jacking the current "Firewood making tools" I thought it might be fun to see who builds stuff for firewood related use. Splitters, carts, hitches, sawbucks, coal rake, whatever. Show us your custom built tools.
    I have a list that is about as long as my arm, but I want to see other peoples innovation.
    Some of you long timers are probably tired of seeing my splitter(s) and stuff, so I will start with a couple more obscure items:

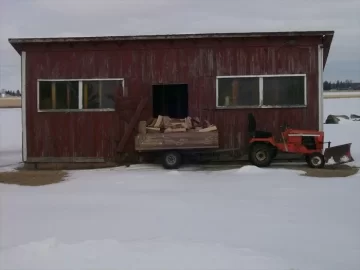

    Custom built trailer - specifically built to fit the double doors of my woodshed (not pictured) Note the "21" inch measurement between the two upright in back? It is to measure my longest acceptable split:

    Custom hitch for the mule (garden tractor):

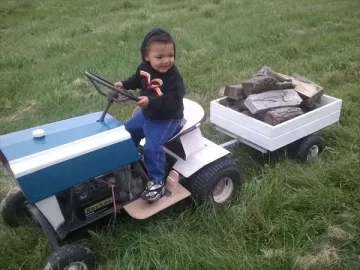

    Electric conversion of a lawn mower so the grandkids can get in the action:

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  2. razerface

    razerface
    Minister of Fire 2.
    NULL


    Jan 1, 2014
    639
    208
    Loc:
    Ohio
    been waiting to see the electric mower,,,,from the looks of the grass you should have let him keep the blades!

    Those little beggers sure are proud when they drive stuff! I like it.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Jags likes this.
  3. Flatbedford

    Flatbedford
    Minister of Fire 2.
    NULL


    Mar 17, 2009
    5,252
    1,266
    Loc:
    Las Vegas, NV
    May as well put up the splitters too. There are some some new folks here.

    I haven't built much. I have lots of ideas, but don't have the tools to build em. I have had the guys in the metal shop at my job modify some things for me.

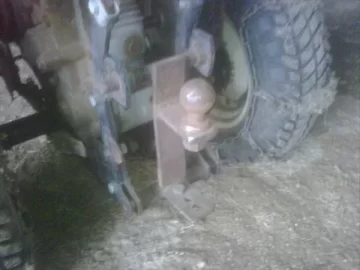

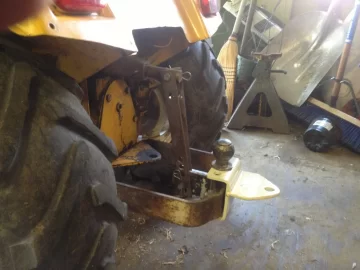

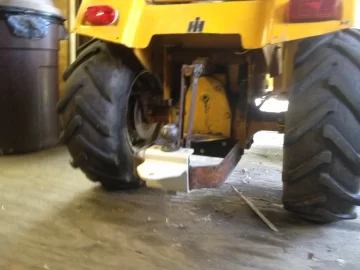

    I put together this combination trailer hitch for an IH Cub Cadet three point hitch out of some stuff I had and stuff I bought.
    IMG_0640.JPG IMG_0641.JPG
    It is height adjustable and can haul trailers with a ball hitch and GT attachments with the pin hitch.
    I have some other stuff planned....

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Jags likes this.
  4. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,998
    6,558
    Loc:
    Northern IL
    That is out in the back 40. Gets mowed once per mo. (and the grandsons were 2 and 3 at the time - no blades for them._g)

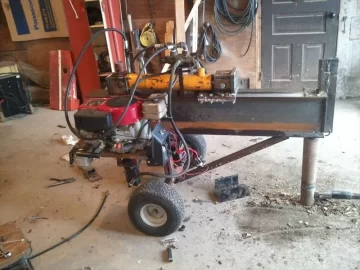

    Okay - the requested splitter pics.
    Big boy:

    And little boy (fast as heck too): Sloppy hoses were during the testing phase.
    Splitter build can be seen here:https://www.hearth.com/talk/threads/jags-splitter-build-pic-heavy.83540/

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  5. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,998
    6,558
    Loc:
    Northern IL
    My intent wasn't to clutter this thread with all MY crap. I wanted to see other peoples crap...er ....Masterpieces. ;lol;lol;lol

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  6. jatoxico

    jatoxico
    Minister of Fire 2.
    NULL


    Aug 8, 2011
    4,067
    1,354
    Loc:
    Long Island NY

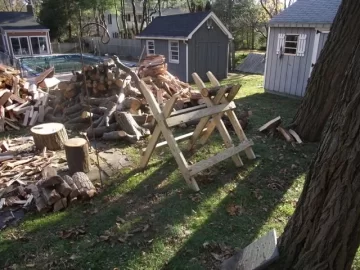

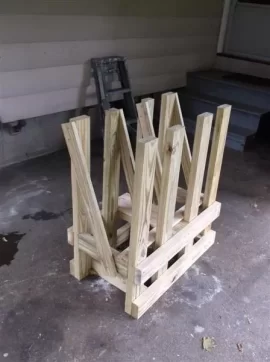

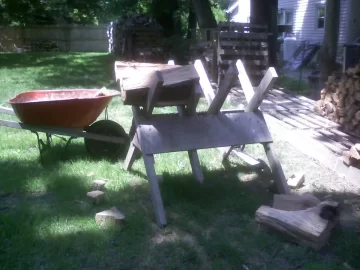

    Don't really have any particular metal fab skills but I built this here sawbuck.


    Attached Files:

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  7. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,998
    6,558
    Loc:
    Northern IL
    Nice. Thats what I am talking about.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  8. Flatbedford

    Flatbedford
    Minister of Fire 2.
    NULL


    Mar 17, 2009
    5,252
    1,266
    Loc:
    Las Vegas, NV
    I built one of those too!
    Wood stuff is easy.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Jags likes this.
  9. Flatbedford

    Flatbedford
    Minister of Fire 2.
    NULL


    Mar 17, 2009
    5,252
    1,266
    Loc:
    Las Vegas, NV

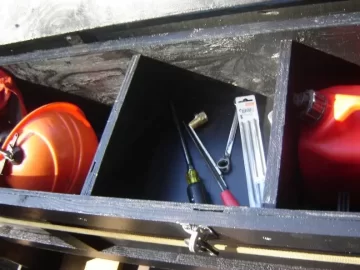

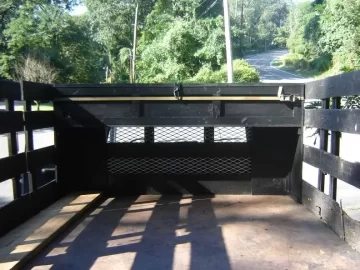

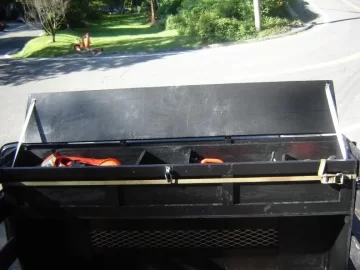

    I also built this box to carry my saws and tools on the old Ford Flatbed.
    truck box 5.jpg truck box 4.jpg truck box 2.jpg

    The truck has moved on to the next caretaker, but I still have the box (under about 2 feet of snow now).

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Jags likes this.
  10. Whitepine2

    Whitepine2
    Feeling the Heat 2.
    NULL


    Feb 15, 2011
    314
    79
    Loc:
    Southern Ma

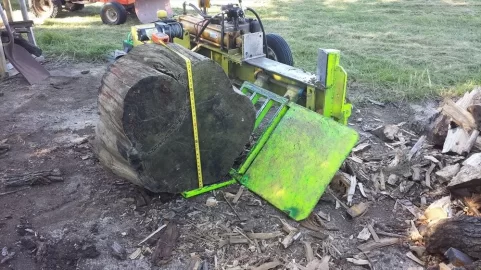

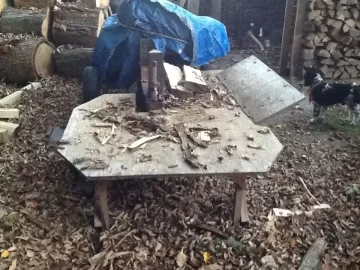

    Some stuff I made


    Attached Files:

  11. bigbarf48

    bigbarf48
    Minister of Fire 2.
    NULL


    Dec 21, 2012
    837
    382
    Loc:
    Stone Mountain GA
    VERY impressive set up. I like the custom wedge

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  12. bigbarf48

    bigbarf48
    Minister of Fire 2.
    NULL


    Dec 21, 2012
    837
    382
    Loc:
    Stone Mountain GA
    The extent of my fab abilities was a sawbuck ;lol

    And a postal crate chainsaw carrier, Ill get some pics up if I can find any

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  13. bigbarf48

    bigbarf48
    Minister of Fire 2.
    NULL


    Dec 21, 2012
    837
    382
    Loc:
    Stone Mountain GA
    Ive also been thinking about making a kydex belt sheath for my x7 so I can carry it around with me while bucking wood

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Jags likes this.
  14. WES999

    WES999
    Minister of Fire 2.
    NULL


    Jan 12, 2008
    1,042
    325
    Loc:
    Mass north of Boston
    Here is a couple of things,

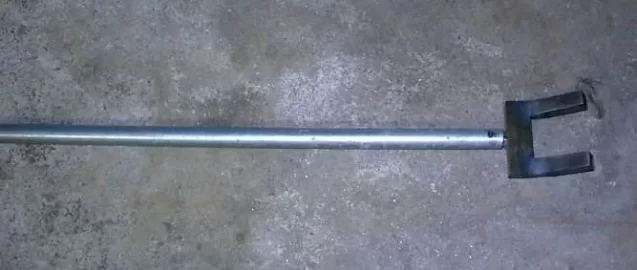

    Sawbuck and pallet breaking fork.
    DSCF0037 (Medium).JPG pallet fork.jpg

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    markz. and CenterTree like this.
  15. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,998
    6,558
    Loc:
    Northern IL
    I forgot about your pallet fork, Wes. Simply ingenious.

    And nice work Whitepine. How well does the processor work? I don't think I have had a straight stick of firewood in years but for those that do, that is the ticket for volume.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  16. Firewood Bandit

    Firewood Bandit
    Minister of Fire 2.
    NULL


    Jan 3, 2014
    527
    381
    Loc:
    Western WIsconsin
    I posted this pic before, but it fits here. A rebuilt can't hook.

    [​IMG]

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    TradEddie, markz. and Jags like this.
  17. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,998
    6,558
    Loc:
    Northern IL

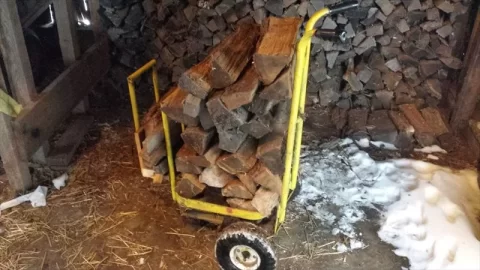

    How about a custom built firewood dolly:

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  18. Whitepine2

    Whitepine2
    Feeling the Heat 2.
    NULL


    Feb 15, 2011
    314
    79
    Loc:
    Southern Ma

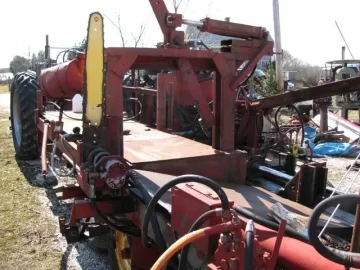

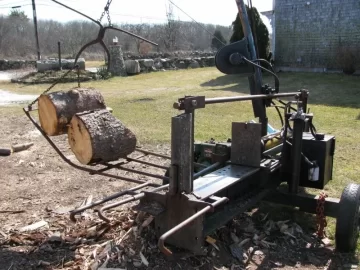

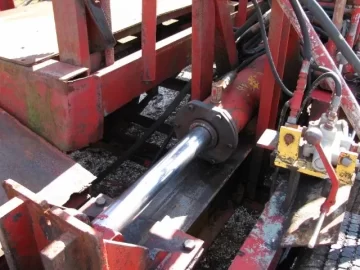

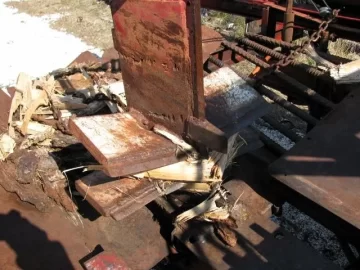

    Well there are not many straight trees around here ether. This is why I made this the way I did,if you look you will see the box like open-en with a piston atop well this moves via hydrolic piston under the table and the piston on top
    that you see captures the log which is pulled until it reaches desired length (3' piston under table) so can cut about 30" if need be. The nice thing is I can cut bowed,bent twisted ect. without too much of a problem SWEET. When ever you see a commercial store bought rig they always have stems the same diameter and of course just like an arrow and away they go O how nice it is but real life this is not the mean as you stated.I can cut 30" diameter not
    overly fast but not tired at end of the day ether. Only $800 in this unit as I used what I had it could be better with
    bigger pump and other changes. It is powered by an 80HP turbo Isuzu diesel from there PUP pickup truck so plenty of power I may put more work into it but it works well enough as is. I am going to make vid but need someone to help with that.

    Jags likes this.
  19. wahoowad

    wahoowad
    Minister of Fire 2.
    NULL


    Dec 19, 2005
    1,639
    133
    Loc:
    Virginia
    This a repost of a couple of firebox tools I made which have really, really worked out well for me. The heft and fit to my hand are great.

    [​IMG]

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Hills Hoard, Jags and Beardog like this.
  20. ClintonH

    ClintonH
    Member 2.
    NULL


    Jan 4, 2014
    77
    52
    Loc:
    NW OH
    Sometimes I brew my own beer to drink by the fire. That counts, right?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Ashful, mickire, billb3 and 3 others like this.
  21. BobUrban

    BobUrban
    Minister of Fire 2.
    NULL


    Jul 24, 2010
    1,933
    1,140
    Loc:
    Central Michigan

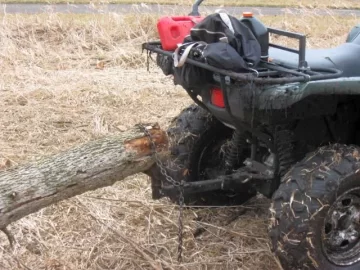

    I fabbed up this reese hitch and this thing I call my log dog - a single log skidder for my Griz. Just notch the log with my saw and set it onto the angle. If I can lift the one end the Griz can tow it to my work deck. I also fabbed up a hitch that fits into the receiver with ball, hook and tab for pin mounts. My stove tools have been on here many times as well.


    Attached Files:

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Jags likes this.
  22. infinitymike

    infinitymike
    Minister of Fire 2.
    NULL


    Aug 23, 2011
    1,835
    591
    Loc:
    Long Island, NY

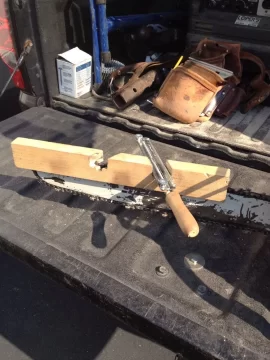

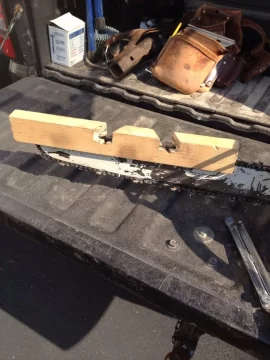

    Blade sharpening guide

    image.jpg image.jpg


    I also made a hookaroon from an old axe I had laying around. I took the right angle grinder and cut the blade into a hook. I don't have a pic It's outside in the snow



    Out feed table


    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  23. infinitymike

    infinitymike
    Minister of Fire 2.
    NULL


    Aug 23, 2011
    1,835
    591
    Loc:
    Long Island, NY

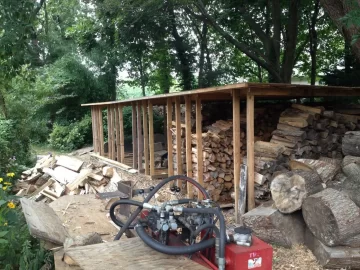

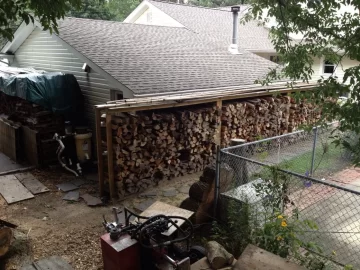

    Do these covered wood racks count?
    image.jpg image.jpg

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    7acres, jaychino415 and Jags like this.
  24. infinitymike

    infinitymike
    Minister of Fire 2.
    NULL


    Aug 23, 2011
    1,835
    591
    Loc:
    Long Island, NY

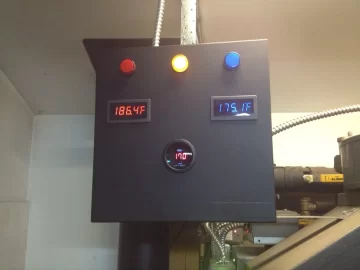

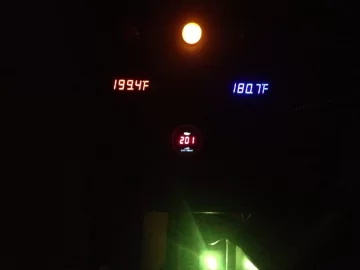

    How about a box that monitors the burning of firewood?
    The three lights tell me which zone is on. Then I have supply water temp and return temp and the bottom gauge is the gasification temp Have to multiply by 10


    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  25. Jags

    Jags
    Moderate Moderator 2.
    NULL

    Staff Member

    Aug 2, 2006
    17,998
    6,558
    Loc:
    Northern IL
    Very cool stuff by all. Keep it coming.
