How to connect a DVL clean out T to an insulated liner

[Nuggsy]

I am in the process of installing a Morso 6140 vented out the back through a masonry chimney. The chimney is in the center of the house and I am not sure of the clearance on the backside ( I know for sure it is at least 7in ) so I plan to use the DVL clean out T. The chimney is lined with the insulated liner from Rockford.

The DVL- t fits tightly onto the stove without an appliance adapter but I cannot find an answer on how to connect the DVL to the liner. I've already called Rockford who recommended a universal adapter but it doesn't look like that will attach to the DVL. I've called Duravent customer support but they haven't called me back.

Thank you in advance for any guidance.

Stove

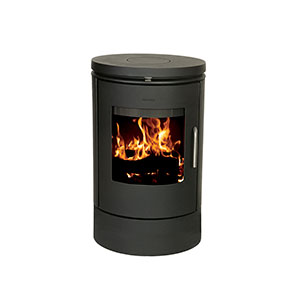

Morsø 6140 B with low base

Well-designed classic wood stove with beautiful curves

morsoe.com

DVL T

DuraVent DVL-T DVL Double-Wall Black Tee with Clean-Out Cap

The DuraVent DVL-T DVL Double-Wall Black Tee with Clean-Out Cap from DuraVent provides a premium product for use with the DVL chimney system. This double-wall black tee with clean-out cap installs with rear exit appliances and appliances requiring a barometric damper.DVL offers a double-wall...

www.fireplacesdirect.com

Chimney Liner

Pre-Insulated Chimney Liner Kit, Flexible Stainless Steel

Build Your Own Kit Rock-Flex Pre-Insulated Stainless Steel Chimney Liner & Components Kit Applications: Installed in a masonry chimney venting Wood, Pellet, Gas, Oil, and Coal burning appliances How this page works: Click "Customize" below to start building your liner kit Select Rock-Flex...

www.rockfordchimneysupply.com



[begreen]

A standard appliance adapter like they suggested should work. It would insert into the DVL tee's inner liner which is 6" ID. If too snug, crimp the end of the appliance adapter.



[Nuggsy]

Thank you for the response. I can't see how the various adapters would work with this set up?.

This is the part he showed me: https://www.rockfordchimneysupply.c...himney-liner-vertical-appliance-connector.php

But I don't see a way to attach it. The DVL screw holes do not go through the inner pipe.

I looked at the DVL appliance adapter as well but that will recreate the current female end on the DVL T.

DuraVent 6DVL-AD Black 6" Inner Diameter - DVL Stove Pipe - Double Wall - Adapter - VentingPipe.com

Buy the DuraVent 6DVL-AD Black Direct. Shop for the DuraVent 6DVL-AD Black 6" Inner Diameter - DVL Stove Pipe - Double Wall - Adapter and save.

www.ventingpipe.com

DVL states it "must be used with close clearance (cat ccp) connection installation." I'm assuming it is referring to this part:

6'' DuraBlack/DVL Chimney Adapter with Trim - 6DVL-ADC

6'' DVL Close Clearance Adapter - 8674 - 6'' DVL-DuraBlack Chimney Adapter- Find 6 inch double wall DVL adapters here along with expert advice and installation information - NorthlineExpress.com

www.northlineexpress.com

The installation instructions only discuss through-wall /ceiling with the DVL stove pipe. Nothing about liner connections. And just looking at the close clearance adapter, I can't see how to use that to connect the T to the liner.

What am I missing?



[begreen]

I would drill clearance holes through DVL and tap holes in the appliance adapter. But really, the DVL is unnecessary here, just skip getting the DVL and use a stainless tee with the liner band clamp on top.

Standard Tee with 10 in. Snout and Tee Cap

Zip Zip and you're done! Features a removable 10" long snout, a secure inside removable clamp connection and the quick connect band. Clean out cap included.

www.rockfordchimneysupply.com



[Nuggsy]

Thanks begreen but I can't meet clearances with that part (I already have it). They may have told me I can insulate/wrap it but it will be partly visible in the hearth. I didn't need zero clearance so the DVL meets the 6 in clearance I wanted for the back.

So now, I'm posting my own answer here in case anyone reads this in the future. The DuraVent tech support finally called me back. She was super helpful. Essentially there is no adapter that will work to connect the DVL to the insulated liner. The air holes between the double layers would be left open and you'd have to screw through the inner layer. She recommended the insulated T with the universal adapter that Rockford mentioned.

6" DuraLiner Round Tee with Round Branch with Cap - 6DLR-T

6'' DuraLiner Round Tee with Round Branch with Cap - 4667 - 4667 - Provides connection between masonry wall thimble or stove connector pipe to round DuraLiner.Double-wall factory-insulated relinerListed to UL 1777 (file MH14420)Canadian Listed to UL - Nor

www.northlineexpress.com



[bholler]

Thanks begreen but I can't meet clearances with that part (I already have it). They may have told me I can insulate/wrap it but it will be partly visible in the hearth. I didn't need zero clearance so the DVL meets the 6 in clearance I wanted for the back.

So now, I'm posting my own answer here in case anyone reads this in the future. The DuraVent tech support finally called me back. She was super helpful. Essentially there is no adapter that will work to connect the DVL to the insulated liner. The air holes between the double layers would be left open and you'd have to screw through the inner layer. She recommended the insulated T with the universal adapter that Rockford mentioned.

6" DuraLiner Round Tee with Round Branch with Cap - 6DLR-T

6'' DuraLiner Round Tee with Round Branch with Cap - 4667 - 4667 - Provides connection between masonry wall thimble or stove connector pipe to round DuraLiner.Double-wall factory-insulated relinerListed to UL 1777 (file MH14420)Canadian Listed to UL - Nor

www.northlineexpress.com

What clearances can't you meet? Is the tee going to be inside a fireplace? Some pics would help



[quartermeter]

Thanks begreen but I can't meet clearances with that part (I already have it). They may have told me I can insulate/wrap it but it will be partly visible in the hearth. I didn't need zero clearance so the DVL meets the 6 in clearance I wanted for the back.

So now, I'm posting my own answer here in case anyone reads this in the future. The DuraVent tech support finally called me back. She was super helpful. Essentially there is no adapter that will work to connect the DVL to the insulated liner. The air holes between the double layers would be left open and you'd have to screw through the inner layer. She recommended the insulated T with the universal adapter that Rockford mentioned.

6" DuraLiner Round Tee with Round Branch with Cap - 6DLR-T

6'' DuraLiner Round Tee with Round Branch with Cap - 4667 - 4667 - Provides connection between masonry wall thimble or stove connector pipe to round DuraLiner.Double-wall factory-insulated relinerListed to UL 1777 (file MH14420)Canadian Listed to UL - Nor

www.northlineexpress.com

How would you get that in your chimney if your team is already built?
