    Hello all,

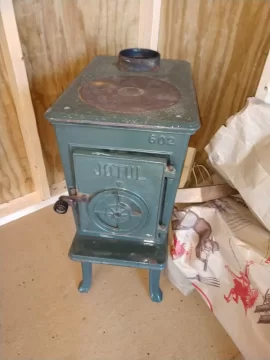

    I picked this up a month or so ago, and I'm starting to get it prepped to install in my small shop. I have reviewed tons of old posts for info. All of it awesome and much appreciated. Please forgive me if this may be redundant to some.

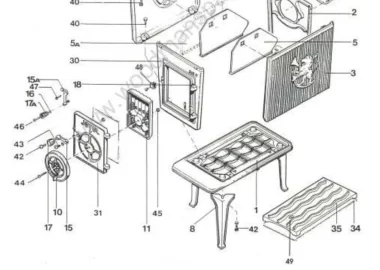

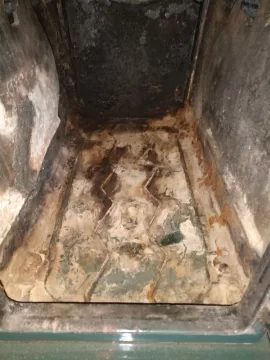

    1. Am I correct in assuming I'm missing a bottom plate? schematic shows another plate.
    2. Looking for recommendations for adding back plate insulation. What have people had luck with? I'd like to possible use fire brick.
    3. Is there a way to do a 'lazy man's rebuild" by simply sealing inside seams without taking it apart? Furnace cement possibly?

    Cheers guys!
    Ken


    Attached Files:

  2. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,577
    12,712
    Loc:
    South Puget Sound, WA
    Yes, it's missing the bottom plate. Try to locate one from a scrapped 602. In a pinch you could make a bed out of firebrick, but at a loss of firebox capacity. I added a rear burnplate by making a cardboad template, then having a friend plasma cut one out of some 3/16" steel. I bolted it to the back with four 10-24 screws using a nut in between the plate and stove back to create an air space. This definitely reduced the heat on the back which is a common place for cracking if the stove overfires.

    Rebuilding these stoves is super simple. There is no reason not to do it right. It took me about 2.5 hrs and that included drilling out and retapping a couple broken bolts.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Kman2478 likes this.
  3. Kman2478

    Kman2478
    New Member 2.
    NULL


    Jun 15, 2019
    5
    2
    Loc:
    Cape Neddick,Maine
    Did you still and tap your backplate to the back of the stove, or just lean it in there?

  4. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,577
    12,712
    Loc:
    South Puget Sound, WA
    I drilled clearance holes in the back for the 10-24 screws and thru-bolted with another nut on the outside to hold the shield firmly in place.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
    Kman2478 likes this.
  5. mass_burner

    mass_burner
    Minister of Fire 2.
    NULL


    Sep 24, 2013
    2,636
    458
    Loc:
    SE Mass
    bottom plate? do you mean the baffle at the top of the inside?

    Sent from my V11 using Tapatalk

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  6. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,577
    12,712
    Loc:
    South Puget Sound, WA
    There is a bottom plate with wavy lines cast into it at the base of the firebox.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  7. mass_burner

    mass_burner
    Minister of Fire 2.
    NULL


    Sep 24, 2013
    2,636
    458
    Loc:
    SE Mass
    yes, but i see it in the OP's stove. I have the same.

    Sent from my V11 using Tapatalk

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  8. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,577
    12,712
    Loc:
    South Puget Sound, WA
    The bottom (underneath the plate) also has those cast squiggles, but only 2 and some sort of mineral insulation between them. It looks like the insulation was scraped out on the OPs stove. The bottom plate that goes on top of this has 4 squiggles and looks more finished.

    Screen Shot 2019-08-03 at 1.35.56 PM.png

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  9. mass_burner

    mass_burner
    Minister of Fire 2.
    NULL


    Sep 24, 2013
    2,636
    458
    Loc:
    SE Mass
    oh, so mine is missing too. i only have the 2 wavy line pattern. isn't the bottom the coolest place in the stove. i put a layer of sand on the bottom when after cleaning it out.

    Sent from my V11 using Tapatalk

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  10. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,577
    12,712
    Loc:
    South Puget Sound, WA
    It should have more protection. The sand layer is recommended to go on top of the bottom plate.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  11. mass_burner

    mass_burner
    Minister of Fire 2.
    NULL


    Sep 24, 2013
    2,636
    458
    Loc:
    SE Mass
    odds are i won't find an actual replacement, don't want to put thick bricks in. i have some left over stone tile from bath remodel.

    Sent from my V11 using Tapatalk

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  12. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    77,577
    12,712
    Loc:
    South Puget Sound, WA
