Squire Wood Stove Insert

halfpint Posted By halfpint, Apr 20, 2018 at 2:03 PM

  1. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
    Hi I have a squire wood stove insert and in front of it slides in a a rectangle case that houses the motor and fan and it's 2 speed, I cannot find a replacement motor for this, can anyone please tell me what my next option is?
    This motor was a fasco 115v 60 hz type 63B1 7163-5246 and 7163-5568 was both on the motor. This bolts on to the cage. Everyone that has been cross referenced over has too long of a shaft, the shaft on mine is maybe 1/4", Any advise would be greatfull Thanks

  2. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    72,083
    10,670
    Loc:
    South Puget Sound, WA
    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  3. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
    No i'm sorry but they don't, I have called them and regal Beloit, Fasco, Electric Motor Warehouse. Am I allowed to post pictures of it in here?

  4. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    72,083
    10,670
    Loc:
    South Puget Sound, WA
    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  5. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
    Top plate is 13 7/8 x 10, exposed shaft is 1/4, cross top of motor is 3 1/2 x 1 7/8 tall, 2" bolts x 4, cage with hole is 10 x 10, full cage that slide under stove is 14 3/4 x 11 1/2, motor dimension around is 10 1/2, hope this all helps, we so need this. Under the stove is the opening that has metal glides that this entire housing slides on too, The shaft that holds the fan has one flat side on it. If I left anything out, please let me know. I will also upload pic of stove.


    Attached Files:

  6. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
    This is the Stove Squire wood stove insert, also the motor bolts to the bottom of the cage


    Attached Files:

  7. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
    This motor printing


    Attached Files:

  8. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    72,083
    10,670
    Loc:
    South Puget Sound, WA
    Are you sure your shaft is 1/4" long? It looks more like 1/2" Fasco lists the D534 as the replacement, but the shaft is a little longer (1"). Would it still work? Could the shaft be cut down if too long?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  9. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
    Very possibly it could be 1/2, and yes I think it can be machined down, that is the closest thing so far. One of the other places also mentioned that to me but I was only thinking that the shaft was still to long. We may very well try that one. Thank you for your help. Will let you know if it works,

  10. fbelec

    fbelec
    Minister of Fire 2.
    NULL


    Nov 23, 2005
    2,431
    150
    Loc:
    Massachusetts
    bring the motor to a electric motor guy he'll get you the exact fit of something that you will be able to use in place. and i wouldn't be surprised if it were cheaper. where are you located?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  11. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
    I found one on ebay that might work that wasn't to expensive brand new 30.00. If it is a little long we can have it shortened i believe. We live in Owensville, Indiiana, and checking with places around no one had an answer.

  12. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
    Well I got that motor and ours is 1/2 inch, but the motor is too tall. Our is 1 7/8 tall, and the one you mentioned to me is 2 1/2 tall, The shaft we could have worked on but we can't on the height. Any more suggestions? I'm gonna try to send this one back. His shaft on the motor he sent me is 1 inch.

  13. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    72,083
    10,670
    Loc:
    South Puget Sound, WA
    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  14. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
    Talked to Grainger, and they only have 2 3/16 heights and they are only single speed. And McMaster-car has nothing, but ty for links

  15. Andyman

    Andyman
    New Member 2.
    NULL


    Mar 10, 2018
    23
    5
    Loc:
    Idaho Falls, ID

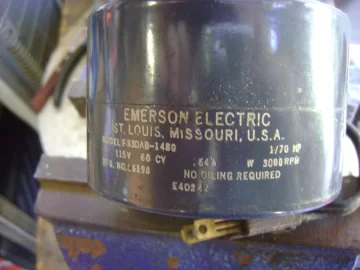

    try Emerson electric. attached is a motor from an old range vent hood, looks similar.

    DSC02710.JPG DSC02707.JPG DSC02711.JPG


    Attached Files:

  16. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
  17. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    72,083
    10,670
    Loc:
    South Puget Sound, WA
    Have you asked a electric motor shop about rebuilding the motor?

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  18. halfpint

    halfpint
    New Member 2.
    NULL


    Apr 20, 2018
    11
    0
    Loc:
    united states
    No it is a sealed motor.

  19. begreen

    begreen
    Mooderator 2.
    NULL

    Staff Member

    Nov 18, 2005
    72,083
    10,670
    Loc:
    South Puget Sound, WA
    Someone put it together, it can be taken apart. If it were my motor that's what I'd be doing or I'd be looking at redesigning to accommodate what is available in current stock.

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
  20. fbelec

    fbelec
    Minister of Fire 2.
    NULL


    Nov 23, 2005
    2,431
    150
    Loc:
    Massachusetts
    most guys won't touch a small motor like that it would cost way to much to rebuild. if your in a motor shop they will find you a replacement.

    my exp with bath fans and electric heater fans

    Stop hovering to collapse... Click to collapse... Hover to expand... Click to expand...
