Attaching Insert to Liner

[poloboy]

Hi All,

I am about to install my just delivered Osburn 2700 Matrix insert! The insulated liner has also arrived, the chimney is cleaned and prepared(damper is out!). I have a pretty straight shot into the insert so everything is lining up well. The difficulty I am foreseeing is attaching the liner to the insert. I have very minimal vertical clearance (~1.5") between the stove and the lentil. So getting to the 3 screws/brackets on the stovetop to secure the liner might be exceedingly difficult. Maybe i get lucky and can get them as i push the stove back. I am in the HVAC industry so I have sheet metal experience and tools that will hopefully make this reach.

I did get the insert adapter with the liner but i also saw this system in the manual which looks like it could save me if i can't reach the screws.


Unfortunately, i can't find this Liner Fastening system or any similar product anywhere! Can someone help me find this or explain how they successfully attached their liner in situations with low clearances?

Thanks trying to avoid that moment of frustration when i am oh so close to a full install! Hopefully, all this worry is for naught as i can get a clean install but i'd rather have a backup plan as i wrestle this thing into position.

Thanks



[begreen]

Like this?

Drolet Liner Fixation System - AC02006

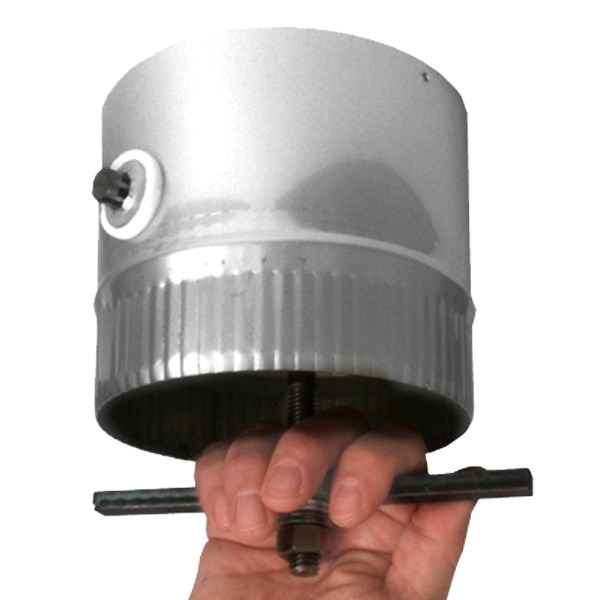

Drolet Liner Fixation System - AC02006 Pulling liner from inside a Drolet insert is a lot easier than it would be otherwise when you use a Drolet Liner Fixation System. The liner remains in place once you've pulled it through and once installation is complete due to the system's unique design.Some

www.efireplacestore.com



[poloboy]

Yes! I knew this forum would come through! You guys have been a wealth of information. Looks like Osburn has the same exact item as well. I just could not for the life of me find the correct keyword on the search... 'fixation system' instead of attachment or fastener. I should've gotten out the thesaurus!



[Riteway]

Yes! I knew this forum would come through! You guys have been a wealth of information. Looks like Osburn has the same exact item as well. I just could not for the life of me find the correct keyword on the search... 'fixation system' instead of attachment or fastener. I should've gotten out the thesaurus!

Osburn and Drolet are made by the same company (SBI), so the part should be identical between the two models. I used that fastener for my Drolet insert install...worth every penny.



[Solarguy3500]

The SBI website for Osburn stoves calls it the Hookup Liner System. As mentioned, I would think it is the exact same part as listed for Drolet.

Adapters

www.osburn-mfg.com

Scroll down a little more than halfway on that page and you should see it. Part number is AC02006



[Carl_Bunyon]

Like this?

Drolet Liner Fixation System - AC02006

Drolet Liner Fixation System - AC02006 Pulling liner from inside a Drolet insert is a lot easier than it would be otherwise when you use a Drolet Liner Fixation System. The liner remains in place once you've pulled it through and once installation is complete due to the system's unique design.Some

www.efireplacestore.com

Can you still clean the liner thru the insert if you use the attachment tool?



[vbu]

Can you still clean the liner thru the insert if you use the attachment tool?

With a sooteater, yes you can.



[Gary134]

Hi All,

I am about to install my just delivered Osburn 2700 Matrix insert! The insulated liner has also arrived, the chimney is cleaned and prepared(damper is out!). I have a pretty straight shot into the insert so everything is lining up well. The difficulty I am foreseeing is attaching the liner to the insert. I have very minimal vertical clearance (~1.5") between the stove and the lentil. So getting to the 3 screws/brackets on the stovetop to secure the liner might be exceedingly difficult. Maybe i get lucky and can get them as i push the stove back. I am in the HVAC industry so I have sheet metal experience and tools that will hopefully make this reach.

I did get the insert adapter with the liner but i also saw this system in the manual which looks like it could save me if i can't reach the screws.
View attachment 287689

Unfortunately, i can't find this Liner Fastening system or any similar product anywhere! Can someone help me find this or explain how they successfully attached their liner in situations with low clearances?

Thanks trying to avoid that moment of frustration when i am oh so close to a full install! Hopefully, all this worry is for naught as i can get a clean install but i'd rather have a backup plan as i wrestle this thing into position.

Thanks

Update us to your thoughts on the 2700 when you get it up and running. I have one on backorder now.
