VC 1977 Vigilant Misc Part Identification

[neverstop]

just purchased a house with a Vermont castings 1977 stamped vigilant wood burning stove. From what I can tell its in working order. Previous owner used it.

Seals seam to be good (dollar test), no seam leaks i can find. I do see a small gap between the flue and collar that connects the pipe to the stove, but it looks to be due to the crimping.

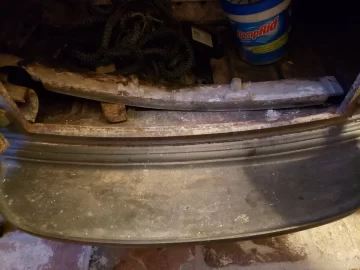

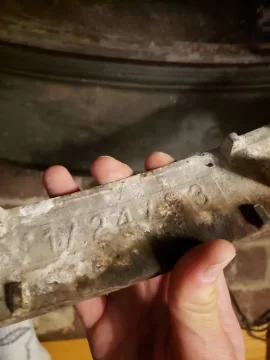

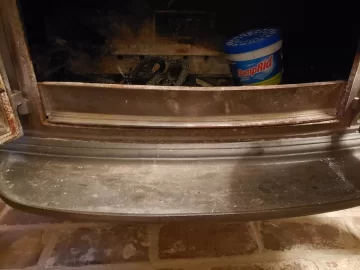

There are 2 parts that I can't seem to figure out where they go (images attached). One looks like a handle of some sort, and the other looks like it should fit in the front of the stove as pictured. However, it interferes with the doors closing/sealing on the stove in that position. This piece is stamped 11/24/83.

Thanks for the help!



[DAKSY]

You have the "Fettle" &it goes where you have it placed.
It may be a tad distorted after years of use, causing interference
with the doors...
The smallr part is a "Griddle Quadrant" & attaches underneath the griddle on the stove top.
There should be two of them.

Vermont Castings Vigilant 1400 Coal Stove Replacement Parts - Free Shipping on orders over $49!

Replacement spare parts for Vermont Castings Vigilant 1400 Coal Stoves.

www.stove-parts-unlimited.com



[neverstop]

You have the "Fettle" &it goes where you have it placed.
It may be a tad distorted after years of use, causing interference
with the doors...
The smallr part is a "Griddle Quadrant" & attaches underneath the griddle on the stove top.
There should be two of them.

Vermont Castings Vigilant 1400 Coal Stove Replacement Parts - Free Shipping on orders over $49!

Replacement spare parts for Vermont Castings Vigilant 1400 Coal Stoves.

www.stove-parts-unlimited.com

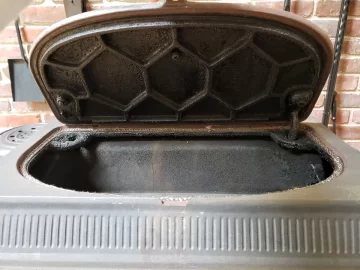

Thanks for getting back to me. I took a picture of the griddle, where is the quadrant suppose to attach?

Guna fire it up for the first time today. Finally cold enough to get a decent draft.



[DAKSY]

Look at the right side. There's your Griddle Quad.
There should also be one on the left.



[neverstop]

Look at the right side. There's your Griddle Quad.
There should also be one on the left.

Oh, is the purpose of the quadrant to prop griddle open?



[DAKSY]

Oh, is the purpose of the quadrant to prop griddle open?

I don't think so. I believe it's to make sure the griddle
stays in position when it's opened & closed...



[marco nunes]

Yes so it works like a hinge for your top loading door.



[neverstop]

Yes so it works like a hinge for your top loading door.

Yes just realized that. Only allows the door to be fully open and stay open when the damper is open. If damper is closed you can't fully open the door.

1 side has the bolt sheered off so thats why the previous owner must not have installed it.

Thanks for the help!



[ctyankee]

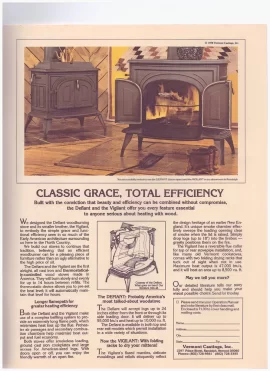

fyi here's a magazine ad



[neverstop]

fyi here's a magazine adView attachment 265472

That's a cool ad. Out dates me by a couple of years.

Is it possible to buy a replacement fettle and griddle still for these?



[DAKSY]

Replacement stove parts | Woodman's Parts Plus | Stove Gas Wood Stove Parts

Woodman's Parts Plus offers over 20,000 in stock parts for your wood, coal, gas, oil or pellet unit, as well as barbecues and outdoor power equipment. Over 400 old and current manufacturers, with unique parts and patterns.

www.woodmanspartsplus.com



[rwh63]

don't need a new griddle. just work on removing the broken bolt shaft, or carefully drill it out.



[neverstop]

don't need a new griddle. just work on removing the broken bolt shaft, or carefully drill it out.

the shaft is flush with the rivet like feature on the griddle, so i'd need to drill it.
